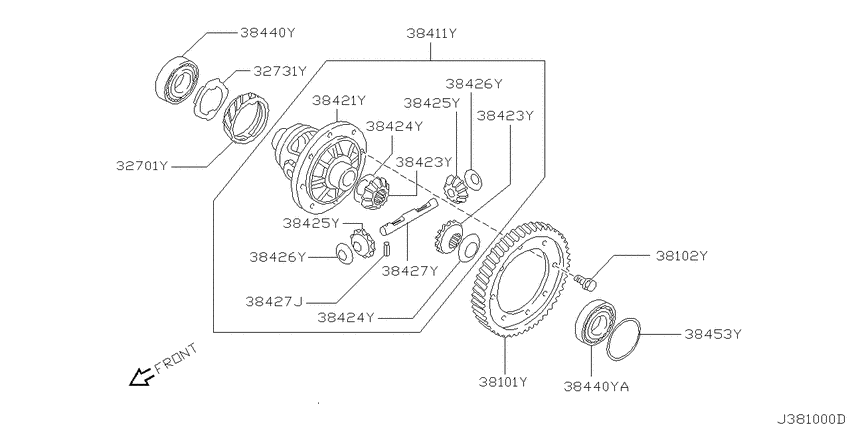

Front final drive (2000-10-01 ~ 2001-10-01; V.QG15DE.MT +QG18DE.MT) Diagram Nissan WINGROAD/AD/EXPERT
- Year
- 2002 - 2012
- Sales region
- Japan
- Engine
- QG15DE
- drive
- 2WD
- transmission
- MT
- grade
- GX
- body
- V
- specification
- BASIC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
32701Y
|
32701Y
32701-70E00
GEAR-DRIVE,SPEEDOMETER
9905--01 ~ 0010--01; *QG15DE.MT |
32701-70E00 |
— | ||
|
32701Y
|
32701Y
32701-D2100 Gear-Drive, Speedometer9905--01 ~ 0010--01; QG15DE.MT |
32701-D2100 |
US $19.44 |
||
|
32731Y
|
32731Y
38431-D2100 Stopper-Speedometer Drive Gear9905--01 ~ 0010--01; QG15DE.MT |
38431-D2100 |
US $4.75 |
||
|
38101Y
|
38101Y
38101-6J006 Gear-Final Drive9905--01 ~ 0010--01; QG15DE.MT |
38101-6J006 |
US $138.96 |
||
|
38101Y
|
38101Y
38101-6J016 Gear-Final Drive9905--01 ~ 0010--01; *QG15DE.MT |
38101-6J016 |
US $167.04 |
||
|
38102Y
|
38102Y
38102-31X60 Bolt-Drive Gear9905--01 ~ 0010--01; *QG15DE.MT |
38102-31X60 |
US $2.45 |
||
|
38102Y
|
38102Y
38102-6J000 Bolt-Drive Gear9905--01 ~ 0010--01; QG15DE.MT |
38102-6J000 |
US $2.45 |
||
|
38411Y
|
38411Y
38411-67Y01 Case Compl-Differential9905--01 ~ 0010--01; QG15DE.MT |
38411-67Y01 |
US $774.55 |
||
|
38421Y
|
38421Y
38421-D2100 Case-Differential9905--01 ~ 0010--01; QG15DE.MT |
38421-D2100 |
US $471.53 |
||
|
38423Y
|
38423Y
38423-D2100 Gear-Side9905--01 ~ 0010--01; QG15DE.MT |
38423-D2100 |
US $100.80 |
||
|
38423Y
|
38423Y
38423-D2100 Gear-Side9905--01 ~ 0010--01; QG15DE.MT |
38423-D2100 |
US $100.80 |
||
|
38424Y
|
38424Y
38424-D2111 Washer-Thrust, Side Gear9905--01 ~ 0010--01; QG15DE.MT +QG18DE.MT; T=0.75-0.80 ｾﾝﾀｸｼﾃ ｼﾖｳ |
38424-D2111 |
US $4.18 |
||
|
38424Y
|
38424Y
38424-D2112 Washer-Thrust, Side Gear9905--01 ~ 0010--01; QG15DE.MT +QG18DE.MT; T=0.80-0.85 ｾﾝﾀｸｼﾃ ｼﾖｳ |
38424-D2112 |
US $4.18 |
||
|
38424Y
|
38424Y
38424-D2113 Washer-Thrust, Side Gear9905--01 ~ 0010--01; QG15DE.MT +QG18DE.MT; T=0.85-0.90 ｾﾝﾀｸｼﾃ ｼﾖｳ |
38424-D2113 |
US $4.18 |
||
|
38424Y
|
38424Y
38424-D2114 Washer-Thrust, Side Gear9905--01 ~ 0010--01; QG15DE.MT +QG18DE.MT; T=0.90-0.95 ｾﾝﾀｸｼﾃ ｼﾖｳ |
38424-D2114 |
US $4.18 |
||
|
38424Y
|
38424Y
38424-D2115 Washer-Thrust, Side Gear9905--01 ~ 0010--01; QG15DE.MT; T=0.95-1.00 ｾﾝﾀｸｼﾃ ｼﾖｳ |
38424-D2115 |
US $4.18 |
||
|
38424Y
|
38424Y
38424-D2111 Washer-Thrust, Side Gear9905--01 ~ 0010--01; QG15DE.MT +QG18DE.MT; T=0.75-0.80 ｾﾝﾀｸｼﾃ ｼﾖｳ |
38424-D2111 |
US $4.18 |
||
|
38424Y
|
38424Y
38424-D2112 Washer-Thrust, Side Gear9905--01 ~ 0010--01; QG15DE.MT +QG18DE.MT; T=0.80-0.85 ｾﾝﾀｸｼﾃ ｼﾖｳ |
38424-D2112 |
US $4.18 |
||
|
38424Y
|
38424Y
38424-D2113 Washer-Thrust, Side Gear9905--01 ~ 0010--01; QG15DE.MT +QG18DE.MT; T=0.85-0.90 ｾﾝﾀｸｼﾃ ｼﾖｳ |
38424-D2113 |
US $4.18 |
||
|
38424Y
|
38424Y
38424-D2114 Washer-Thrust, Side Gear9905--01 ~ 0010--01; QG15DE.MT +QG18DE.MT; T=0.90-0.95 ｾﾝﾀｸｼﾃ ｼﾖｳ |
38424-D2114 |
US $4.18 |
||
|
38424Y
|
38424Y
38424-D2115 Washer-Thrust, Side Gear9905--01 ~ 0010--01; QG15DE.MT; T=0.95-1.00 ｾﾝﾀｸｼﾃ ｼﾖｳ |
38424-D2115 |
US $4.18 |
||
|
38425Y
|
38425Y
38425-U3000 Pinion-Mate9905--01 ~ 0010--01; QG15DE.MT |
38425-U3000 |
US $38.59 |
||
|
38425Y
|
38425Y
38425-U3000 Pinion-Mate9905--01 ~ 0010--01; QG15DE.MT |
38425-U3000 |
US $38.59 |
||
|
38426Y
|
38426Y
38426-31X10 Washer-Thrust, Pinion Mate9905--01 ~ 0010--01; QG15DE.MT |
38426-31X10 |
US $2.45 |
||
|
38426Y
|
38426Y
38426-31X10 Washer-Thrust, Pinion Mate9905--01 ~ 0010--01; QG15DE.MT |
38426-31X10 |
US $2.45 |
||
|
38427J
|
38427J
38428-P0100 Pin-Lock, Pinion Shaft9905--01 ~ 0010--01; QG15DE.MT +QG18DE.MT |
38428-P0100 |
from US $0.86 |
||
|
38427Y
|
38427Y
38427-D2101 Shaft-Pinion Mate9905--01 ~ 0001--01; QG15DE.MT |
38427-D2101 |
US $22.32 |
||
|
38427Y
|
38427Y
38427-D2102 Shaft-Pinion Mate0001--01 ~ 0010--01; QG15DE.MT |
38427-D2102 |
US $18.72 |
||
|
38440Y
|
38440Y
38440-6J001 Bearing-Differential Side9905--01 ~ 0010--01; QG15DE.MT |
38440-6J001 |
US $35.14 |
||
|
38440Y
|
38440Y
31408-31X08 Bearing-Differential Side9905--01 ~ 0010--01; *QG15DE.MT |
31408-31X08 |
from US $90.41 |
||
|
38440Y
|
38440Y
38440-6J001 Bearing-Differential Side9905--01 ~ 0010--01; QG15DE.MT |
38440-6J001 |
US $35.14 |
||
|
38440YA
|
38440YA
31408-31X08 Bearing-Differential Side9905--01 ~ 0010--01; *QG15DE.MT |
31408-31X08 |
from US $90.41 |
||
|
38440YA
|
38440YA
38440-6J001 Bearing-Differential Side9905--01 ~ 0010--01; QG15DE.MT |
38440-6J001 |
US $35.14 |
||
|
38453Y
|
38453Y
31439-31X00 Shim-Adjust, Side Bearing9905--01 ~ 0010--01; *QG15DE.MT; T=0.28,ｾﾝﾀｸｼﾃ ｼﾖｳ |
31439-31X00 |
US $7.20 |
||
|
38453Y
|
38453Y
31439-31X01 Shim-Adjust, Side Bearing9905--01 ~ 0010--01; *QG15DE.MT; T=0.32,ｾﾝﾀｸｼﾃ ｼﾖｳ |
31439-31X01 |
US $7.20 |
||
|
38453Y
|
38453Y
31439-31X02 Shim-Adjust, Side Bearing9905--01 ~ 0010--01; *QG15DE.MT; T=0.36,ｾﾝﾀｸｼﾃ ｼﾖｳ |
31439-31X02 |
US $7.20 |
||
|
38453Y
|
38453Y
31439-31X03 Shim-Adjust, Side Bearing9905--01 ~ 0010--01; *QG15DE.MT; T=0.40,ｾﾝﾀｸｼﾃ ｼﾖｳ |
31439-31X03 |
US $7.20 |
||
|
38453Y
|
38453Y
31439-31X04 Shim-Adjust, Side Bearing9905--01 ~ 0010--01; *QG15DE.MT; T=0.44,ｾﾝﾀｸｼﾃ ｼﾖｳ |
31439-31X04 |
US $7.20 |
||
|
38453Y
|
38453Y
31439-31X05 Shim-Adjust, Side Bearing9905--01 ~ 0010--01; *QG15DE.MT; T=0.48,ｾﾝﾀｸｼﾃ ｼﾖｳ |
31439-31X05 |
US $7.20 |
||
|
38453Y
|
38453Y
31439-31X06 Shim-Adjust, Side Bearing9905--01 ~ 0010--01; *QG15DE.MT; T=0.52 ｾﾝﾀｸｼﾃ ｼﾖｳ |
31439-31X06 |
US $7.20 |
||
|
38453Y
|
38453Y
31439-31X07 Shim-Adjust, Side Bearing9905--01 ~ 0010--01; *QG15DE.MT; T=0.56 ｾﾝﾀｸｼﾃ ｼﾖｳ |
31439-31X07 |
US $7.20 |
||
|
38453Y
|
38453Y
31439-31X08 Shim-Adjust, Side Bearing9905--01 ~ 0010--01; *QG15DE.MT; T=0.60 ｾﾝﾀｸｼﾃ ｼﾖｳ |
31439-31X08 |
US $7.20 |
||
|
38453Y
|
38453Y
31439-31X09 Shim-Adjust, Side Bearing9905--01 ~ 0010--01; *QG15DE.MT; T=0.64 ｾﾝﾀｸｼﾃ ｼﾖｳ |
31439-31X09 |
US $7.20 |
||
|
38453Y
|
38453Y
31439-31X10 Shim-Adjust, Side Bearing9905--01 ~ 0010--01; *QG15DE.MT; T=0.68 ｾﾝﾀｸｼﾃ ｼﾖｳ |
31439-31X10 |
US $7.20 |
||
|
38453Y
|
38453Y
31439-31X11 Shim-Adjust, Side Bearing9905--01 ~ 0010--01; *QG15DE.MT; T=0.72 ｾﾝﾀｸｼﾃ ｼﾖｳ |
31439-31X11 |
US $7.20 |
||
|
38453Y
|
38453Y
31439-31X12 Shim-Adjust, Side Bearing9905--01 ~ 0010--01; *QG15DE.MT; T=0.76 ｾﾝﾀｸｼﾃ ｼﾖｳ |
31439-31X12 |
US $7.20 |
||
|
38453Y
|
38453Y
31439-31X13 Shim-Adjust, Side Bearing9905--01 ~ 0010--01; *QG15DE.MT; T=0.80 ｾﾝﾀｸｼﾃ ｼﾖｳ |
31439-31X13 |
US $7.20 |
||
|
38453Y
|
38453Y
31439-31X14 Shim-Adjust, Side Bearing9905--01 ~ 0010--01; *QG15DE.MT; T=0.84 ｾﾝﾀｸｼﾃ ｼﾖｳ |
31439-31X14 |
US $7.20 |
||
|
38453Y
|
38453Y
31439-31X15 Shim-Adjust, Side Bearing9905--01 ~ 0010--01; *QG15DE.MT; T=0.88 ｾﾝﾀｸｼﾃ ｼﾖｳ |
31439-31X15 |
US $7.20 |
||
|
38453Y
|
38453Y
31439-31X16 Shim-Adjust, Side Bearing9905--01 ~ 0010--01; *QG15DE.MT; T=0.92 ｾﾝﾀｸｼﾃ ｼﾖｳ |
31439-31X16 |
US $7.20 |
||
|
38453Y
|
38453Y
31439-31X17 Shim-Adjust, Side Bearing9905--01 ~ 0010--01; *QG15DE.MT; T=0.96 ｾﾝﾀｸｼﾃ ｼﾖｳ |
31439-31X17 |
US $7.20 |
||
|
38453Y
|
38453Y
31439-31X18 Shim-Adjust, Side Bearing9905--01 ~ 0010--01; *QG15DE.MT; T=1.44 ｾﾝﾀｸｼﾃ ｼﾖｳ |
31439-31X18 |
US $7.20 |
||
|
38453Y
|
38453Y
38454-M8000 Shim-Adjust, Side Bearing9905--01 ~ 0010--01; QG15DE.MT; T=0.44,ｾﾝﾀｸｼﾃ ｼﾖｳ |
38454-M8000 |
from US $4.75 |
||
|
38453Y
|
38453Y
38454-M8001 Shim-Adjust, Side Bearing9905--01 ~ 0010--01; QG15DE.MT; T=0.48,ｾﾝﾀｸｼﾃ ｼﾖｳ |
38454-M8001 |
US $4.75 |
||
|
38453Y
|
38453Y
38454-M8002 Shim-Adjust, Side Bearing9905--01 ~ 0010--01; QG15DE.MT; T=0.52 ｾﾝﾀｸｼﾃ ｼﾖｳ |
38454-M8002 |
US $5.47 |
||
|
38453Y
|
38453Y
38454-M8003 Shim-Adjust, Side Bearing9905--01 ~ 0010--01; QG15DE.MT; T=0.56 ｾﾝﾀｸｼﾃ ｼﾖｳ |
38454-M8003 |
US $4.75 |
||
|
38453Y
|
38453Y
38454-M8004 Shim-Adjust, Side Bearing9905--01 ~ 0010--01; QG15DE.MT; T=0.60 ｾﾝﾀｸｼﾃ ｼﾖｳ |
38454-M8004 |
US $4.75 |
||
|
38453Y
|
38453Y
38454-M8005 Shim-Adjust, Side Bearing9905--01 ~ 0010--01; QG15DE.MT; T=0.64 ｾﾝﾀｸｼﾃ ｼﾖｳ |
38454-M8005 |
US $4.75 |
||
|
38453Y
|
38453Y
38454-M8006 Shim-Adjust, Side Bearing9905--01 ~ 0010--01; QG15DE.MT; T=0.68 ｾﾝﾀｸｼﾃ ｼﾖｳ |
38454-M8006 |
US $4.75 |
||
|
38453Y
|
38453Y
38454-M8007 Shim-Adjust, Side Bearing9905--01 ~ 0010--01; QG15DE.MT; T=0.72 ｾﾝﾀｸｼﾃ ｼﾖｳ |
38454-M8007 |
from US $4.75 |
||
|
38453Y
|
38453Y
38454-M8008 Shim-Adjust, Side Bearing9905--01 ~ 0010--01; QG15DE.MT; T=0.76 ｾﾝﾀｸｼﾃ ｼﾖｳ |
38454-M8008 |
US $4.75 |
||
|
38453Y
|
38453Y
38454-M8009 Shim-Adjust, Side Bearing9905--01 ~ 0010--01; QG15DE.MT; T=0.80 ｾﾝﾀｸｼﾃ ｼﾖｳ |
38454-M8009 |
US $4.75 |
||
|
38453Y
|
38453Y
38454-M8010 Shim-Adjust, Side Bearing9905--01 ~ 0010--01; QG15DE.MT; T=0.84 ｾﾝﾀｸｼﾃ ｼﾖｳ |
38454-M8010 |
US $6.34 |
||
|
38453Y
|
38453Y
38454-M8011 Shim-Adjust, Side Bearing9905--01 ~ 0010--01; QG15DE.MT; T=0.88 ｾﾝﾀｸｼﾃ ｼﾖｳ |
38454-M8011 |
US $6.34 |
