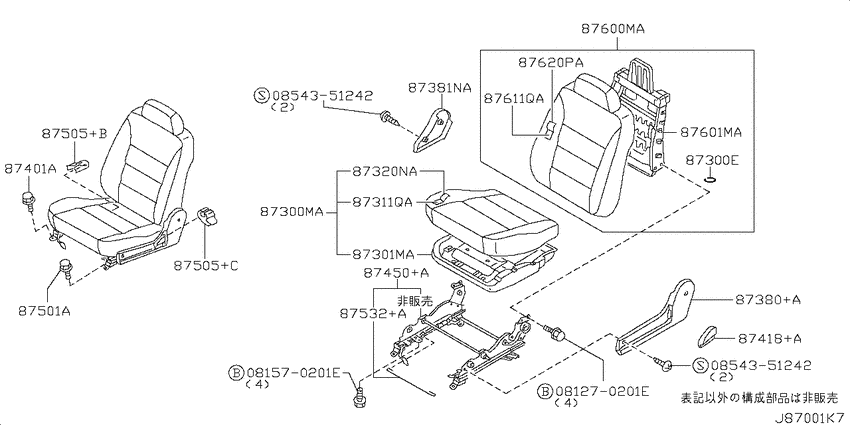

Front seat (2006-01-01 ~ ; LHシート; *V.(QG13DE+QG15DE+QG18DE).GX) Diagram Nissan WINGROAD/AD/EXPERT
- Year
- 2002 - 2012
- Sales region
- Japan
- Engine
- QG15DE
- drive
- 2WD
- transmission
- MT
- grade
- GX
- body
- V
- specification
- BASIC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
081270201E
|
081270201E
081270201E
Bolt-hexagon
|
081270201E |
— | ||
|
081570201E
|
081570201E
08157-0201E
ﾎﾞﾙﾄ
|
08157-0201E |
— | ||
|
0854351242
|
0854351242
0854351242 SCREWTAPPING |
0854351242 |
from US $1.83 |
||
|
0854351242
|
0854351242
0854351242 SCREWTAPPING |
0854351242 |
from US $1.83 |
||
|
87300E
|
87300E
8690132200 Clip0208--01 ~ 0211--01; #*V.(QG13DE+QG15DE+QG18DE+YD22DD).GX |
8690132200 |
from US $0.22 |
||
|
87300MA
|
87300MA
87350-WD205 Cushion Assy-Front Seat9905--01 ~ 0001--01; W.LE +V; [D105] |
87350-WD205 |
US $740.57 |
||
|
87300MA
|
87300MA
87350-WD210 Cushion Assy-Front Seat9906--01 ~ 0001--01; *V.VE; [D105] |
87350-WD210 |
US $740.57 |
||
|
87300MA
|
87300MA
87350-WD220 Cushion Assy-Front Seat9905--01 ~ 0001--01; *W.LE +*V; [D105] |
87350-WD220 |
US $740.57 |
||
|
87300MA
|
87300MA
87350-WE410 Cushion Assy-Front Seat0208--01 ~ 0310--01; #*V.(QG13DE+QG15DE+QG18DE+YD22DD).GX; [D105] |
87350-WE410 |
US $740.57 |
||
|
87300MA
|
87300MA
87350-WE420 Cushion Assy-Front Seat0208--01 ~ 0310--01; #*V.(QG13DE+QG15DE+QG18DE+YD22DD).GX; [D105] |
87350-WE420 |
US $740.57 |
||
|
87300MA
|
87300MA
87350-WE900 Cushion Assy-Front Seat0405--01 ~ 0512--01; V.(QG13DE+QG15DE+QG18DE).GX; [D105] |
87350-WE900 |
US $808.54 |
||
|
87300MA
|
87300MA
87350-WE910 Cushion Assy-Front Seat0512--01 ~ ; V.(QG13DE+QG15DE+QG18DE).GX; [D105] |
87350-WE910 |
US $808.54 |
||
|
87300MA
|
87300MA
87350-WE960 Cushion Assy-Front Seat0405--01 ~ 0512--01; *V.(QG13DE+QG15DE+QG18DE).GX; [D105] |
87350-WE960 |
US $808.54 |
||
|
87300MA
|
87300MA
87350-WE970 Cushion Assy-Front Seat0405--01 ~ 0512--01; *V.(QG13DE+QG15DE+QG18DE).GX; [D105] |
87350-WE970 |
US $808.54 |
||
|
87301MA
|
87301MA
87351-89900 Frame Assy-Front Seat Cushion9905--01 ~ 0001--01; W.LE +V |
87351-89900 |
US $244.80 |
||
|
87301MA
|
87301MA
87351-WD000 Frame Assy-Front Seat Cushion0211--01 ~ 0310--01; #*V.(QG13DE+QG15DE+QG18DE+YD22DD).GX |
87351-WD000 |
US $244.80 |
||
|
87311QA
|
87311QA
87361-WD000 Pad-Front Seat Cushion9905--01 ~ 0001--01; W.LE +V |
87361-WD000 |
US $191.52 |
||
|
87311QA
|
87311QA
87361-WE000 Pad-Front Seat Cushion0208--01 ~ 0211--01; #*V.(QG13DE+QG15DE+QG18DE+YD22DD).GX |
87361-WE000 |
US $227.52 |
||
|
87311QA
|
87311QA
87361-WE100 Pad-Front Seat Cushion0208--01 ~ 0310--01; #*V.(QG13DE+QG15DE+QG18DE+YD22DD).GX |
87361-WE100 |
US $208.80 |
||
|
87320NA
|
87320NA
87370-WD205 Trim Assy-Front Seat Cushion9905--01 ~ 0001--01; W.LE +V; [D105] |
87370-WD205 |
US $226.08 |
||
|
87320NA
|
87320NA
87370-WD210 Trim Assy-Front Seat Cushion9906--01 ~ 0001--01; *V.VE; [D105] |
87370-WD210 |
US $226.08 |
||
|
87320NA
|
87320NA
87370-WD220 Trim Assy-Front Seat Cushion9905--01 ~ 0001--01; *W.LE +*V; [D105] |
87370-WD220 |
US $226.08 |
||
|
87320NA
|
87320NA
87370-WE410 Trim Assy-Front Seat Cushion0208--01 ~ 0310--01; #*V.(QG13DE+QG15DE+QG18DE+YD22DD).GX; [D105] |
87370-WE410 |
US $226.08 |
||
|
87320NA
|
87320NA
87370-WE420 Trim Assy-Front Seat Cushion0208--01 ~ 0310--01; #*V.(QG13DE+QG15DE+QG18DE+YD22DD).GX; [D105] |
87370-WE420 |
US $226.08 |
||
|
87320NA
|
87320NA
87370-WE900 Trim Assy-Front Seat Cushion0405--01 ~ 0512--01; V.(QG13DE+QG15DE+QG18DE).GX; [D105] |
87370-WE900 |
US $402.14 |
||
|
87320NA
|
87320NA
87370-WE910 Trim Assy-Front Seat Cushion0512--01 ~ ; V.(QG13DE+QG15DE+QG18DE).GX; [D105] |
87370-WE910 |
US $402.14 |
||
|
87320NA
|
87320NA
87370-WE960 Trim Assy-Front Seat Cushion0405--01 ~ 0512--01; *V.(QG13DE+QG15DE+QG18DE).GX; [D105] |
87370-WE960 |
US $402.14 |
||
|
87320NA
|
87320NA
87370-WE970 Trim Assy-Front Seat Cushion0405--01 ~ 0512--01; *V.(QG13DE+QG15DE+QG18DE).GX; [D105] |
87370-WE970 |
US $402.14 |
||
|
87380+A
|
87380+A
87380-89901 Finisher Assy-Cushion, Front Seat Lh9905--01 ~ 0001--01; *W +*V |
87380-89901 |
US $25.78 |
||
|
87380+A
|
87380+A
87380-WE100 Finisher Assy-Cushion, Front Seat Lh0211--01 ~ 0310--01; #*V.(QG13DE+QG15DE+QG18DE+YD22DD).GX |
87380-WE100 |
US $25.78 |
||
|
87381NA
|
87381NA
87381-89901 Finisher-Cushion, Front Seat Inner Lh9905--01 ~ 0001--01; W.LE +V |
87381-89901 |
US $25.78 |
||
|
87381NA
|
87381NA
87381-WE100 Finisher-Cushion, Front Seat Inner Lh0211--01 ~ 0310--01; #*V.(QG13DE+QG15DE+QG18DE+YD22DD).GX |
87381-WE100 |
US $25.78 |
||
|
87381NA
|
87381NA
87381-WE700 Finisher-Cushion, Front Seat Inner Lh0405--01 ~ 0512--01; V.(QG13DE+QG15DE+QG18DE).GX |
87381-WE700 |
US $25.78 |
||
|
87401A
|
87401A
87850-VC000
Bolt
0503--01 ~ 0601--01; V.(QG13DE+QG15DE+QG18DE).GX |
87850-VC000 |
— | ||
| replacement | |||||
|
87401A
|
87401A
87850-VC00B Bolt0503--01 ~ 0601--01; V.(QG13DE+QG15DE+QG18DE).GX |
87850-VC00B |
from US $1.82 |
||
|
87401A
|
87401A
87850-VC00B Bolt0702--01 ~ ; V.(QG13DE+QG15DE+QG18DE).GX |
87850-VC00B |
from US $1.82 |
||
|
87401A
|
87401A
87850-WD000 Bolt9905--01 ~ 0001--01; W.LE +V |
87850-WD000 |
US $7.06 |
||
|
87418+A
|
87418+A
87468-89901 Knob-Reclining Device9905--01 ~ 0001--01; *W +*V |
87468-89901 |
US $8.35 |
||
|
87450+A
|
87450+A
87450-WD000 Adjuster Assy-Front Seat, Lh9905--01 ~ 0001--01; W.LE +V |
87450-WD000 |
US $318.60 |
||
|
87450+A
|
87450+A
87450WD002 Adjuster Assy-Front Seat, Lh9905--01 ~ 0001--01; *W +*V |
87450WD002 |
US $318.60 |
||
|
87450+A
|
87450+A
87450-WE100 Adjuster Assy-Front Seat, Lh0208--01 ~ 0310--01; #*V.(QG13DE+QG15DE+QG18DE+YD22DD).GX |
87450-WE100 |
US $318.60 |
||
|
87450+A
|
87450+A
87450-WE105 Adjuster Assy-Front Seat, Lh0211--01 ~ 0310--01; #*V.(QG13DE+QG15DE+QG18DE+YD22DD).GX |
87450-WE105 |
US $318.60 |
||
|
87501A
|
87501A
86899-50J00 Bolt0601--01 ~ ; V.(QG13DE+QG15DE+QG18DE).GX |
86899-50J00 |
US $3.06 |
||
|
87505+B
|
87505+B
87558-WD000 Cover-Seat Slide9905--01 ~ 0001--01; W.LE +V |
87558-WD000 |
US $9.65 |
||
|
87505+C
|
87505+C
87559-WD000 Cover-Seat Slide9905--01 ~ 0001--01; W.LE +V |
87559-WD000 |
US $9.65 |
||
|
87532+A
|
87532+A
87532-0W720 Wire-Release9905--01 ~ 0001--01; W.LE +V |
87532-0W720 |
US $5.33 |
||
|
87600MA
|
87600MA
87650-WD205 Back Assy-Front Seat9905--01 ~ 0001--01; W.LE +V; [D105] |
87650-WD205 |
US $740.57 |
||
|
87600MA
|
87600MA
87650-WD210 Back Assy-Front Seat9906--01 ~ 0001--01; *V.VE; [D105] |
87650-WD210 |
US $740.57 |
||
|
87600MA
|
87600MA
87650-WE410 Back Assy-Front Seat0208--01 ~ 0310--01; #*V.(QG13DE+QG15DE+QG18DE+YD22DD).GX; [D105] |
87650-WE410 |
US $740.57 |
||
|
87600MA
|
87600MA
87650-WE900 Back Assy-Front Seat0512--01 ~ ; *V.(QG13DE+QG15DE+QG18DE).GX; [D105] |
87650-WE900 |
US $808.54 |
||
|
87600MA
|
87600MA
87650-WE910 Back Assy-Front Seat0405--01 ~ 0512--01; V.(QG13DE+QG15DE+QG18DE).GX; [D105] |
87650-WE910 |
US $808.54 |
||
|
87600MA
|
87600MA
87650-WE960 Back Assy-Front Seat0405--01 ~ 0512--01; *V.(QG13DE+QG15DE+QG18DE).GX; [D105] |
87650-WE960 |
US $808.54 |
||
|
87601MA
|
87601MA
87601-89900 Frame Assy-Front Seat Back9906--01 ~ 0001--01; *V.VE |
87601-89900 |
US $205.92 |
||
|
87601MA
|
87601MA
87601-WD200 Frame Assy-Front Seat Back9905--01 ~ 0001--01; W.LE +V |
87601-WD200 |
US $187.20 |
||
|
87601MA
|
87601MA
87651-79903 Frame Assy-Front Seat Back9905--01 ~ 0001--01; *W +*V |
87651-79903 |
US $226.08 |
||
|
87601MA
|
87601MA
87651-WE100 Frame Assy-Front Seat Back0208--01 ~ 0210--01; #*V.(QG13DE+QG15DE+QG18DE+YD22DD).GX |
87651-WE100 |
US $294.53 |
||
|
87601MA
|
87601MA
87651-WE105 Frame Assy-Front Seat Back0208--01 ~ 0210--01; #*V.(QG13DE+QG15DE+QG18DE+YD22DD).GX |
87651-WE105 |
US $294.53 |
||
|
87601MA
|
87601MA
87651-WE110 Frame Assy-Front Seat Back0210--01 ~ 0310--01; #*V.(QG13DE+QG15DE+QG18DE+YD22DD).GX |
87651-WE110 |
US $246.24 |
||
|
87601MA
|
87601MA
87651-WE115 Frame Assy-Front Seat Back0210--01 ~ 0310--01; #*V.(QG13DE+QG15DE+QG18DE+YD22DD).GX |
87651-WE115 |
US $246.24 |
||
|
87611QA
|
87611QA
87661-WD000 Pad-Front Seat Back9906--01 ~ 0001--01; *V.VE |
87661-WD000 |
US $191.52 |
||
|
87611QA
|
87611QA
87661-WD007 Pad-Front Seat Back0208--01 ~ 0211--01; #*V.(QG13DE+QG15DE+QG18DE+YD22DD).GX |
87661-WD007 |
US $191.52 |
||
|
87611QA
|
87611QA
87661-WD200 ﾊﾟﾂﾄﾞ,ﾌﾛﾝﾄ ｼ-ﾄ ﾊﾞﾂｸ9905--01 ~ 0001--01; W.LE +V |
87661-WD200 |
US $191.52 |
||
|
87611QA
|
87611QA
87661-WD210 ﾊﾟﾂﾄﾞ,ﾌﾛﾝﾄ ｼ-ﾄ ﾊﾞﾂｸ0211--01 ~ 0310--01; "V.(QG13DE+QG15DE+QG18DE+YD22DD).GX |
87661-WD210 |
US $208.80 |
||
|
87611QA
|
87611QA
87661-WD220 ﾊﾟﾂﾄﾞ,ﾌﾛﾝﾄ ｼ-ﾄ ﾊﾞﾂｸ9905--01 ~ 0001--01; *W.LE +*V |
87661-WD220 |
US $191.52 |
||
|
87611QA
|
87611QA
87661-WE100 ﾊﾟﾂﾄﾞ,ﾌﾛﾝﾄ ｼ-ﾄ ﾊﾞﾂｸ0208--01 ~ 0211--01; #*V.(QG13DE+QG15DE+QG18DE+YD22DD).GX |
87661-WE100 |
US $249.12 |
||
|
87611QA
|
87611QA
87661-WE410 ﾊﾟﾂﾄﾞ,ﾌﾛﾝﾄ ｼ-ﾄ ﾊﾞﾂｸ0211--01 ~ 0310--01; #*V.(QG13DE+QG15DE+QG18DE+YD22DD).GX |
87661-WE410 |
US $208.80 |
||
|
87611QA
|
87611QA
87661-WE420 ﾊﾟﾂﾄﾞ,ﾌﾛﾝﾄ ｼ-ﾄ ﾊﾞﾂｸ0211--01 ~ 0310--01; #*V.(QG13DE+QG15DE+QG18DE+YD22DD).GX |
87661-WE420 |
US $208.80 |
||
|
87620PA
|
87620PA
87620-WD205 ﾄﾘﾑ ｱﾂｾﾝﾌﾞﾘ-,ﾌﾛﾝﾄ ｼ-ﾄ ﾊﾞﾂｸ9905--01 ~ 0001--01; W.LE +V; [D105] |
87620-WD205 |
US $226.08 |
||
|
87620PA
|
87620PA
87620-WD210 ﾄﾘﾑ ｱﾂｾﾝﾌﾞﾘ-,ﾌﾛﾝﾄ ｼ-ﾄ ﾊﾞﾂｸ9906--01 ~ 0001--01; *V.VE; [D105] |
87620-WD210 |
US $226.08 |
||
|
87620PA
|
87620PA
87620-WE910 ﾄﾘﾑ ｱﾂｾﾝﾌﾞﾘ-,ﾌﾛﾝﾄ ｼ-ﾄ ﾊﾞﾂｸ0405--01 ~ 0512--01; V.(QG13DE+QG15DE+QG18DE).GX; [D105] |
87620-WE910 |
US $402.14 |
||
|
87620PA
|
87620PA
87670-WD220 ﾄﾘﾑ ｱﾂｾﾝﾌﾞﾘ-,ﾌﾛﾝﾄ ｼ-ﾄ ﾊﾞﾂｸ9905--01 ~ 0001--01; *W.LE +*V; [D105] |
87670-WD220 |
US $226.08 |
||
|
87620PA
|
87620PA
87670-WE410 ﾄﾘﾑ ｱﾂｾﾝﾌﾞﾘ-,ﾌﾛﾝﾄ ｼ-ﾄ ﾊﾞﾂｸ0208--01 ~ 0310--01; #*V.(QG13DE+QG15DE+QG18DE+YD22DD).GX; [D105] |
87670-WE410 |
US $226.08 |
||
|
87620PA
|
87620PA
87670-WE420 ﾄﾘﾑ ｱﾂｾﾝﾌﾞﾘ-,ﾌﾛﾝﾄ ｼ-ﾄ ﾊﾞﾂｸ0208--01 ~ 0310--01; #*V.(QG13DE+QG15DE+QG18DE+YD22DD).GX; [D105] |
87670-WE420 |
US $226.08 |
||
|
87620PA
|
87620PA
87670-WE900 ﾄﾘﾑ ｱﾂｾﾝﾌﾞﾘ-,ﾌﾛﾝﾄ ｼ-ﾄ ﾊﾞﾂｸ0405--01 ~ 0512--01; *V.(QG13DE+QG15DE+QG18DE).GX; [D105] |
87670-WE900 |
US $402.14 |
||
|
87620PA
|
87620PA
87670-WE910 ﾄﾘﾑ ｱﾂｾﾝﾌﾞﾘ-,ﾌﾛﾝﾄ ｼ-ﾄ ﾊﾞﾂｸ0512--01 ~ ; V.(QG13DE+QG15DE+QG18DE).GX; [D105] |
87670-WE910 |
US $402.14 |
||
|
87620PA
|
87620PA
87670-WE920 ﾄﾘﾑ ｱﾂｾﾝﾌﾞﾘ-,ﾌﾛﾝﾄ ｼ-ﾄ ﾊﾞﾂｸ0405--01 ~ 0512--01; *V.(QG13DE+QG15DE+QG18DE).GX; [D105] |
87670-WE920 |
US $402.14 |
||
|
87620PA
|
87620PA
87670-WE960 ﾄﾘﾑ ｱﾂｾﾝﾌﾞﾘ-,ﾌﾛﾝﾄ ｼ-ﾄ ﾊﾞﾂｸ0405--01 ~ 0512--01; *V.(QG13DE+QG15DE+QG18DE).GX; [D105] |
87670-WE960 |
US $402.14 |
||
|
87620PA
|
87620PA
87670-WE970 ﾄﾘﾑ ｱﾂｾﾝﾌﾞﾘ-,ﾌﾛﾝﾄ ｼ-ﾄ ﾊﾞﾂｸ0405--01 ~ 0512--01; *V.(QG13DE+QG15DE+QG18DE).GX; [D105] |
87670-WE970 |
US $402.14 |
||
