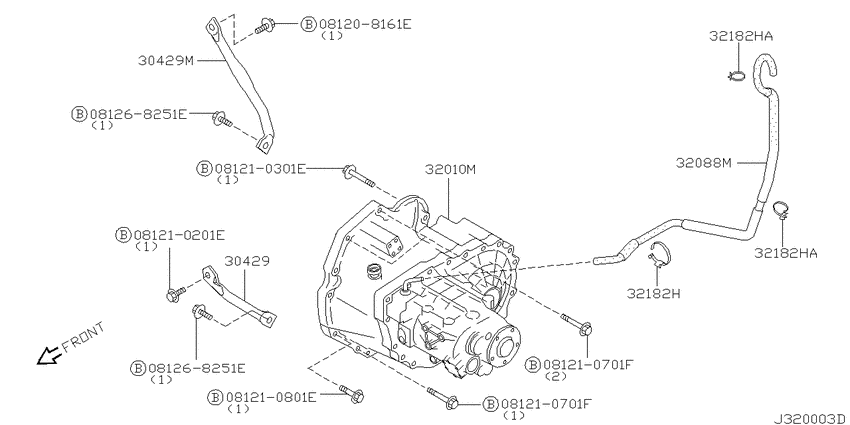

Manual transmission, transaxle & fitting (2000-01-01 ~ 2000-10-01; QG15DE.MT) Diagram Nissan WINGROAD/AD/EXPERT
- Year
- 2002 - 2012
- Sales region
- Japan
- Engine
- QG15DE
- drive
- 2WD
- transmission
- MT
- grade
- GX
- body
- V
- specification
- BASIC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
081208161E
|
081208161E
081208161E Bolt-hexagon |
081208161E |
from US $0.57 |
||
|
081210201E
|
081210201E
081210201E Bolt-hexagon |
081210201E |
from US $1.05 |
||
|
081210301E
|
081210301E
081210301E Bolt-hexagon |
081210301E |
US $3.06 |
||
|
081210701F
|
081210701F
08121-0701F Bolt-hexagon |
08121-0701F |
US $2.45 |
||
|
081210701F
|
081210701F
08121-0701F Bolt-hexagon |
08121-0701F |
US $2.45 |
||
|
081210801E
|
081210801E
08121-0801E
Bolt-hexagon
|
08121-0801E |
— | ||
|
081268251E
|
081268251E
08126-8251E
Bolt-hexagon
|
08126-8251E |
— | ||
|
081268251E
|
081268251E
08126-8251E
Bolt-hexagon
|
08126-8251E |
— | ||
|
30429
|
30429
30431-77A00 Gusset-Transmission To Engine9905--01 ~ 0010--01; QG15DE.MT |
30431-77A00 |
US $46.80 |
||
|
30429
|
30429
30432-50J00 Gusset-Transmission To Engine9905--01 ~ 0010--01; QG15DE.MT |
30432-50J00 |
US $31.10 |
||
|
30429M
|
30429M
30432-50J00 Gusset-Transmission To Engine9905--01 ~ 0010--01; QG15DE.MT |
30432-50J00 |
US $31.10 |
||
|
32010M
|
32010M
32010-4J516 Transaxle Assy-Manual9906--01 ~ 0208--01; *V.QG15DE.MT |
32010-4J516 |
US $2,310 |
||
|
32010M
|
32010M
32010-WD206 Transaxle Assy-Manual9906--01 ~ 0512--01; V.QG15DE.MT |
32010-WD206 |
US $2,310 |
||
|
32088M
|
32088M
31098-4M400 Hose-Breather9905--01 ~ 0010--01; QG15DE.MT |
31098-4M400 |
US $4.18 |
||
|
32088M
|
32088M
31098-4M401 Hose-Breather0208--01 ~ 0307--01; QG15DE.MT |
31098-4M401 |
US $4.61 |
||
|
32088M
|
32088M
31098-4M403 Hose-Breather0307--01 ~ 0512--01; QG15DE.MT |
31098-4M403 |
US $4.61 |
||
|
32182H
|
32182H
2422589960 Clip9905--01 ~ 0010--01; QG15DE.MT |
2422589960 |
US $4.99 |
||
|
32182H
|
32182H
2422579900 Clip-Wiring Harness9905--01 ~ 0010--01; QG15DE.MT |
2422579900 |
US $4.99 |
||
|
32182HA
|
32182HA
2422579900 Clip-Wiring Harness9905--01 ~ 0010--01; QG15DE.MT |
2422579900 |
US $4.99 |
||
|
32182HA
|
32182HA
2422579900 Clip-Wiring Harness9905--01 ~ 0010--01; QG15DE.MT |
2422579900 |
US $4.99 |
