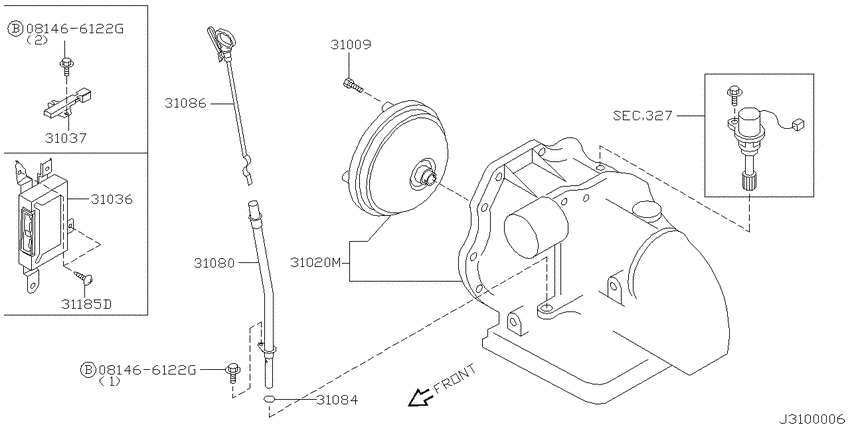

Auto transmission,transaxle & fitting (1999-06-01 ~ ; &アッセンブリー&フィッティング パーツ; QG13DE.AT.F4) Diagram Nissan WINGROAD/AD/EXPERT
- Year
- 2002 - 2012
- Sales region
- Japan
- Engine
- QG13DE
- drive
- 2WD
- transmission
- AT.F4
- grade
- GX
- body
- V
- specification
- BASIC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
081466122G
|
081466122G
081466122G Bolt-hexagon |
081466122G |
US $2.36 |
||
|
081466122G
|
081466122G
081466122G Bolt-hexagon |
081466122G |
US $2.36 |
||
|
31009
|
31009
3100921X00 Bolt-Self Lock9906--01 ~ ; QG13DE.AT.F4 |
3100921X00 |
US $4.85 |
||
|
31020M
|
31020M
31020-3AX00 Transaxle Assy-Automatic9906--01 ~ 0011--01; QG13DE.AT.F4 |
31020-3AX00 |
US $4,704 |
||
|
31020M
|
31020M
31020-3AX76 Transaxle Assy-Automatic0011--01 ~ 0208--01; QG13DE.AT.F4 |
31020-3AX76 |
US $4,704 |
||
|
31020M
|
31020M
31020-3BX02 Transaxle Assy-Automatic0208--01 ~ ; QG13DE.AT.F4 |
31020-3BX02 |
US $4,704 |
||
|
31036
|
31036
31036-WD200 Control Unit-Shift9906--01 ~ 0011--01; QG13DE.AT.F4 |
31036-WD200 |
US $597.55 |
||
|
31036
|
31036
31036-WD210 Control Unit-Shift0011--01 ~ 0208--01; QG13DE.AT.F4 |
31036-WD210 |
US $597.55 |
||
|
31036
|
31036
31036-WE400 Control Unit-Shift0208--01 ~ 0509--01; QG13DE.AT.F4 |
31036-WE400 |
US $597.55 |
||
|
31036
|
31036
31036-WE90A Control Unit-Shift0509--01 ~ ; QG13DE.AT.F4 |
31036-WE90A |
US $597.55 |
||
|
31037
|
31037
31037-71L00 Resistor Assy-Auto Transmission9906--01 ~ ; QG13DE.AT.F4 |
31037-71L00 |
US $37.84 |
||
|
31080
|
31080
31080-WD000 Pipe Assy-Oil Charging9906--01 ~ ; QG13DE.AT.F4 |
31080-WD000 |
US $49.54 |
||
|
31084
|
31084
31084M7500 Seal-O Ring9906--01 ~ 0506--01; QG13DE.AT.F4 |
31084M7500 |
US $1.15 |
||
|
31084
|
31084
31084M750A Seal-O Ring0506--01 ~ ; QG13DE.AT.F4 |
31084M750A |
US $1.67 |
||
|
31086
|
31086
31086-WA005 Gauge Assy-Oil Level9906--01 ~ ; QG13DE.AT.F4 |
31086-WA005 |
US $17.14 |
||
|
31185D
|
31185D
01456-00641 SCREW9906--01 ~ ; QG13DE.AT.F4 |
01456-00641 |
US $0.86 |
||
|
327
|
Speedometer pinion
327
|
||||
|
327
|
Speedometer pinion
327
|
||||
|
327
|
Speedometer pinion
327
|
||||
|
327
|
Speedometer pinion
327
|
||||
|
327
|
Speedometer pinion
327
|
||||
|
327
|
Speedometer pinion
327
|
||||
|
327
|
Speedometer pinion
327
|
||||
|
327
|
Speedometer pinion
327
|
||||
|
327
|
Speedometer pinion
327
|
||||
|
327
|
Speedometer pinion
327
|
||||
