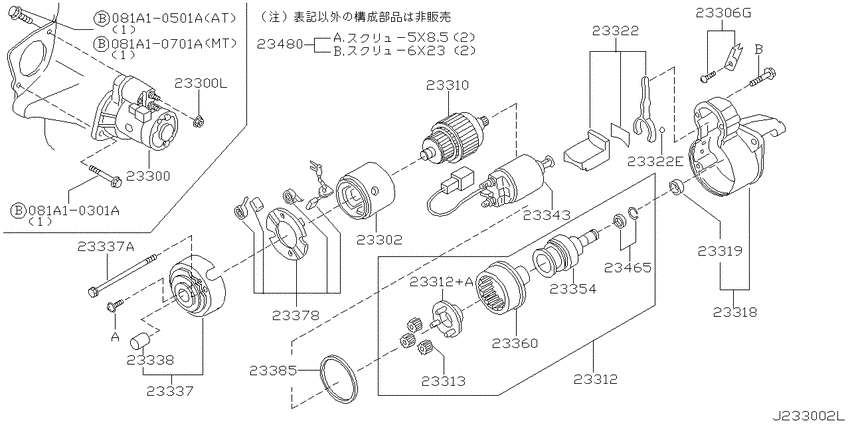

Starter motor (2000-10-01 ~ 2002-08-01; QG13DE.AT.F4) Diagram Nissan WINGROAD/AD/EXPERT
- Year
- 2002 - 2012
- Sales region
- Japan
- Engine
- QG13DE
- drive
- 2WD
- transmission
- AT.F4
- grade
- GX
- body
- V
- specification
- BASIC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
081A10301A
|
081A10301A
081A10301A ﾎﾞﾙﾄ |
081A10301A |
US $3.22 |
||
|
081A10501A
|
081A10501A
081A10501A ﾎﾞﾙﾄ |
081A10501A |
US $2.34 |
||
|
081A10701A
|
081A10701A
081A1-0701A
ﾎﾞﾙﾄ
|
081A1-0701A |
— | ||
|
23300
|
23300
23300-0M302 Motor Assy-Starter0208--01 ~ 0612--01; QG13DE.AT.F4; ﾋﾀﾁ |
23300-0M302 |
US $994.03 |
||
|
23300
|
23300
233000M30A Motor Assy-Starter0612--01 ~ ; QG13DE.AT.F4; ﾋﾀﾁ |
233000M30A |
US $994.03 |
||
|
23300
|
23300
23300-6J010 Motor Assy-Starter9906--01 ~ 0010--01; QG13DE.AT.F4; ﾐﾂﾋﾞｼ |
23300-6J010 |
US $1,001.11 |
||
|
23300
|
23300
23300-6J011 Motor Assy-Starter0010--01 ~ 0208--01; QG13DE.AT.F4; ﾐﾂﾋﾞｼ |
23300-6J011 |
US $1,001.11 |
||
|
23300
|
23300
0122100381 NUT9906--01 ~ 0001--01; QG13DE; ﾐﾂﾋﾞｼ |
0122100381 |
from US $5.37 |
||
|
23300L
|
23300L
0122100381 NUT9906--01 ~ 0001--01; QG13DE; ﾐﾂﾋﾞｼ |
0122100381 |
from US $5.37 |
||
|
23302
|
23302
23302-0M30A Yoke Assy0612--01 ~ ; QG13DE.AT.F4; ﾋﾀﾁ |
23302-0M30A |
US $253.44 |
||
|
23302
|
23302
23302-2J200 Yoke Assy0208--01 ~ 0612--01; QG13DE.AT.F4; ﾋﾀﾁ |
23302-2J200 |
US $253.44 |
||
| replacement | |||||
|
23302
|
23302
23302-0M30A Yoke Assy0208--01 ~ 0612--01; QG13DE.AT.F4; ﾋﾀﾁ |
23302-0M30A |
US $253.44 |
||
|
23302
|
23302
23302-6J010 Yoke Assy9906--01 ~ 0208--01; QG13DE.AT.F4; ﾐﾂﾋﾞｼ |
23302-6J010 |
US $259.20 |
||
|
23306G
|
23306G
23347-0M30A Plate-Connecting0612--01 ~ ; QG13DE.AT.F4; ﾋﾀﾁ |
23347-0M30A |
US $28.51 |
||
|
23306G
|
23306G
23347-73Y00 Plate-Connecting0208--01 ~ 0612--01; QG13DE.AT.F4; ﾋﾀﾁ |
23347-73Y00 |
US $28.51 |
||
|
23306G
|
23306G
23347-81N10 Plate-Connecting9906--01 ~ 0010--01; QG13DE; ﾐﾂﾋﾞｼ |
23347-81N10 |
US $26.21 |
||
|
23310
|
23310
23310-0M210 Armature Assy9906--01 ~ 0208--01; QG13DE.AT.F4; ﾐﾂﾋﾞｼ |
23310-0M210 |
US $403.56 |
||
|
23310
|
23310
2331031U00 Armature Assy0208--01 ~ ; QG13DE.AT.F4; ﾋﾀﾁ |
2331031U00 |
US $283.68 |
||
|
23312
|
23312
23312-0M30A Pinion Assy0612--01 ~ ; QG13DE.AT.F4; ﾋﾀﾁ |
23312-0M30A |
US $117.36 |
||
|
23312
|
23312
23312-50Y01 Pinion Assy0208--01 ~ 0612--01; QG13DE.AT.F4; ﾋﾀﾁ |
23312-50Y01 |
US $117.36 |
||
|
23312
|
23312
23312-9E010 PINION ASSY9906--01 ~ 0208--01; QG13DE.AT.F4; ﾐﾂﾋﾞｼ |
23312-9E010 |
US $328.51 |
||
|
23312
|
23312
23312-9E011 PINION ASSY9906--01 ~ 0208--01; QG13DE.AT.F4; ﾐﾂﾋﾞｼ |
23312-9E011 |
US $95.90 |
||
|
23312+A
|
23312+A
23312-9E011 PINION ASSY9906--01 ~ 0208--01; QG13DE.AT.F4; ﾐﾂﾋﾞｼ |
23312-9E011 |
US $95.90 |
||
|
23313
|
23313
23361-0M300 Gear0208--01 ~ ; QG13DE.AT.F4; ﾋﾀﾁ |
23361-0M300 |
US $51.55 |
||
|
23313
|
23313
23361-42L70 Planet Gear9906--01 ~ 0208--01; QG13DE.AT.F4; ﾐﾂﾋﾞｼ |
23361-42L70 |
US $22.46 |
||
|
23313
|
23313
23367-31U01 Planet Gear0208--01 ~ ; QG13DE.AT.F4; ﾋﾀﾁ |
23367-31U01 |
US $16.13 |
||
|
23318
|
23318
23318-0M200 Case Assy-Gear0208--01 ~ 0612--01; QG13DE.AT.F4; ﾋﾀﾁ |
23318-0M200 |
US $139.68 |
||
|
23318
|
23318
23318-0M30A Case Assy-Gear0612--01 ~ ; QG13DE.AT.F4; ﾋﾀﾁ |
23318-0M30A |
US $132.91 |
||
|
23318
|
23318
23318-6J010 Case Assy-Gear9906--01 ~ 0208--01; QG13DE.AT.F4; ﾐﾂﾋﾞｼ |
23318-6J010 |
US $122.98 |
||
|
23319
|
23319
23319-97E00 METAL-GEAR CASE0208--01 ~ ; QG13DE.AT.F4; ﾋﾀﾁ |
23319-97E00 |
US $11.66 |
||
|
23319
|
23319
23319M8011 Metal-Gear Case9906--01 ~ 0010--01; QG13DE; ﾐﾂﾋﾞｼ |
23319M8011 |
US $5.18 |
||
|
23322
|
23322
233220M300 Lever Set-Shift0208--01 ~ ; QG13DE.AT.F4; ﾋﾀﾁ |
233220M300 |
from US $19.30 |
||
|
23322
|
23322
23322-50Y12 Lever Set-Shift9906--01 ~ 0208--01; QG13DE.AT.F4; ﾐﾂﾋﾞｼ |
23322-50Y12 |
US $19.95 |
||
|
23322
|
23322
23325-42L70 Ball-Shift Lever9906--01 ~ 0208--01; QG13DE.AT.F4; ﾐﾂﾋﾞｼ |
23325-42L70 |
from US $1.39 |
||
|
23322E
|
23322E
23325-42L70 Ball-Shift Lever9906--01 ~ 0208--01; QG13DE.AT.F4; ﾐﾂﾋﾞｼ |
23325-42L70 |
from US $1.39 |
||
|
23337
|
23337
23337-0M300 Cover Assy-Rear0208--01 ~ ; QG13DE.AT.F4; ﾋﾀﾁ |
23337-0M300 |
US $51.70 |
||
|
23337
|
23337
23337-6J010 Cover Assy-Rear9906--01 ~ 0208--01; QG13DE.AT.F4; ﾐﾂﾋﾞｼ |
23337-6J010 |
US $38.45 |
||
|
23337
|
23337
23340-0M210 Bolt-Through9906--01 ~ 0208--01; QG13DE.AT.F4; ﾐﾂﾋﾞｼ |
23340-0M210 |
US $4.03 |
||
|
23337
|
23337
23340-EV10A Bolt-Through0612--01 ~ ; QG13DE.AT.F4; ﾋﾀﾁ |
23340-EV10A |
US $4.18 |
||
|
23337
|
23337
23340-M4900 Bolt-Through0208--01 ~ 0612--01; QG13DE.AT.F4; ﾋﾀﾁ |
23340-M4900 |
US $4.18 |
||
|
23337A
|
23337A
23340-0M210 Bolt-Through9906--01 ~ 0208--01; QG13DE.AT.F4; ﾐﾂﾋﾞｼ |
23340-0M210 |
US $4.03 |
||
|
23337A
|
23337A
23340-EV10A Bolt-Through0612--01 ~ ; QG13DE.AT.F4; ﾋﾀﾁ |
23340-EV10A |
US $4.18 |
||
|
23337A
|
23337A
23340-M4900 Bolt-Through0208--01 ~ 0612--01; QG13DE.AT.F4; ﾋﾀﾁ |
23340-M4900 |
US $4.18 |
||
|
23338
|
23338
23338-01N10 Metal-Rear Cover9906--01 ~ 0208--01; QG13DE.AT.F4; ﾐﾂﾋﾞｼ |
23338-01N10 |
from US $9.36 |
||
|
23338
|
23338
23338N3300 Metal-Rear Cover0208--01 ~ ; QG13DE.AT.F4; ﾋﾀﾁ |
23338N3300 |
US $5.18 |
||
|
23338
|
23338
2333897E00 BEARING-REAR COVER0208--01 ~ ; QG13DE.AT.F4; ﾋﾀﾁ |
2333897E00 |
US $10.37 |
||
|
23343
|
23343
23343-0M30A Switch Assy-Magnetic0612--01 ~ ; QG13DE.AT.F4; ﾋﾀﾁ |
23343-0M30A |
US $155.52 |
||
|
23343
|
23343
23343-6J010 Switch Assy-Magnetic9906--01 ~ 0208--01; QG13DE.AT.F4; ﾐﾂﾋﾞｼ |
23343-6J010 |
US $155.52 |
||
|
23343
|
23343
2334384A07 Switch Assy-Magnetic0208--01 ~ 0612--01; QG13DE.AT.F4; ﾋﾀﾁ |
2334384A07 |
US $155.52 |
||
| replacement | |||||
|
23343
|
23343
23343-0M30A Switch Assy-Magnetic0208--01 ~ 0612--01; QG13DE.AT.F4; ﾋﾀﾁ |
23343-0M30A |
US $155.52 |
||
|
23354
|
23354
23354-42L70 Clutch Assy9906--01 ~ 0208--01; QG13DE.AT.F4; ﾐﾂﾋﾞｼ |
23354-42L70 |
US $254.88 |
||
|
23360
|
23360
23360-0M210 Gear & Shaft Set9906--01 ~ 0208--01; QG13DE.AT.F4; ﾐﾂﾋﾞｼ |
23360-0M210 |
US $27.94 |
||
|
23378
|
23378
23378-0M300 Holder Assy-Brush0208--01 ~ 0612--01; QG13DE.AT.F4; ﾋﾀﾁ |
23378-0M300 |
US $54.43 |
||
|
23378
|
23378
23378-6J011 Holder Assy-Brush0006--01 ~ 0208--01; QG13DE.AT.F4; ﾐﾂﾋﾞｼ |
23378-6J011 |
from US $66.13 |
||
|
23378
|
23378
23378-72F10 Holder Assy-Brush9906--01 ~ 0006--01; QG13DE.AT.F4; ﾐﾂﾋﾞｼ |
23378-72F10 |
US $65.81 |
||
|
23378
|
23378
23378EN20A Holder Assy-Brush0612--01 ~ ; QG13DE.AT.F4; ﾋﾀﾁ |
23378EN20A |
US $54.43 |
||
|
23385
|
23385
23385-50Y12 Packing9906--01 ~ 0208--01; QG13DE.AT.F4; ﾐﾂﾋﾞｼ |
23385-50Y12 |
US $8.06 |
||
|
23465
|
23465
23465-42L70 Stopper Set-Pinion9906--01 ~ 0208--01; QG13DE.AT.F4; ﾐﾂﾋﾞｼ |
23465-42L70 |
US $7.63 |
||
|
23480
|
23480
23480-M0110 Screw Set9906--01 ~ 0010--01; QG13DE; ﾐﾂﾋﾞｼ |
23480-M0110 |
US $9.36 |
||
