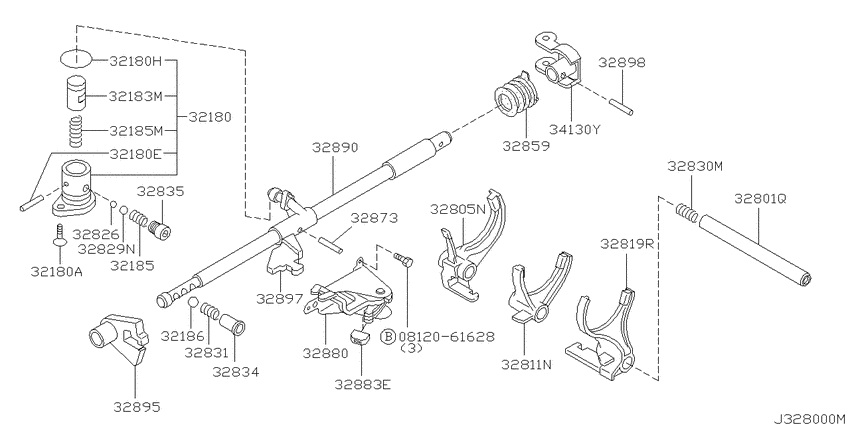

Transmission shift control (2005-12-01 ~ ; QG13DE.MT) Diagram Nissan WINGROAD/AD/EXPERT
- Year
- 1999 - 2002
- Sales region
- Japan
- Engine
- QG13DE
- drive
- 2WD
- transmission
- MT
- grade
- VE
- body
- V
- specification
- BASIC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
0812061628
|
0812061628
0812061628 Bolt-hexagon |
0812061628 |
from US $2.21 |
||
|
32180
|
32180
32180-60J11 Checking Assy-Reverse9906--01 ~ 0010--01; QG13DE.MT |
32180-60J11 |
US $26.06 |
||
|
32180
|
32180
32180-60J12 Checking Assy-Reverse0110--01 ~ 0512--01; W.MT +QG13DE.MT |
32180-60J12 |
US $26.06 |
||
|
32180
|
32180
32180-60J1A Checking Assy-Reverse0612--01 ~ ; QG13DE.MT |
32180-60J1A |
US $26.06 |
||
|
32180
|
32180
32122-50J00 Bolt9906--01 ~ 0010--01; QG13DE.MT |
32122-50J00 |
US $1.73 |
||
| replacement | |||||
|
32180
|
32180
32122-50J0A Bolt9906--01 ~ 0010--01; QG13DE.MT |
32122-50J0A |
US $1.73 |
||
|
32180
|
32180
32122-50J0A Bolt0612--01 ~ ; QG13DE.MT |
32122-50J0A |
US $1.73 |
||
|
32180
|
32180
32293-D2100 Pin-Stopper9906--01 ~ 0010--01; QG13DE.MT |
32293-D2100 |
US $0.86 |
||
|
32180
|
32180
32182-M8000 Seal-O Ring, Reverse Checking9906--01 ~ 0010--01; QG13DE.MT |
32182-M8000 |
US $2.36 |
||
|
32180A
|
32180A
32122-50J00 Bolt9906--01 ~ 0010--01; QG13DE.MT |
32122-50J00 |
US $1.73 |
||
| replacement | |||||
|
32180A
|
32180A
32122-50J0A Bolt9906--01 ~ 0010--01; QG13DE.MT |
32122-50J0A |
US $1.73 |
||
|
32180A
|
32180A
32122-50J0A Bolt0612--01 ~ ; QG13DE.MT |
32122-50J0A |
US $1.73 |
||
|
32180E
|
32180E
32293-D2100 Pin-Stopper9906--01 ~ 0010--01; QG13DE.MT |
32293-D2100 |
US $0.86 |
||
|
32180H
|
32180H
32182-M8000 Seal-O Ring, Reverse Checking9906--01 ~ 0010--01; QG13DE.MT |
32182-M8000 |
US $2.36 |
||
|
32183M
|
32183M
32183-60J11 Plunger-Reverse Checking9906--01 ~ 0010--01; QG13DE.MT |
32183-60J11 |
US $7.92 |
||
|
32185
|
32185
32187-52A00 Spring-Reverse Checking9906--01 ~ 0010--01; QG13DE.MT |
32187-52A00 |
US $0.86 |
||
|
32185
|
32185
32189-50J00 Spring-Reverse Checking9906--01 ~ 0010--01; QG13DE.MT |
32189-50J00 |
US $4.18 |
||
|
32185M
|
32185M
32189-50J00 Spring-Reverse Checking9906--01 ~ 0010--01; QG13DE.MT |
32189-50J00 |
US $4.18 |
||
|
32186
|
32186
32186-M8000 Ball-Check9906--01 ~ 0010--01; QG13DE.MT |
32186-M8000 |
US $0.86 |
||
|
32801Q
|
32801Q
32801-M8802 Shaft-Fork9906--01 ~ 0010--01; QG13DE.MT |
32801-M8802 |
US $19.44 |
||
|
32805N
|
32805N
3280550A01 Fork-Shift, 1St & 2Nd9906--01 ~ 0010--01; QG13DE.MT |
3280550A01 |
from US $28.51 |
||
|
32811N
|
32811N
3281144B00 Fork-Shift, 3Rd & 4Th9906--01 ~ 0010--01; QG13DE.MT |
3281144B00 |
US $42.62 |
||
|
32819R
|
32819R
32819-44B00 Fork-Shift, 5Th9906--01 ~ 0010--01; QG13DE.MT |
32819-44B00 |
from US $42.62 |
||
|
32826
|
32826
32720-36900 Ball-Steel9906--01 ~ 0010--01; QG13DE.MT |
32720-36900 |
US $0.82 |
||
|
32829N
|
32829N
32829-26760 Ball-Check9906--01 ~ 0010--01; QG13DE.MT |
32829-26760 |
from US $0.74 |
||
|
32829N
|
32829N
32829-96W00
Ball-Check
0405--01 ~ 0512--01; W.MT +QG13DE.MT |
32829-96W00 |
— | ||
| replacement | |||||
|
32829N
|
32829N
32829-26760 Ball-Check0405--01 ~ 0512--01; W.MT +QG13DE.MT |
32829-26760 |
from US $0.74 |
||
|
32830M
|
32830M
32829-M8000 Spring-Support Fork Shaft9906--01 ~ 0010--01; QG13DE.MT |
32829-M8000 |
US $0.86 |
||
|
32831
|
32831
32831-50J00 Spring-Check Ball9906--01 ~ 0010--01; QG13DE.MT |
32831-50J00 |
US $1.73 |
||
|
32834
|
32834
32834-M8001 Plug-Check Ball9906--01 ~ 0010--01; QG13DE.MT |
32834-M8001 |
US $5.18 |
||
|
32835
|
32835
32188-M8001 Plug-Checking Ball9906--01 ~ 0010--01; QG13DE.MT; L=8.3 ｾﾝﾀｸｼﾃ ｼﾖｳ |
32188-M8001 |
US $2.45 |
||
|
32835
|
32835
32188-M8002 Plug-Checking Ball9906--01 ~ 0010--01; QG13DE.MT; L=7.1 ｾﾝﾀｸｼﾃ ｼﾖｳ |
32188-M8002 |
US $2.45 |
||
|
32835
|
32835
32188-M8003 Plug-Checking Ball9906--01 ~ 0010--01; QG13DE.MT; L=7.7 ｾﾝﾀｸｼﾃ ｼﾖｳ |
32188-M8003 |
US $4.18 |
||
|
32835
|
32835
32188-M8004 Plug-Checking Ball9906--01 ~ 0010--01; QG13DE.MT; L=8.9 ｾﾝﾀｸｼﾃ ｼﾖｳ |
32188-M8004 |
US $4.18 |
||
| replacement | |||||
|
32835
|
32835
32188-M800D Plug-Checking Ball9906--01 ~ 0010--01; QG13DE.MT; L=8.9 ｾﾝﾀｸｼﾃ ｼﾖｳ |
32188-M800D |
US $2.45 |
||
|
32835
|
32835
32188-M800A Plug-Checking Ball0612--01 ~ ; QG13DE.MT; L=8.3 ｾﾝﾀｸｼﾃ ｼﾖｳ |
32188-M800A |
US $2.45 |
||
|
32835
|
32835
32188-M800B Plug-Checking Ball0612--01 ~ ; QG13DE.MT; L=7.1 ｾﾝﾀｸｼﾃ ｼﾖｳ |
32188-M800B |
US $2.45 |
||
|
32835
|
32835
32188-M800C Plug-Checking Ball0612--01 ~ ; QG13DE.MT; L=7.7 ｾﾝﾀｸｼﾃ ｼﾖｳ |
32188-M800C |
US $2.45 |
||
|
32835
|
32835
32188-M800D Plug-Checking Ball0612--01 ~ ; QG13DE.MT; L=8.9 ｾﾝﾀｸｼﾃ ｼﾖｳ |
32188-M800D |
US $2.45 |
||
|
32859
|
32859
32859M8003 Boot-Rod, Striking9906--01 ~ 0010--01; QG13DE.MT |
32859M8003 |
from US $5.18 |
||
|
32873
|
32873
32917M3000 Pin-Withdrawal Lever9906--01 ~ 0010--01; QG13DE.MT |
32917M3000 |
from US $1 |
||
|
32880
|
32880
32880-01A07 Lever Assy-Select9906--01 ~ 0010--01; QG13DE.MT |
32880-01A07 |
US $126.14 |
||
|
32880
|
32880
32880-01A09 Lever Assy-Select0110--01 ~ 0512--01; W.MT +QG13DE.MT |
32880-01A09 |
US $126.14 |
||
|
32883E
|
32883E
32886-M8001 Cap-Shifter9906--01 ~ 0010--01; QG13DE.MT |
32886-M8001 |
US $2.45 |
||
|
32890
|
32890
32892-50J01 Rod-Striking9906--01 ~ 0010--01; QG13DE.MT |
32892-50J01 |
US $31.82 |
||
|
32895
|
32895
32895-D2101 Inter Lock-Striking9906--01 ~ 0010--01; QG13DE.MT |
32895-D2101 |
US $27.94 |
||
|
32897
|
32897
32897D2102 Lever-Striking9906--01 ~ 0010--01; QG13DE.MT |
32897D2102 |
US $39.91 |
||
|
32898
|
32898
34133M8000 Pin-Retaining9906--01 ~ 0010--01; QG13DE.MT |
34133M8000 |
from US $4.03 |
||
|
34130Y
|
34130Y
32930-4M412 Yoke Assy-Striking9906--01 ~ 0010--01; QG13DE.MT |
32930-4M412 |
US $25.92 |
||
|
34130Y
|
34130Y
32930-4M41A Yoke Assy-Striking0609--01 ~ ; QG13DE.MT |
32930-4M41A |
US $28.51 |
||
