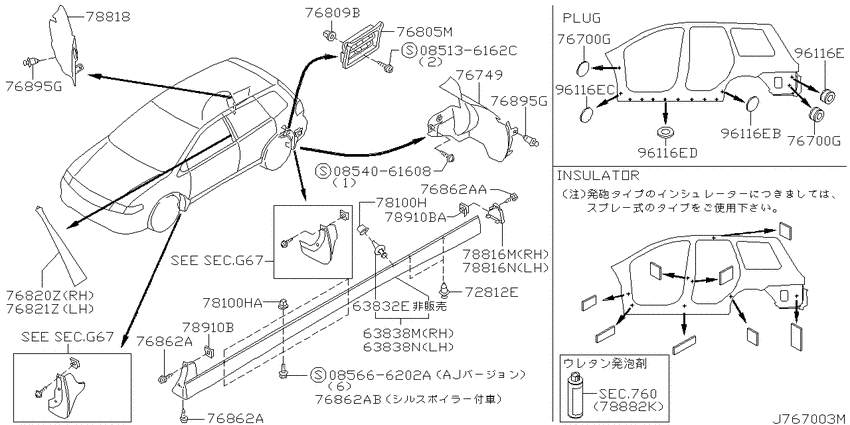

Body side fitting (2000-01-01 ~ 2000-10-01; WAG(ﾌｨｯﾃｨﾝｸﾞﾊﾟｰﾂ&ﾌﾟﾗｸﾞ&ｲﾝｼｭﾚｰﾀｰ); W) Diagram Nissan WINGROAD/AD/EXPERT
- Year
- 1999 - 2001
- Sales region
- Japan
- Engine
- QG18DE
- drive
- 2WD
- transmission
- AT.F4
- grade
- Z
- body
- W
- specification
- BASIC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
085136162C
|
085136162C
08513-6162C Screw |
08513-6162C |
US $1.87 |
||
|
0854061608
|
0854061608
0854061608 SCREWTAPPING |
0854061608 |
from US $0.52 |
||
|
085666202A
|
085666202A
085666202A SCREWTAPPING |
085666202A |
from US $0.52 |
||
|
63832E
|
63832E
76882VE000 Clip9905--01 ~ 0010--01; W.SR20VE +W.Z |
76882VE000 |
US $6.38 |
||
|
63838M
|
63838M
76852WD401 Mudguard-Sill Front, Rh9905--01 ~ 0010--01; W.SR20VE +W.Z; [G502] |
76852WD401 |
US $368.16 |
||
|
63838M
|
63838M
76852-WD402 Mudguard-Sill Front, Rh9905--01 ~ 0010--01; W.SR20VE +W.Z; [G502] |
76852-WD402 |
US $368.16 |
||
|
63838M
|
63838M
76852-WD403 Mudguard-Sill Front, Rh9905--01 ~ 0010--01; W.SR20VE +W.Z; [G502] |
76852-WD403 |
US $441.79 |
||
|
63838M
|
63838M
76852-WD404 Mudguard-Sill Front, Rh9905--01 ~ 0010--01; W.SR20VE +W.Z; [G502] |
76852-WD404 |
US $368.16 |
||
|
63838M
|
63838M
76852-WD405 Mudguard-Sill Front, Rh9905--01 ~ 0010--01; W.SR20VE +W.Z; [G502] |
76852-WD405 |
US $368.16 |
||
|
63838M
|
63838M
76852-WD406 Mudguard-Sill Front, Rh9905--01 ~ 0010--01; W.SR20VE +W.Z; [G502] |
76852-WD406 |
US $368.16 |
||
|
63838M
|
63838M
76852-WD407 Mudguard-Sill Front, Rh9905--01 ~ 0001--01; W.SR20VE +W.Z; [G502] |
76852-WD407 |
US $368.16 |
||
|
63838M
|
63838M
76852WD409 Mudguard-Sill Front, Rh0001--01 ~ 0010--01; W.SR20VE +W.Z; [G502] |
76852WD409 |
US $368.16 |
||
|
63838N
|
63838N
76853-WD401 Mudguard-Sill Front, Lh9905--01 ~ 0010--01; W.SR20VE +W.Z; [G502] |
76853-WD401 |
US $368.16 |
||
|
63838N
|
63838N
76853-WD402 Mudguard-Sill Front, Lh9905--01 ~ 0010--01; W.SR20VE +W.Z; [G502] |
76853-WD402 |
US $368.16 |
||
|
63838N
|
63838N
76853-WD403 Mudguard-Sill Front, Lh9905--01 ~ 0010--01; W.SR20VE +W.Z; [G502] |
76853-WD403 |
US $441.79 |
||
|
63838N
|
63838N
76853-WD404 Mudguard-Sill Front, Lh9905--01 ~ 0010--01; W.SR20VE +W.Z; [G502] |
76853-WD404 |
US $368.16 |
||
|
63838N
|
63838N
76853-WD405 Mudguard-Sill Front, Lh9905--01 ~ 0010--01; W.SR20VE +W.Z; [G502] |
76853-WD405 |
US $368.16 |
||
|
63838N
|
63838N
76853-WD406 Mudguard-Sill Front, Lh9905--01 ~ 0010--01; W.SR20VE +W.Z; [G502] |
76853-WD406 |
US $368.16 |
||
|
63838N
|
63838N
76853-WD407 Mudguard-Sill Front, Lh9905--01 ~ 0010--01; W.SR20VE +W.Z; [G502] |
76853-WD407 |
US $368.16 |
||
|
63838N
|
63838N
76853WD409 Mudguard-Sill Front, Lh0001--01 ~ 0010--01; W.SR20VE +W.Z; [G502] |
76853WD409 |
US $368.16 |
||
|
72812E
|
72812E
0155309321 CLIP9905--01 ~ 0010--01; W.SR20VE +W.Z |
0155309321 |
from US $0.89 |
||
|
76700G
|
76700G
01658-00531
PLUG
0008--01 ~ 0010--01; *W.(Z+G); D=16 |
01658-00531 |
— | ||
| replacement | |||||
|
76700G
|
76700G
74816AL500 Plug0008--01 ~ 0010--01; *W.(Z+G); D=16 |
74816AL500 |
US $1.93 |
||
|
76700G
|
76700G
062121200P Grommet9905--01 ~ 0008--01; W; D=12 |
062121200P |
US $2.45 |
||
|
76700G
|
76700G
01658-00531
PLUG
0008--01 ~ 0010--01; *W.(Z+G); D=16 |
01658-00531 |
— | ||
| replacement | |||||
|
76700G
|
76700G
74816AL500 Plug0008--01 ~ 0010--01; *W.(Z+G); D=16 |
74816AL500 |
US $1.93 |
||
|
76700G
|
76700G
062121200P Grommet9905--01 ~ 0008--01; W; D=12 |
062121200P |
US $2.45 |
||
|
76749
|
76749
76749-WD200 Protector-Rear Wheel House, Lh9905--01 ~ 0010--01; W.QG15DE +W.Z |
76749-WD200 |
US $20.02 |
||
|
76805M
|
76805M
76805-WA000 Duct-Drafter, Outlet Lh9905--01 ~ 0010--01; W |
76805-WA000 |
US $36.72 |
||
|
76809B
|
76809B
0128100463 GROMMET-SCREW9905--01 ~ 0010--01; W |
0128100463 |
US $2.45 |
||
|
76820Z
|
76820Z
99038-WD000 Tape-Center Pillar, Rh9905--01 ~ 0010--01; W.SR20VE +W.(Z+X+G) |
99038-WD000 |
US $24.91 |
||
|
76821Z
|
76821Z
99039WD000 Tape-Center Pillar, Lh9905--01 ~ 0010--01; W.SR20VE +W.(Z+X+G) |
99039WD000 |
US $24.91 |
||
|
76862A
|
76862A
0145100891 SCREW9905--01 ~ 0010--01; W.SR20VE +W.Z |
0145100891 |
from US $1.05 |
||
|
76862A
|
76862A
0145600591 SCREW9905--01 ~ 0010--01; W.SR20VE +W.Z |
0145600591 |
US $2.08 |
||
|
76862A
|
76862A
01456-00133 SCREW9905--01 ~ 0010--01; W.SR20VE +W.Z |
01456-00133 |
US $2.45 |
||
|
76862A
|
76862A
0145100891 SCREW9905--01 ~ 0010--01; W.SR20VE +W.Z |
0145100891 |
from US $1.05 |
||
|
76862A
|
76862A
0145600591 SCREW9905--01 ~ 0010--01; W.SR20VE +W.Z |
0145600591 |
US $2.08 |
||
|
76862A
|
76862A
01456-00133 SCREW9905--01 ~ 0010--01; W.SR20VE +W.Z |
01456-00133 |
US $2.45 |
||
|
76862AA
|
76862AA
0145600591 SCREW9905--01 ~ 0010--01; W.SR20VE +W.Z |
0145600591 |
US $2.08 |
||
|
76862AB
|
76862AB
01456-00133 SCREW9905--01 ~ 0010--01; W.SR20VE +W.Z |
01456-00133 |
US $2.45 |
||
|
76895G
|
76895G
0155309321 CLIP9905--01 ~ 0010--01; W |
0155309321 |
from US $0.89 |
||
|
76895G
|
76895G
0155309321 CLIP9905--01 ~ 0010--01; W |
0155309321 |
from US $0.89 |
||
|
78100H
|
78100H
76848VE000 Grommet9905--01 ~ 0010--01; W.SR20VE +W.Z |
76848VE000 |
US $2.74 |
||
|
78100H
|
78100H
76848WD400 Grommet9905--01 ~ 0010--01; W.SR20VE +W.Z |
76848WD400 |
US $2.59 |
||
|
78100HA
|
78100HA
76848WD400 Grommet9905--01 ~ 0010--01; W.SR20VE +W.Z |
76848WD400 |
US $2.59 |
||
|
78816M
|
78816M
76854-WD401 Mudguard-Sill Rear, Rh9905--01 ~ 0010--01; W.SR20VE +W.Z; [G502] |
76854-WD401 |
US $64.80 |
||
|
78816M
|
78816M
76854-WD402 Mudguard-Sill Rear, Rh9905--01 ~ 0010--01; W.SR20VE +W.Z; [G502] |
76854-WD402 |
US $64.80 |
||
|
78816M
|
78816M
76854-WD403 Mudguard-Sill Rear, Rh9905--01 ~ 0010--01; W.SR20VE +W.Z; [G502] |
76854-WD403 |
US $64.80 |
||
|
78816M
|
78816M
76854-WD404 Mudguard-Sill Rear, Rh9905--01 ~ 0010--01; W.SR20VE +W.Z; [G502] |
76854-WD404 |
US $64.80 |
||
|
78816M
|
78816M
76854-WD405 Mudguard-Sill Rear, Rh9905--01 ~ 0010--01; W.SR20VE +W.Z; [G502] |
76854-WD405 |
US $64.80 |
||
|
78816M
|
78816M
76854-WD406 Mudguard-Sill Rear, Rh9905--01 ~ 0010--01; W.SR20VE +W.Z; [G502] |
76854-WD406 |
US $64.80 |
||
|
78816M
|
78816M
76854-WD407 Mudguard-Sill Rear, Rh9905--01 ~ 0010--01; W.SR20VE +W.Z; [G502] |
76854-WD407 |
US $64.80 |
||
|
78816M
|
78816M
76854-WD409 Mudguard-Sill Rear, Rh0001--01 ~ 0010--01; W.SR20VE +W.Z; [G502] |
76854-WD409 |
US $64.80 |
||
|
78816N
|
78816N
76855-WD401 Mudguard-Sill Rear, Lh9905--01 ~ 0010--01; W.SR20VE +W.Z; [G502] |
76855-WD401 |
US $64.80 |
||
|
78816N
|
78816N
76855-WD402 Mudguard-Sill Rear, Lh9905--01 ~ 0010--01; W.SR20VE +W.Z; [G502] |
76855-WD402 |
US $64.80 |
||
|
78816N
|
78816N
76855-WD403 Mudguard-Sill Rear, Lh9905--01 ~ 0010--01; W.SR20VE +W.Z; [G502] |
76855-WD403 |
US $64.80 |
||
|
78816N
|
78816N
76855-WD404 Mudguard-Sill Rear, Lh9905--01 ~ 0010--01; W.SR20VE +W.Z; [G502] |
76855-WD404 |
US $64.80 |
||
|
78816N
|
78816N
76855-WD405 Mudguard-Sill Rear, Lh9905--01 ~ 0010--01; W.SR20VE +W.Z; [G502] |
76855-WD405 |
US $64.80 |
||
|
78816N
|
78816N
76855-WD406 Mudguard-Sill Rear, Lh9905--01 ~ 0010--01; W.SR20VE +W.Z; [G502] |
76855-WD406 |
US $64.80 |
||
|
78816N
|
78816N
76855-WD407 Mudguard-Sill Rear, Lh9905--01 ~ 0001--01; W.SR20VE +W.Z; [G502] |
76855-WD407 |
US $64.80 |
||
|
78816N
|
78816N
76855-WD409 Mudguard-Sill Rear, Lh0001--01 ~ 0010--01; W.SR20VE +W.Z; [G502] |
76855-WD409 |
US $64.80 |
||
|
78818
|
78818
78818WD000 Closing-Rear Bumper, Rh9905--01 ~ 0010--01; W |
78818WD000 |
US $12.82 |
||
|
78910B
|
78910B
0124100273 NUT-SPRING9905--01 ~ 0010--01; W.SR20VE +W.Z |
0124100273 |
US $1.73 |
||
|
78910B
|
78910B
0124100213 NUT-SPRING9905--01 ~ 0010--01; W.SR20VE +W.Z |
0124100213 |
US $9.36 |
||
|
78910BA
|
78910BA
0124100213 NUT-SPRING9905--01 ~ 0010--01; W.SR20VE +W.Z |
0124100213 |
US $9.36 |
||
|
96116E
|
96116E
062123000P Plug-Rear Floor9905--01 ~ 0010--01; W; ｻﾝﾙ-ﾌ ﾚｽ ﾖｳ |
062123000P |
US $3.18 |
||
|
96116E
|
96116E
062123000P Plug-Rear Floor9905--01 ~ 0001--01; W.(LE+Z+G); ﾋﾟﾗ- ｱﾝﾃﾅ ﾖｳ |
062123000P |
US $3.18 |
||
|
96116E
|
96116E
0165800431 PLUG-REAR FLOOR9905--01 ~ 9912--01; *W.(Z+G); ﾘﾔ ﾎｲ-ﾙﾊｳｽ ﾖｳ |
0165800431 |
US $3.06 |
||
|
96116E
|
96116E
01658-00433 PLUG-FRONT FLOOR9905--01 ~ 9912--01; W; ﾘﾔ ﾎｲ-ﾙﾊｳｽ ﾖｳ |
01658-00433 |
US $0.86 |
||
|
96116E
|
96116E
76998-WD000 New Genuine Part9912--01 ~ 0010--01; W; ﾘﾔ ﾎｲ-ﾙﾊｳｽ ﾖｳ |
76998-WD000 |
US $3.60 |
||
|
96116E
|
96116E
0165800431 PLUG-REAR FLOOR9905--01 ~ 0001--01; *W.(Z+G); D=20 |
0165800431 |
US $3.06 |
||
|
96116E
|
96116E
01658-00433 PLUG-FRONT FLOOR9905--01 ~ 0010--01; W; D=20 |
01658-00433 |
US $0.86 |
||
|
96116E
|
96116E
01658-00483 PLUG-FRONT FLOOR0010--01 ~ 0110--01; W; D=20 |
01658-00483 |
US $1.87 |
||
|
96116E
|
96116E
01658-00531
PLUG
9905--01 ~ 0010--01; W; D=16 |
01658-00531 |
— | ||
| replacement | |||||
|
96116E
|
96116E
74816AL500 Plug9905--01 ~ 0010--01; W; D=16 |
74816AL500 |
US $1.93 |
||
|
96116EB
|
96116EB
0165800431 PLUG-REAR FLOOR9905--01 ~ 9912--01; *W.(Z+G); ﾘﾔ ﾎｲ-ﾙﾊｳｽ ﾖｳ |
0165800431 |
US $3.06 |
||
|
96116EB
|
96116EB
01658-00433 PLUG-FRONT FLOOR9905--01 ~ 9912--01; W; ﾘﾔ ﾎｲ-ﾙﾊｳｽ ﾖｳ |
01658-00433 |
US $0.86 |
||
|
96116EB
|
96116EB
76998-WD000 New Genuine Part9912--01 ~ 0010--01; W; ﾘﾔ ﾎｲ-ﾙﾊｳｽ ﾖｳ |
76998-WD000 |
US $3.60 |
||
|
96116EC
|
96116EC
0165800431 PLUG-REAR FLOOR9905--01 ~ 0001--01; *W.(Z+G); D=20 |
0165800431 |
US $3.06 |
||
|
96116EC
|
96116EC
01658-00433 PLUG-FRONT FLOOR9905--01 ~ 0010--01; W; D=20 |
01658-00433 |
US $0.86 |
||
|
96116EC
|
96116EC
01658-00483 PLUG-FRONT FLOOR0010--01 ~ 0110--01; W; D=20 |
01658-00483 |
US $1.87 |
||
|
96116ED
|
96116ED
01658-00531
PLUG
9905--01 ~ 0010--01; W; D=16 |
01658-00531 |
— | ||
| replacement | |||||
|
96116ED
|
96116ED
74816AL500 Plug9905--01 ~ 0010--01; W; D=16 |
74816AL500 |
US $1.93 |
||
