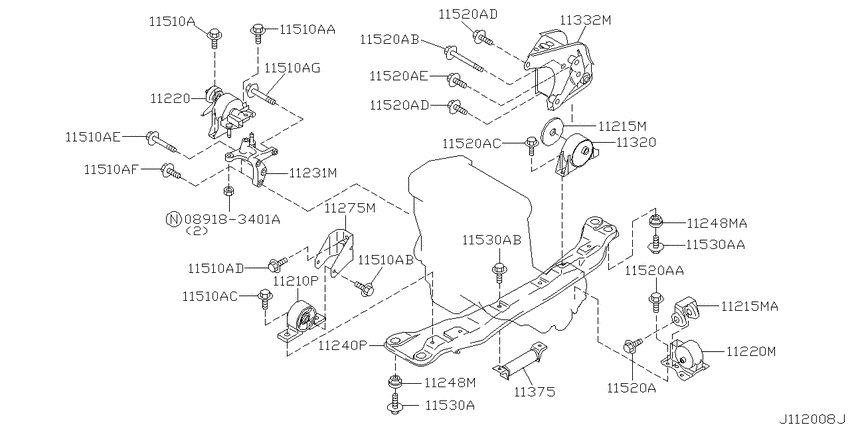

Engine & transmission mounting (2000-01-01 ~ 2001-10-01; 2WD.QG18DE +QG18DEN) Diagram Nissan WINGROAD/AD/EXPERT
- Year
- 1999 - 2001
- Sales region
- Japan
- Engine
- QG18DE
- drive
- 2WD
- transmission
- AT.F4
- grade
- Z
- body
- W
- specification
- BASIC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
089183401A
|
089183401A
089183401A Nut-Flange, Hex |
089183401A |
from US $0.68 |
||
|
11210P
|
11210P
11270-WD000 Insulator Assy-Engine Mounting, Front9905--01 ~ 0001--01; 2WD.QG18DE |
11270-WD000 |
from US $79.06 |
||
|
11215M
|
11215M
1121550A00 Stopper-Engine Mounting9905--01 ~ 0001--01; 2WD.QG18DE |
1121550A00 |
US $11.38 |
||
|
11215M
|
11215M
11215-5U005 Stopper-Engine Mounting9905--01 ~ 0001--01; 2WD.QG18DE |
11215-5U005 |
US $11.66 |
||
|
11215MA
|
11215MA
11215-5U005 Stopper-Engine Mounting9905--01 ~ 0001--01; 2WD.QG18DE |
11215-5U005 |
US $11.66 |
||
|
11220
|
11220
11210-WD010 Insulator Assy-Engine Mounting, Front Rh9905--01 ~ 0001--01; 2WD.QG18DE |
11210-WD010 |
US $184.32 |
||
|
11220
|
11220
112204M412
Insulator Assy-Engine Mounting, Front Lh
9905--01 ~ 0001--01; 2WD.QG18DE |
112204M412 |
— | ||
| replacement | |||||
|
11220
|
11220
11220-95F0B
Insulator Assy-Engine Mounting, Front Lh
9905--01 ~ 0001--01; 2WD.QG18DE |
11220-95F0B |
— | ||
|
11220M
|
11220M
112204M412
Insulator Assy-Engine Mounting, Front Lh
9905--01 ~ 0001--01; 2WD.QG18DE |
112204M412 |
— | ||
| replacement | |||||
|
11220M
|
11220M
11220-95F0B
Insulator Assy-Engine Mounting, Front Lh
9905--01 ~ 0001--01; 2WD.QG18DE |
11220-95F0B |
— | ||
|
11231M
|
11231M
11231WD000 Bracket-Engine Mounting9905--01 ~ 0001--01; 2WD.QG18DE |
11231WD000 |
US $76.03 |
||
|
11240P
|
11240P
112404M400 Member Assy-Engine Mounting9905--01 ~ 0001--01; 2WD.QG18DE |
112404M400 |
US $128.30 |
||
|
11248M
|
11248M
112484M400 Pad-Engine Mounting Member9905--01 ~ 0001--01; 2WD.QG18DE |
112484M400 |
from US $7.31 |
||
|
11248M
|
11248M
112484M410 Pad-Engine Mounting Member9905--01 ~ 0001--01; 2WD.QG18DE |
112484M410 |
from US $7.31 |
||
|
11248MA
|
11248MA
112484M410 Pad-Engine Mounting Member9905--01 ~ 0001--01; 2WD.QG18DE |
112484M410 |
from US $7.31 |
||
|
11275M
|
11275M
112744M400 Bracket-Engine Mounting Block, Front9905--01 ~ 0001--01; 2WD.QG18DE |
112744M400 |
US $28.22 |
||
|
11320
|
11320
113204M400 Insulator-Engine Mounting, Rear9905--01 ~ 0001--01; 2WD.QG18DE |
113204M400 |
US $69.31 |
||
|
11332M
|
11332M
113324M700 Bracket-Engine Mounting, Rear9905--01 ~ 0001--01; 2WD.QG18DE |
113324M700 |
US $80.64 |
||
|
11375
|
11375
11375-4M410 Damper Assy-Dynamic9905--01 ~ 0001--01; 2WD.QG18DE |
11375-4M410 |
US $37.15 |
||
|
11375
|
11375
11375-4M411 Damper Assy-Dynamic0010--01 ~ 0110--01; 2WD.QG18DE +QG18DEN |
11375-4M411 |
US $33.70 |
||
|
11510A
|
11510A
11298-4M417 Bolt9905--01 ~ 0001--01; 2WD.QG18DE |
11298-4M417 |
US $3.46 |
||
|
11510A
|
11510A
01125-03311 BOLT9905--01 ~ 0001--01; 2WD.QG18DE |
01125-03311 |
US $3.46 |
||
|
11510A
|
11510A
112984M408 Bolt9905--01 ~ 0001--01; 2WD.QG18DE |
112984M408 |
US $3.46 |
||
|
11510A
|
11510A
112984M418 Bolt9905--01 ~ 0001--01; 2WD.QG18DE |
112984M418 |
US $3.46 |
||
|
11510A
|
11510A
0112503041 BOLT9905--01 ~ 0001--01; 2WD.QG18DE |
0112503041 |
US $3.46 |
||
|
11510A
|
11510A
11298-4M405 Bolt9905--01 ~ 0001--01; 2WD.QG18DE |
11298-4M405 |
US $3.46 |
||
|
11510A
|
11510A
11298-4M406 Bolt9905--01 ~ 0001--01; 2WD.QG18DE |
11298-4M406 |
US $4.03 |
||
|
11510A
|
11510A
01125-03211 BOLT9905--01 ~ 0001--01; 2WD.QG18DE |
01125-03211 |
US $3.31 |
||
|
11510AA
|
11510AA
01125-03311 BOLT9905--01 ~ 0001--01; 2WD.QG18DE |
01125-03311 |
US $3.46 |
||
|
11510AB
|
11510AB
112984M408 Bolt9905--01 ~ 0001--01; 2WD.QG18DE |
112984M408 |
US $3.46 |
||
|
11510AC
|
11510AC
112984M418 Bolt9905--01 ~ 0001--01; 2WD.QG18DE |
112984M418 |
US $3.46 |
||
|
11510AD
|
11510AD
0112503041 BOLT9905--01 ~ 0001--01; 2WD.QG18DE |
0112503041 |
US $3.46 |
||
|
11510AE
|
11510AE
11298-4M405 Bolt9905--01 ~ 0001--01; 2WD.QG18DE |
11298-4M405 |
US $3.46 |
||
|
11510AF
|
11510AF
11298-4M406 Bolt9905--01 ~ 0001--01; 2WD.QG18DE |
11298-4M406 |
US $4.03 |
||
|
11510AG
|
11510AG
01125-03211 BOLT9905--01 ~ 0001--01; 2WD.QG18DE |
01125-03211 |
US $3.31 |
||
|
11520A
|
11520A
11298-4M500 Bolt9905--01 ~ 0001--01; 2WD.QG18DE |
11298-4M500 |
US $8.06 |
||
|
11520A
|
11520A
0112503021 BOLT9905--01 ~ 0001--01; 2WD.QG18DE |
0112503021 |
US $3.46 |
||
|
11520A
|
11520A
112984M408 Bolt9905--01 ~ 0001--01; 2WD.QG18DE |
112984M408 |
US $3.46 |
||
|
11520A
|
11520A
11298-4M419 Bolt9905--01 ~ 0001--01; 2WD.QG18DE |
11298-4M419 |
from US $1.81 |
||
|
11520A
|
11520A
11298-4M410 Bolt9905--01 ~ 0001--01; 2WD.QG18DE |
11298-4M410 |
US $3.46 |
||
|
11520A
|
11520A
11298-4M421 Bolt0005--01 ~ 0110--01; 2WD.QG18DE +QG18DEN |
11298-4M421 |
US $3.46 |
||
|
11520A
|
11520A
0112503021 BOLT9905--01 ~ 0001--01; 2WD.QG18DE |
0112503021 |
US $3.46 |
||
|
11520AA
|
11520AA
0112503021 BOLT9905--01 ~ 0001--01; 2WD.QG18DE |
0112503021 |
US $3.46 |
||
|
11520AB
|
11520AB
112984M408 Bolt9905--01 ~ 0001--01; 2WD.QG18DE |
112984M408 |
US $3.46 |
||
|
11520AC
|
11520AC
11298-4M419 Bolt9905--01 ~ 0001--01; 2WD.QG18DE |
11298-4M419 |
from US $1.81 |
||
|
11520AD
|
11520AD
11298-4M410 Bolt9905--01 ~ 0001--01; 2WD.QG18DE |
11298-4M410 |
US $3.46 |
||
|
11520AD
|
11520AD
11298-4M421 Bolt0005--01 ~ 0110--01; 2WD.QG18DE +QG18DEN |
11298-4M421 |
US $3.46 |
||
|
11520AD
|
11520AD
11298-4M410 Bolt9905--01 ~ 0001--01; 2WD.QG18DE |
11298-4M410 |
US $3.46 |
||
|
11520AD
|
11520AD
11298-4M421 Bolt0005--01 ~ 0110--01; 2WD.QG18DE +QG18DEN |
11298-4M421 |
US $3.46 |
||
|
11520AE
|
11520AE
0112503021 BOLT9905--01 ~ 0001--01; 2WD.QG18DE |
0112503021 |
US $3.46 |
||
|
11530A
|
11530A
112984M413 Bolt9905--01 ~ 0001--01; 2WD.QG18DE |
112984M413 |
from US $1.63 |
||
|
11530A
|
11530A
112982J221 Bolt9905--01 ~ 0001--01; 2WD.QG18DE |
112982J221 |
from US $1.79 |
||
|
11530A
|
11530A
11298-4M419 Bolt9905--01 ~ 0001--01; 2WD.QG18DE |
11298-4M419 |
from US $1.81 |
||
|
11530AA
|
11530AA
112982J221 Bolt9905--01 ~ 0001--01; 2WD.QG18DE |
112982J221 |
from US $1.79 |
||
|
11530AB
|
11530AB
11298-4M419 Bolt9905--01 ~ 0001--01; 2WD.QG18DE |
11298-4M419 |
from US $1.81 |
||
