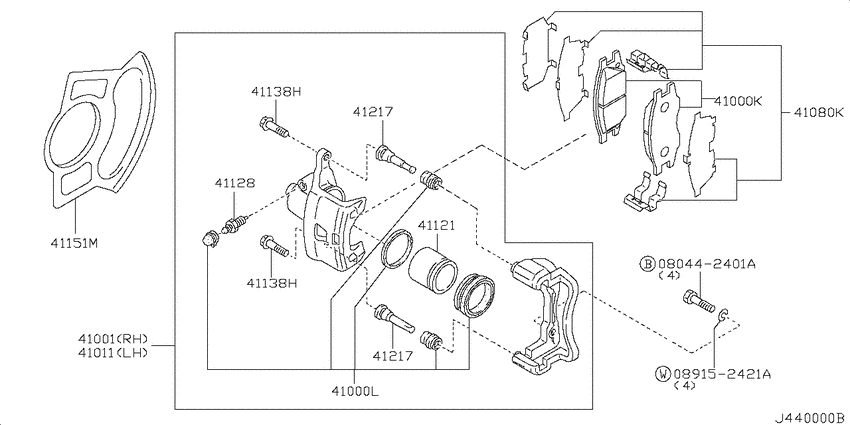

Front brake (1999-05-01 ~ 2000-10-01; QG15DE.(X+G) +QG18DE) Diagram Nissan WINGROAD/AD/EXPERT
- Year
- 1999 - 2001
- Sales region
- Japan
- Engine
- QG18DE
- drive
- 2WD
- transmission
- AT.F4
- grade
- Z
- body
- W
- specification
- BASIC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
080442401A
|
080442401A
080442401A Bolt-hexagon |
080442401A |
US $1.91 |
||
|
089152421A
|
089152421A
089152421A WASHER-SPRING |
089152421A |
from US $0.59 |
||
|
41000K
|
41000K
AY040-NS072 Pad Kit-Disc Brake9905--01 ~ 0008--01; QG15DE.(X+G) +QG18DE |
AY040-NS072 |
US $142.56 |
||
|
41000K
|
41000K
AY040-NS096 Pad Kit-Disc Brake0008--01 ~ 0010--01; QG15DE.(X+G) +QG18DE |
AY040-NS096 |
US $142.56 |
||
|
41000L
|
41000L
AY600NS008 Seal Kit-Disc Brake9905--01 ~ 0010--01; QG15DE.(X+G) +QG18DE |
AY600NS008 |
US $41.76 |
||
|
41001
|
41001
410014M400 Caliper Assy-Front Rh, W/o Pads Or Shims9905--01 ~ 0010--01; QG15DE.(X+G) +QG18DE |
410014M400 |
US $335.59 |
||
|
41011
|
41011
410114M400 Caliper Assy-Front Lh, W/o Pads Or Shims9905--01 ~ 0010--01; QG15DE.(X+G) +QG18DE |
410114M400 |
US $335.59 |
||
|
41080K
|
41080K
410804M425 Hardware Kit-Front Disc Brake Pad0001--01 ~ 0010--01; QG15DE.(X+G) +QG18DE |
410804M425 |
from US $59.76 |
||
|
41080K
|
41080K
41080-4M426
Hardware Kit-Front Disc Brake Pad
9905--01 ~ 0001--01; QG15DE.(X+G) +QG18DE |
41080-4M426 |
— | ||
|
41121
|
41121
4112140F00 Piston-Cylinder9905--01 ~ 0010--01; QG15DE.(X+G) +QG18DE |
4112140F00 |
US $35.14 |
||
|
41128
|
41128
4112888E01
SCREW-BLEEDER
9905--01 ~ 0010--01; QG15DE.(X+G) +QG18DE |
4112888E01 |
— | ||
| replacement | |||||
|
41128
|
41128
41128AW70A Screw-Bleeder9905--01 ~ 0010--01; QG15DE.(X+G) +QG18DE |
41128AW70A |
from US $7.63 |
||
|
41138H
|
41138H
44141-N9500
Pin-Bolt
9905--01 ~ 0010--01; QG15DE.(X+G) +QG18DE |
44141-N9500 |
— | ||
| replacement | |||||
|
41138H
|
41138H
44141AW70A Pin-Bolt9905--01 ~ 0010--01; QG15DE.(X+G) +QG18DE |
44141AW70A |
from US $3.35 |
||
|
41138H
|
41138H
44141-N9500
Pin-Bolt
9905--01 ~ 0010--01; QG15DE.(X+G) +QG18DE |
44141-N9500 |
— | ||
| replacement | |||||
|
41138H
|
41138H
44141AW70A Pin-Bolt9905--01 ~ 0010--01; QG15DE.(X+G) +QG18DE |
44141AW70A |
from US $3.35 |
||
|
41151M
|
41151M
411514M400 Plate-Baffle9905--01 ~ 0010--01; QG15DE.(X+G) +QG18DE |
411514M400 |
US $28.01 |
||
|
41217
|
41217
4113901A01 Pin9905--01 ~ 0010--01; QG15DE.(X+G) +QG18DE |
4113901A01 |
from US $7.63 |
||
|
41217
|
41217
4113901A01 Pin9905--01 ~ 0010--01; QG15DE.(X+G) +QG18DE |
4113901A01 |
from US $7.63 |
||
