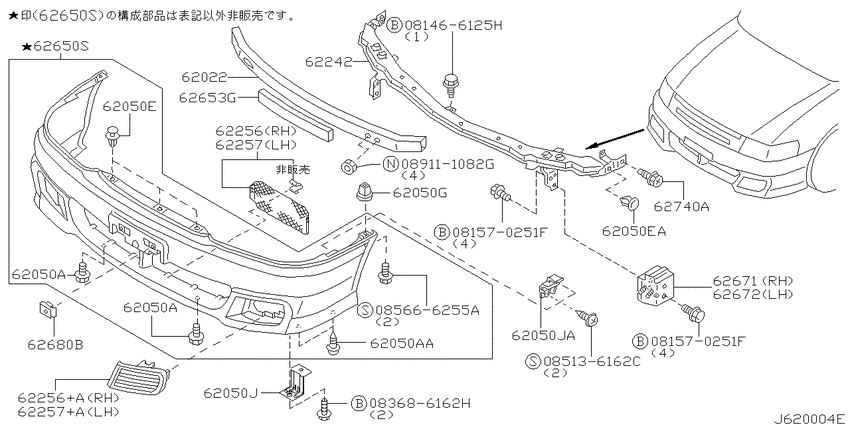

Front bumper (1999-05-01 ~ 2000-01-01; ｴｱﾛﾊﾞﾝﾊﾟｰ用; W.(QG15DE+QG18DE)) Diagram Nissan WINGROAD/AD/EXPERT
- Year
- 1999 - 2001
- Sales region
- Japan
- Engine
- QG18DE
- drive
- 2WD
- transmission
- AT.F4
- grade
- Z
- body
- W
- specification
- BASIC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
081466125H
|
081466125H
081466125H
Bolt-hexagon
|
081466125H |
— | ||
|
081570251F
|
081570251F
081570251F BOLT |
081570251F |
from US $0.80 |
||
|
081570251F
|
081570251F
081570251F BOLT |
081570251F |
from US $0.80 |
||
|
083686162H
|
083686162H
083686162H
SCRHEX HDPP W
|
083686162H |
— | ||
|
085136162C
|
085136162C
08513-6162C Screw |
08513-6162C |
US $1.87 |
||
|
085666255A
|
085666255A
08566-6255A
SCREWTAPPING
|
08566-6255A |
— | ||
|
089111082G
|
089111082G
089111082G NUTHEX |
089111082G |
from US $0.52 |
||
|
62022
|
62022
620304M400 Reinforce-Front Bumper Center, Inner9905--01 ~ 0010--01; W.(QG15DE+QG18DE) |
620304M400 |
US $130.03 |
||
|
62050A
|
62050A
0143600393 SCREW0001--01 ~ 0010--01; W.(QG15DE+QG18DE) |
0143600393 |
US $0.97 |
||
|
62050A
|
62050A
0143601711 SCREW9905--01 ~ 0001--01; W.(QG15DE+QG18DE) |
0143601711 |
US $1.15 |
||
|
62050A
|
62050A
0145100841 SCREW9905--01 ~ 0010--01; W.(QG15DE+QG18DE) |
0145100841 |
from US $0.94 |
||
|
62050A
|
62050A
0143600393 SCREW0001--01 ~ 0010--01; W.(QG15DE+QG18DE) |
0143600393 |
US $0.97 |
||
|
62050A
|
62050A
0143601711 SCREW9905--01 ~ 0001--01; W.(QG15DE+QG18DE) |
0143601711 |
US $1.15 |
||
|
62050A
|
62050A
0145100841 SCREW9905--01 ~ 0010--01; W.(QG15DE+QG18DE) |
0145100841 |
from US $0.94 |
||
|
62050AA
|
62050AA
0145100841 SCREW9905--01 ~ 0010--01; W.(QG15DE+QG18DE) |
0145100841 |
from US $0.94 |
||
|
62050E
|
62050E
0155309321 CLIP9905--01 ~ 0010--01; W.(QG15DE+QG18DE) |
0155309321 |
US $0.97 |
||
|
62050E
|
62050E
0155304033 CLIP9905--01 ~ 0010--01; W.(QG15DE+QG18DE) |
0155304033 |
US $1.15 |
||
|
62050EA
|
62050EA
0155304033 CLIP9905--01 ~ 0010--01; W.(QG15DE+QG18DE) |
0155304033 |
US $1.15 |
||
|
62050G
|
62050G
0128100111 GROMMET-SCREW9905--01 ~ 0010--01; W.(QG15DE+QG18DE) |
0128100111 |
from US $0.85 |
||
|
62050J
|
62050J
62040WD400 Bracket-Front Bumper9905--01 ~ 0110--01; *W.Z |
62040WD400 |
US $13.10 |
||
|
62050J
|
62050J
85222-0M000
Bracket-Rear Bumper Side, Rh
9905--01 ~ 0001--01; *W.(Z+X+G) |
85222-0M000 |
— | ||
| replacement | |||||
|
62050J
|
62050J
852220M00A Bracket-Front Bumper9905--01 ~ 0001--01; *W.(Z+X+G) |
852220M00A |
from US $5.72 |
||
|
62050J
|
62050J
852227J000 Bracket-Rear Bumper Side0001--01 ~ 0010--01; W.(QG15DE+QG18DE) |
852227J000 |
US $6.48 |
||
|
62050JA
|
62050JA
85222-0M000
Bracket-Rear Bumper Side, Rh
9905--01 ~ 0001--01; *W.(Z+X+G) |
85222-0M000 |
— | ||
| replacement | |||||
|
62050JA
|
62050JA
852220M00A Bracket-Front Bumper9905--01 ~ 0001--01; *W.(Z+X+G) |
852220M00A |
from US $5.72 |
||
|
62050JA
|
62050JA
852227J000 Bracket-Rear Bumper Side0001--01 ~ 0010--01; W.(QG15DE+QG18DE) |
852227J000 |
US $6.48 |
||
|
62242
|
62242
62290-WD000 Retainer-Front Bumper, Upper9905--01 ~ 9912--01; *W.(Z+X+G) |
62290-WD000 |
US $86.40 |
||
|
62242
|
62242
62290WD900 Retainer-Front Bumper, Upper0002--01 ~ 0010--01; W.(QG15DE+QG18DE) |
62290WD900 |
US $121.82 |
||
|
62242
|
62242
F2290-WD000 Retainer-Front Bumper, Upper9912--01 ~ 0001--01; *W.(Z+X+G) |
F2290-WD000 |
US $146.88 |
||
|
62256
|
62256
62254WD400 Grille-Front Bumper, Rh9905--01 ~ 0110--01; W.Z |
62254WD400 |
US $161.28 |
||
|
62256
|
62256
62256AD000 Grille-Front Bumper, Rh9905--01 ~ 0110--01; W.Z |
62256AD000 |
US $20.45 |
||
|
62256+A
|
62256+A
62256AD000 Grille-Front Bumper, Rh9905--01 ~ 0110--01; W.Z |
62256AD000 |
US $20.45 |
||
|
62257
|
62257
62255WD400 Grille-Front Bumper, Lh9905--01 ~ 0110--01; W.Z |
62255WD400 |
US $161.28 |
||
|
62257
|
62257
62257AD000 Grille-Front Bumper, Lh9905--01 ~ 0110--01; W.Z |
62257AD000 |
US $20.45 |
||
|
62257+A
|
62257+A
62257AD000 Grille-Front Bumper, Lh9905--01 ~ 0110--01; W.Z |
62257AD000 |
US $20.45 |
||
|
62650S
|
62650S
F2022WD0MK Fascia Kit-Front Bumper0010--01 ~ 0110--01; W.(QG15DE+QG18DE) |
F2022WD0MK |
US $868.01 |
||
|
62650S
|
62650S
F2022WD4MA Fascia Kit-Front Bumper9905--01 ~ 0010--01; W.Z |
F2022WD4MA |
US $868.01 |
||
|
62650S
|
62650S
F2022-WD4MB Fascia Kit-Front Bumper9905--01 ~ 0010--01; W.Z |
F2022-WD4MB |
US $868.01 |
||
|
62650S
|
62650S
F2022-WD4MC Fascia Kit-Front Bumper9905--01 ~ 0010--01; W.Z |
F2022-WD4MC |
US $868.01 |
||
|
62650S
|
62650S
F2022-WD4MD Fascia Kit-Front Bumper9905--01 ~ 0010--01; W.Z |
F2022-WD4MD |
US $868.01 |
||
|
62650S
|
62650S
F2022WD4ME Fascia Kit-Front Bumper9905--01 ~ 0010--01; W.Z |
F2022WD4ME |
US $868.01 |
||
|
62650S
|
62650S
F2022WD4MF Fascia Kit-Front Bumper9905--01 ~ 0010--01; W.Z |
F2022WD4MF |
US $868.01 |
||
|
62650S
|
62650S
F2022WD4MG Fascia Kit-Front Bumper9905--01 ~ 0010--01; W.Z |
F2022WD4MG |
US $868.01 |
||
|
62650S
|
62650S
F2022-WD4MK Fascia Kit-Front Bumper0001--01 ~ 0010--01; W.Z |
F2022-WD4MK |
US $868.01 |
||
|
62650S
|
62650S
F2022-WD0MB Fascia Kit-Front Bumper0010--01 ~ 0110--01; W.(QG15DE+QG18DE) |
F2022-WD0MB |
US $790.13 |
||
|
62650S
|
62650S
F2022-WD0MC Fascia Kit-Front Bumper0010--01 ~ 0110--01; W.(QG15DE+QG18DE) |
F2022-WD0MC |
US $664.10 |
||
|
62650S
|
62650S
F2022-WD0MD Fascia Kit-Front Bumper0010--01 ~ 0110--01; W.(QG15DE+QG18DE) |
F2022-WD0MD |
US $790.13 |
||
|
62650S
|
62650S
F2022-WD0ME Fascia Kit-Front Bumper0010--01 ~ 0110--01; *W.(QG15DE+QG18DE) |
F2022-WD0ME |
US $790.13 |
||
|
62650S
|
62650S
F2022WD0MF Fascia Kit-Front Bumper0010--01 ~ 0110--01; W.(QG15DE+QG18DE) |
F2022WD0MF |
US $790.13 |
||
|
62650S
|
62650S
F2022WD0MG Fascia Kit-Front Bumper0010--01 ~ 0110--01; W.(QG15DE+QG18DE) |
F2022WD0MG |
US $790.13 |
||
|
62650S
|
62650S
F2022-WD9AA Fascia Kit-Front Bumper0010--01 ~ 0110--01; W.(QG15DE+QG18DE) |
F2022-WD9AA |
US $790.13 |
||
|
62650S
|
62650S
F2022-WD9AM Fascia Kit-Front Bumper0010--01 ~ 0110--01; *W.(QG15DE+QG18DE) |
F2022-WD9AM |
US $790.13 |
||
|
62650S
|
62650S
F2022WD0MA Fascia Kit-Front Bumper0010--01 ~ 0110--01; W.(QG15DE+QG18DE) |
F2022WD0MA |
US $913.10 |
||
|
62653G
|
62653G
62094WD000 Spacer-Front Bumper Side9905--01 ~ 0010--01; W.(QG15DE+QG18DE) |
62094WD000 |
US $6.34 |
||
|
62671
|
62671
622104M400 Stay-Front Bumper, Rh9905--01 ~ 0010--01; *W.(Z+X+G) |
622104M400 |
US $40.03 |
||
|
62672
|
62672
622114M400 Stay-Front Bumper, Lh9905--01 ~ 0010--01; *W.(Z+X+G) |
622114M400 |
from US $40.03 |
||
|
62680B
|
62680B
0124101051 NUT-SPRING9905--01 ~ 0010--01; W.(QG15DE+QG18DE) |
0124101051 |
from US $0.98 |
||
|
62740A
|
62740A
0146600051 SCREW9905--01 ~ 0010--01; W.(QG15DE+QG18DE) |
0146600051 |
US $0.82 |
||
|
62740A
|
62740A
0146600051 SCREW0001--01 ~ 0010--01; W.(QG15DE+QG18DE) |
0146600051 |
US $0.82 |
||
