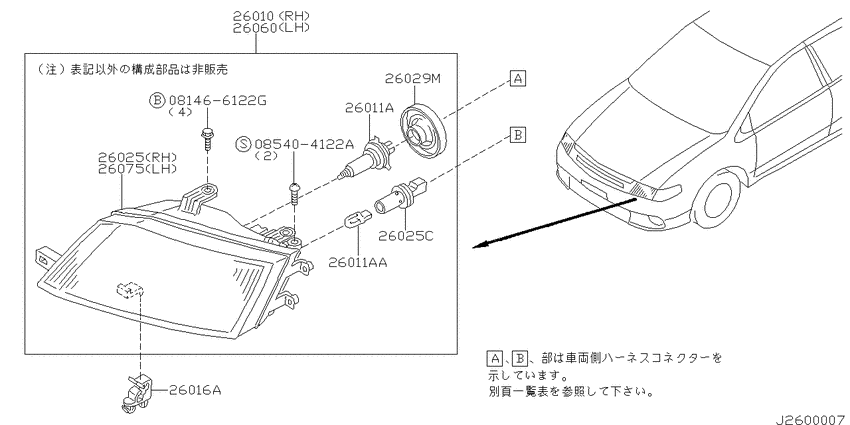

Head lamp (1999-05-01 ~ 2000-01-01; ヘッドランプ; W +V) Diagram Nissan WINGROAD/AD/EXPERT
- Year
- 1999 - 2001
- Sales region
- Japan
- Engine
- QG18DE
- drive
- 2WD
- transmission
- AT.F4
- grade
- Z
- body
- W
- specification
- BASIC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
081466122G
|
081466122G
081466122G Bolt-hexagon |
081466122G |
from US $0.68 |
||
|
085404122A
|
085404122A
08540-4122A SCREWTAPPING |
08540-4122A |
from US $0.63 |
||
|
26010
|
26010
26010-WD026 Lamp Assy-Rh0010--01 ~ 0110--01; W.(QG15DE+QG18DE) |
26010-WD026 |
US $368.16 |
||
|
26010
|
26010
26010WD425 Lamp Assy-Rh9905--01 ~ 0001--01; W.SR20VE +W.Z |
26010WD425 |
US $437.54 |
||
|
26010
|
26010
26010-WD426 Lamp Assy-Rh0001--01 ~ 0010--01; W.SR20VE +W.Z |
26010-WD426 |
US $437.54 |
||
|
26011A
|
26011A
AY08010022 Bulb9905--01 ~ 0010--01; W.SR20VE +W.(Z+X+G); 12V-60/55W |
AY08010022 |
US $33.12 |
||
|
26011A
|
26011A
AY08000062
Bulb
9905--01 ~ 0001--01; W +V; 12V-5W |
AY08000062 |
— | ||
| replacement | |||||
|
26011A
|
26011A
AY080-00090 BULB LICENCE_AS9905--01 ~ 0001--01; W +V; 12V-5W |
AY080-00090 |
US $1.07 |
||
|
26011AA
|
26011AA
AY08000062
Bulb
9905--01 ~ 0001--01; W +V; 12V-5W |
AY08000062 |
— | ||
| replacement | |||||
|
26011AA
|
26011AA
AY080-00090 BULB LICENCE_AS9905--01 ~ 0001--01; W +V; 12V-5W |
AY080-00090 |
US $1.07 |
||
|
26016A
|
26016A
263984M400 Clip9905--01 ~ 0001--01; W +V |
263984M400 |
from US $1.50 |
||
|
26025
|
26025
26025-WD011 Housing Assy-Head Lamp, Rh0010--01 ~ 0110--01; W.(QG15DE+QG18DE) |
26025-WD011 |
US $283.68 |
||
|
26025
|
26025
26025WD410 Housing Assy-Head Lamp, Rh9905--01 ~ 0001--01; W.SR20VE +W.Z |
26025WD410 |
US $332.76 |
||
|
26025
|
26025
26025WD411 Housing Assy-Head Lamp, Rh0001--01 ~ 0010--01; W.SR20VE +W.Z |
26025WD411 |
US $332.76 |
||
|
26025
|
26025
2624078C00 Harness Assy-Head Lamp9905--01 ~ 0001--01; W +V |
2624078C00 |
US $16.63 |
||
|
26025C
|
26025C
2624078C00 Harness Assy-Head Lamp9905--01 ~ 0001--01; W +V |
2624078C00 |
US $16.63 |
||
|
26029M
|
26029M
260294M400 Cover-Socket9905--01 ~ 0001--01; W +V |
260294M400 |
US $15.70 |
||
|
26060
|
26060
26060-WD026 Lamp Assy-Lh0010--01 ~ 0110--01; W.(QG15DE+QG18DE) |
26060-WD026 |
US $368.16 |
||
|
26060
|
26060
26060-WD425 Lamp Assy-Lh9905--01 ~ 0001--01; W.SR20VE +W.Z |
26060-WD425 |
US $437.54 |
||
|
26060
|
26060
26060-WD426 Lamp Assy-Lh0001--01 ~ 0010--01; W.SR20VE +W.Z |
26060-WD426 |
from US $259.06 |
||
|
26075
|
26075
26075-WD011 Housing Assy-Head Lamp, Lh0010--01 ~ 0110--01; W.(QG15DE+QG18DE) |
26075-WD011 |
US $283.68 |
||
|
26075
|
26075
26075-WD410 Housing Assy-Head Lamp, Lh9905--01 ~ 0001--01; W.SR20VE +W.Z |
26075-WD410 |
US $332.76 |
||
|
26075
|
26075
26075WD411 Housing Assy-Head Lamp, Lh0001--01 ~ 0010--01; W.SR20VE +W.Z |
26075WD411 |
from US $299.15 |
||
