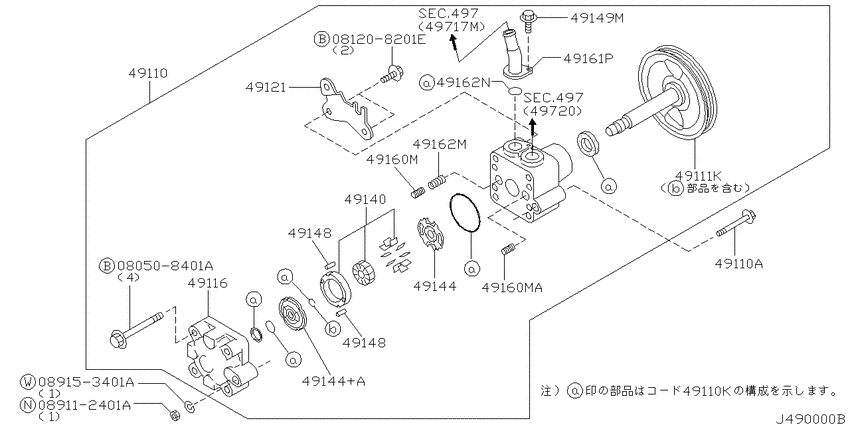

Power steering pump (2000-10-01 ~ 2001-10-01; QG13DE +QG15DE +QG18DE +QG18DEN) Diagram Nissan WINGROAD/AD/EXPERT
- Year
- 1999 - 2001
- Sales region
- Japan
- Engine
- QG18DE
- drive
- 2WD
- transmission
- AT.F4
- grade
- Z
- body
- W
- specification
- BASIC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
080508401A
|
080508401A
08050-8401A
Bolt-hexagon
|
08050-8401A |
— | ||
|
081208201E
|
081208201E
081208201E Bolt-hexagon |
081208201E |
US $2.21 |
||
|
089112401A
|
089112401A
089112401A Nut |
089112401A |
from US $0.54 |
||
|
089153401A
|
089153401A
089153401A Washer-Spring |
089153401A |
US $0.65 |
||
|
49110
|
49110
49110-WD100 Pump Assy-Power Steering9905--01 ~ 0001--01; QG18DE |
49110-WD100 |
US $1,540 |
||
|
49110
|
49110
49110WD700 Pump Assy-Power Steering0010--01 ~ 0110--01; QG18DE +QG18DEN |
49110WD700 |
US $1,298.47 |
||
|
49110
|
49110
49149-4M400 Bolt9905--01 ~ 0001--01; QG13DE +QG15DE +QG18DE |
49149-4M400 |
US $4.32 |
||
|
49110
|
49110
49591-6C925 Seal Kit-Power Steering Pump9905--01 ~ 0001--01; QG13DE +QG15DE +QG18DE |
49591-6C925 |
from US $15.25 |
||
|
49110A
|
49110A
49149-4M400 Bolt9905--01 ~ 0001--01; QG13DE +QG15DE +QG18DE |
49149-4M400 |
US $4.32 |
||
|
49110K
|
49110K
49591-6C925 Seal Kit-Power Steering Pump9905--01 ~ 0001--01; QG13DE +QG15DE +QG18DE |
49591-6C925 |
from US $15.25 |
||
|
49111K
|
49111K
49132-WA225 Pulley Kit-Power Steering Pump9905--01 ~ 0001--01; QG18DE |
49132-WA225 |
US $118.37 |
||
|
49111K
|
49111K
49132-WD025 Pulley Kit-Power Steering Pump0010--01 ~ 0110--01; QG13DE +QG15DE +QG18DE +QG18DEN |
49132-WD025 |
US $129.02 |
||
|
49116
|
49116
49116-WA000 Cover-Rear, Power Steering Pump9905--01 ~ 0001--01; QG13DE +QG15DE +QG18DE |
49116-WA000 |
US $38.16 |
||
|
49121
|
49121
49121-WA000 Bracket Assy-Power Steering Pump9905--01 ~ 0001--01; QG13DE +QG15DE +QG18DE |
49121-WA000 |
US $45.79 |
||
|
49140
|
49140
49140-4M400 Rotor & Camring Set-Power Steering Pump9905--01 ~ 0001--01; QG13DE +QG15DE +QG18DE |
49140-4M400 |
US $131.62 |
||
|
49144
|
49144
49144-6C900 Plate-Side, Power Steering Pump9905--01 ~ 0001--01; QG13DE +QG15DE +QG18DE |
49144-6C900 |
US $38.16 |
||
|
49144
|
49144
49144-6C910 Plate-Side, Power Steering Pump9905--01 ~ 0001--01; QG13DE +QG15DE +QG18DE |
49144-6C910 |
US $38.16 |
||
|
49144+A
|
49144+A
49144-6C910 Plate-Side, Power Steering Pump9905--01 ~ 0001--01; QG13DE +QG15DE +QG18DE |
49144-6C910 |
US $38.16 |
||
|
49148
|
49148
49148-6C900 Pin-Camring, Power Steering Pump9905--01 ~ 0001--01; QG13DE +QG15DE +QG18DE |
49148-6C900 |
US $2.74 |
||
|
49148
|
49148
49148-6C900 Pin-Camring, Power Steering Pump9905--01 ~ 0001--01; QG13DE +QG15DE +QG18DE |
49148-6C900 |
US $2.74 |
||
|
49149M
|
49149M
49164-6C900 Bolt-Power Steering Pump9905--01 ~ 0001--01; QG18DE |
49164-6C900 |
US $2.45 |
||
|
49160M
|
49160M
49165-6C900 Valve Assy-Flow Control9905--01 ~ 0001--01; QG13DE +QG15DE +QG18DE |
49165-6C900 |
US $57.60 |
||
|
49160M
|
49160M
49168-4M400 Valve Assy-Flow Control9905--01 ~ 0001--01; QG13DE +QG15DE +QG18DE |
49168-4M400 |
US $69.84 |
||
|
49160M
|
49160M
49168-5M600 Valve Assy-Flow Control0010--01 ~ 0110--01; QG13DE +QG15DE +QG18DE +QG18DEN |
49168-5M600 |
US $63.36 |
||
|
49160MA
|
49160MA
49168-4M400 Valve Assy-Flow Control9905--01 ~ 0001--01; QG13DE +QG15DE +QG18DE |
49168-4M400 |
US $69.84 |
||
|
49160MA
|
49160MA
49168-5M600 Valve Assy-Flow Control0010--01 ~ 0110--01; QG13DE +QG15DE +QG18DE +QG18DEN |
49168-5M600 |
US $63.36 |
||
|
49161P
|
49161P
49161-4M400 Connector-Inlet9905--01 ~ 0001--01; QG13DE +QG15DE +QG18DE |
49161-4M400 |
US $27.65 |
||
|
49162M
|
49162M
49167-6C900 Spring-Flow Control Valve0010--01 ~ 0110--01; QG13DE +QG15DE +QG18DE +QG18DEN |
49167-6C900 |
US $10.22 |
||
|
49162M
|
49162M
49167-WA000 Spring-Flow Control Valve9905--01 ~ 0001--01; QG13DE +QG15DE +QG18DE |
49167-WA000 |
US $13.54 |
||
|
49162N
|
49162N
49162-6C900 Seal-Inlet Connector9905--01 ~ 0001--01; QG13DE +QG15DE +QG18DE |
49162-6C900 |
US $4.99 |
||
|
497
|
Power steering piping
497
|
||||
|
497
|
Power steering piping
497
|
||||
|
497
|
Power steering piping
497
|
||||
|
497
|
Power steering piping
497
|
||||
|
497
|
Power steering piping
497
|
||||
|
497
|
Power steering piping
497
|
||||
