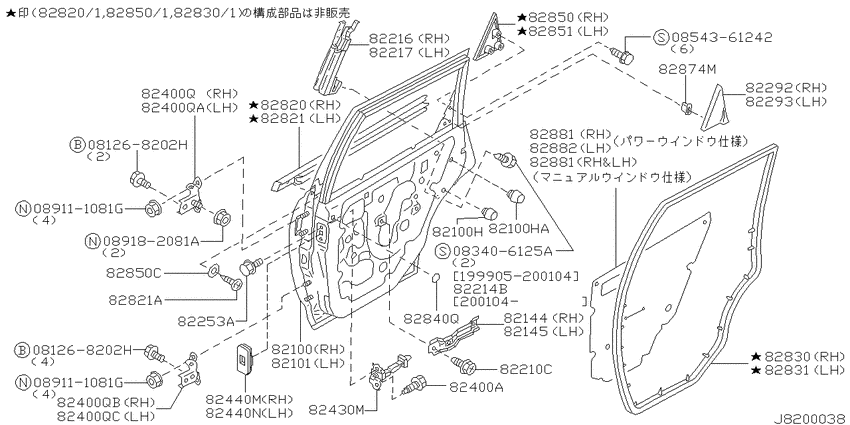

Rear door panel & fitting (2000-10-01 ~ 2001-10-01; W +V) Diagram Nissan WINGROAD/AD/EXPERT
- Year
- 1999 - 2001
- Sales region
- Japan
- Engine
- QG18DE
- drive
- 2WD
- transmission
- AT.F4
- grade
- Z
- body
- W
- specification
- BASIC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
081268202H
|
081268202H
08126-8202H Bolt-hexagon |
08126-8202H |
US $3.06 |
||
|
081268202H
|
081268202H
08126-8202H Bolt-hexagon |
08126-8202H |
US $3.06 |
||
|
083406125A
|
083406125A
08340-6125A
ｽｸﾘﾕ-,ﾏｼﾝ
|
08340-6125A |
— | ||
|
0854361242
|
0854361242
08543-61242
ｽｸﾘﾕ-,ﾀﾂﾋﾟﾝｸﾞ
|
08543-61242 |
— | ||
|
089111081G
|
089111081G
089111081G NUTHEX |
089111081G |
from US $0.48 |
||
|
089111081G
|
089111081G
089111081G NUTHEX |
089111081G |
from US $0.48 |
||
|
089182081A
|
089182081A
089182081A NUTHEX |
089182081A |
US $2.21 |
||
|
82100
|
82100
H2100-WD0AM Door-Rear, Rh9905--01 ~ 0001--01; 0*W +*V.QG13DE.(DX+VE) +*V.(QG15DE+QG18DE+YD22DD) |
H2100-WD0AM |
US $821.28 |
||
|
82100
|
82100
H2100-WD0MM Door-Rear, Rh9905--01 ~ 0001--01; W +V |
H2100-WD0MM |
US $751.90 |
||
|
82100
|
82100
80872W1011 Bumper Rubber-Door9905--01 ~ 0001--01; W.SR20VE +W.(Z+X+G) |
80872W1011 |
from US $3.32 |
||
|
82100
|
82100
80872W1010 Bumper Rubber-Door9905--01 ~ 0001--01; W.SR20VE +W.(Z+X+G) |
80872W1010 |
from US $5.57 |
||
|
82100H
|
82100H
80872W1011 Bumper Rubber-Door9905--01 ~ 0001--01; W.SR20VE +W.(Z+X+G) |
80872W1011 |
from US $3.32 |
||
|
82100H
|
82100H
80872W1010 Bumper Rubber-Door9905--01 ~ 0001--01; W.SR20VE +W.(Z+X+G) |
80872W1010 |
from US $5.57 |
||
|
82100HA
|
82100HA
80872W1010 Bumper Rubber-Door9905--01 ~ 0001--01; W.SR20VE +W.(Z+X+G) |
80872W1010 |
from US $5.57 |
||
|
82101
|
82101
H2101-WD0AM Door-Rear, Lh9905--01 ~ 0001--01; 0*W +*V.QG13DE.(DX+VE) +*V.(QG15DE+QG18DE+YD22DD) |
H2101-WD0AM |
US $821.28 |
||
|
82101
|
82101
H2101-WD0MM Door-Rear, Lh9905--01 ~ 0001--01; W +V |
H2101-WD0MM |
US $751.90 |
||
|
82144
|
82144
82144-WD010 Frame-Rear Door Inner, Rh9905--01 ~ 0001--01; W +V |
82144-WD010 |
US $21.31 |
||
|
82145
|
82145
82145-WD010 Frame-Rear Door Inner, Lh9905--01 ~ 0001--01; W +V |
82145-WD010 |
US $21.31 |
||
|
82210C
|
82210C
01456-00641 SCREW9905--01 ~ 0001--01; W +V |
01456-00641 |
US $0.86 |
||
|
82214B
|
82214B
01434-00143 SCREW0104--01 ~ 0110--01; W +V |
01434-00143 |
US $1.73 |
||
|
82216
|
82216
82216-WD000 Sash Assy-Rear Door, Rear Rh9905--01 ~ 0001--01; W +V |
82216-WD000 |
US $48.67 |
||
|
82217
|
82217
82217-WD000 Sash Assy-Rear Door, Rear Lh9905--01 ~ 0001--01; W +V |
82217-WD000 |
US $48.67 |
||
|
82253A
|
82253A
01125-00603 BOLT9905--01 ~ 0001--01; W +V |
01125-00603 |
US $3.46 |
||
|
82292
|
82292
82292WD000 Cover-Rear Door Corner, Inner Rh9905--01 ~ 0010--01; W.SR20VE +W.(Z+X+G) |
82292WD000 |
US $28.22 |
||
|
82293
|
82293
82293WD000 Cover-Rear Door Corner, Inner Lh9905--01 ~ 0010--01; W.SR20VE +W.(Z+X+G) |
82293WD000 |
US $28.22 |
||
|
82400A
|
82400A
80498-40U00
Bolt
9905--01 ~ 0001--01; W +V |
80498-40U00 |
— | ||
| replacement | |||||
|
82400A
|
82400A
80498-40U0B Bolt9905--01 ~ 0001--01; W +V |
80498-40U0B |
from US $0.87 |
||
|
82400Q
|
82400Q
82400-WD000 Hinge Assy-Rear Door9905--01 ~ 0001--01; W +V; UPR RH |
82400-WD000 |
US $35.71 |
||
|
82400Q
|
82400Q
82401-WD000 Hinge Assy-Rear Door9905--01 ~ 0001--01; W +V; UPR LH |
82401-WD000 |
US $35.71 |
||
|
82400Q
|
82400Q
80401WD000 Hinge Assy-Front Door9905--01 ~ 0001--01; W +V; LWR RH |
80401WD000 |
US $35.71 |
||
|
82400Q
|
82400Q
80400WD000 Hinge Assy-Front Door9905--01 ~ 0001--01; W +V; LWR LH |
80400WD000 |
US $35.71 |
||
|
82400QA
|
82400QA
82401-WD000 Hinge Assy-Rear Door9905--01 ~ 0001--01; W +V; UPR LH |
82401-WD000 |
US $35.71 |
||
|
82400QB
|
82400QB
80401WD000 Hinge Assy-Front Door9905--01 ~ 0001--01; W +V; LWR RH |
80401WD000 |
US $35.71 |
||
|
82400QC
|
82400QC
80400WD000 Hinge Assy-Front Door9905--01 ~ 0001--01; W +V; LWR LH |
80400WD000 |
US $35.71 |
||
|
82430M
|
82430M
82430-WD000 Check Link Assy-Rear Door, Rh9905--01 ~ 0001--01; W +V |
82430-WD000 |
US $32.54 |
||
|
82440M
|
82440M
82840-WD000 Cover-Check Link, Rh9905--01 ~ 0001--01; W +V |
82840-WD000 |
US $5.18 |
||
|
82440N
|
82440N
82841WD000 Cover-Check Link, Lh9905--01 ~ 0001--01; W +V |
82841WD000 |
US $5.18 |
||
|
82820
|
82820
82820WD000 Moulding-Rear Door Outside, Rh9905--01 ~ 0001--01; W +V |
82820WD000 |
US $50.83 |
||
|
82821
|
82821
82821WD000 Moulding-Rear Door Outside, Lh9905--01 ~ 0001--01; W +V |
82821WD000 |
US $50.83 |
||
|
82821
|
82821
01414-00113 SCREW9905--01 ~ 0001--01; W +V |
01414-00113 |
US $1.73 |
||
|
82821A
|
82821A
01414-00113 SCREW9905--01 ~ 0001--01; W +V |
01414-00113 |
US $1.73 |
||
|
82830
|
82830
82830-WD000 Weatherstrip-Rear Door, Rh9905--01 ~ 0001--01; W +V |
82830-WD000 |
US $83.95 |
||
|
82830
|
82830
82830-WD010 Weatherstrip-Rear Door, Rh0001--01 ~ 0010--01; W +V |
82830-WD010 |
US $83.95 |
||
|
82831
|
82831
82831-WD000 Weatherstrip-Rear Door, Lh9905--01 ~ 0001--01; W +V |
82831-WD000 |
US $83.95 |
||
|
82831
|
82831
82831-WD010 Weatherstrip-Rear Door, Lh0001--01 ~ 0010--01; W +V |
82831-WD010 |
US $83.95 |
||
|
82840Q
|
82840Q
64892W5000 Unit Assy-Divider Tachometer9905--01 ~ 0001--01; W +V |
64892W5000 |
US $0.97 |
||
|
82850
|
82850
82290-WD000 Finisher-Rear Door Outside, Rh0001--01 ~ 0010--01; W +V |
82290-WD000 |
US $37.44 |
||
|
82850
|
82850
82290WD010 Finisher-Rear Door Outside, Rh9905--01 ~ 0001--01; W.SR20VE +W.(Z+X+G) |
82290WD010 |
US $49.25 |
||
|
82850
|
82850
0131100313 WASHER9905--01 ~ 0001--01; W +V |
0131100313 |
US $1.73 |
||
|
82850C
|
82850C
0131100313 WASHER9905--01 ~ 0001--01; W +V |
0131100313 |
US $1.73 |
||
|
82851
|
82851
82291-WD000 Finisher-Rear Door Outside, Lh0001--01 ~ 0010--01; W +V |
82291-WD000 |
US $37.44 |
||
|
82851
|
82851
82291-WD010 Finisher-Rear Door Outside, Lh9905--01 ~ 0001--01; W.SR20VE +W.(Z+X+G) |
82291-WD010 |
US $49.25 |
||
|
82874M
|
82874M
7684851S00 Grommet9905--01 ~ 0001--01; W +V |
7684851S00 |
from US $1.35 |
||
|
82881
|
82881
82860WD000 Screen-Sealing, Rear Rh9905--01 ~ 0010--01; W.SR20VE +W.(Z+X+G) |
82860WD000 |
US $21.31 |
||
|
82881
|
82881
82860WD000 Screen-Sealing, Rear Rh9905--01 ~ 0010--01; W.SR20VE +W.(Z+X+G) |
82860WD000 |
US $21.31 |
||
|
82882
|
82882
82861WD000 Screen-Sealing, Rear Lh9905--01 ~ 0010--01; W.SR20VE +W.(Z+X+G) |
82861WD000 |
US $21.31 |
||
