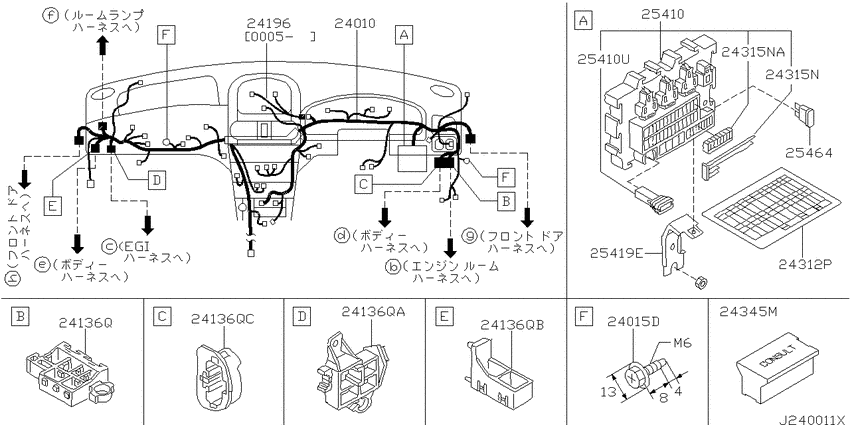

Wiring (2000-01-01 ~ 2000-10-01; ﾒｲﾝ ﾊｰﾈｽ; 3W.(QG15DE+QG18DE) +V.(QG13DE+QG15DE+QG18DE+QG18DEN)) Diagram Nissan WINGROAD/AD/EXPERT
- Year
- 1999 - 2001
- Sales region
- Japan
- Engine
- QG18DE
- drive
- 2WD
- transmission
- AT.F4
- grade
- Z
- body
- W
- specification
- BASIC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
24010
|
24010
24010-WD003 Harness Assy-Main9905--01 ~ 0001--01; *W.(Z+G) |
24010-WD003 |
US $2,688 |
||
|
24010
|
24010
24010-WD004 Harness Assy-Main9905--01 ~ 0001--01; *W.(Z+X) |
24010-WD004 |
US $2,688 |
||
|
24010
|
24010
24010-WD005 Harness Assy-Main9905--01 ~ 0001--01; *W.(Z+X+G) |
24010-WD005 |
US $2,688 |
||
|
24010
|
24010
24010-WD007 Harness Assy-Main9905--01 ~ 0010--01; W.Z +W.X.AT.F4 |
24010-WD007 |
US $2,688 |
||
|
24010
|
24010
24010-WD911 Harness Assy-Main0010--01 ~ 0110--01; *W.(G+Z) |
24010-WD911 |
US $2,688 |
||
|
24010
|
24010
24010-WD913 Harness Assy-Main0010--01 ~ 0110--01; *W.QG18DE.G.AT.F4 +*W.Z |
24010-WD913 |
US $2,688 |
||
|
24010
|
24010
24010-WD916 Harness Assy-Main0010--01 ~ 0110--01; W.QG18DE.G.AT.F4 +W.Z |
24010-WD916 |
US $2,688 |
||
|
24010
|
24010
24010-WD917 Harness Assy-Main0105--01 ~ 0110--01; *W.QG18DE.G.AT.F4 +*W.Z |
24010-WD917 |
US $2,688 |
||
|
24010
|
24010
24010-WD918 Harness Assy-Main0105--01 ~ 0110--01; *W.(G+Z) |
24010-WD918 |
US $2,688 |
||
|
24015D
|
24015D
01456-00641 SCREW9905--01 ~ 0001--01; +W.(QG15DE+QG18DE) +V.(QG13DE+QG15DE+QG18DE) |
01456-00641 |
US $0.86 |
||
|
24015D
|
24015D
0145600031 SCREW0001--01 ~ 0010--01; 3W.(QG15DE+QG18DE) +V.(QG13DE+QG15DE+QG18DE+QG18DEN) |
0145600031 |
from US $1.11 |
||
|
24015D
|
24015D
0145600411 SCREW9905--01 ~ 0001--01; +W.(QG15DE+QG18DE) +V.(QG13DE+QG15DE+QG18DE) |
0145600411 |
US $1.67 |
||
|
24136Q
|
24136Q
24346-4M401 Bracket Assy-Connector9905--01 ~ 0001--01; +W.(QG15DE+QG18DE) +V.(QG13DE+QG15DE+QG18DE) |
24346-4M401 |
US $42.77 |
||
|
24136Q
|
24136Q
243464M402 Bracket Assy-Connector9905--01 ~ 0001--01; +W.(QG15DE+QG18DE) +V.(QG13DE+QG15DE+QG18DE) |
243464M402 |
US $25.20 |
||
|
24136Q
|
24136Q
24346-4M403 Bracket Assy-Connector9905--01 ~ 0001--01; +W.(QG15DE+QG18DE) +V.(QG13DE+QG15DE+QG18DE) |
24346-4M403 |
US $14.11 |
||
|
24136Q
|
24136Q
24346-4M404 Bracket-Connector9905--01 ~ 0001--01; +W.(QG15DE+QG18DE) +V.(QG13DE+QG15DE+QG18DE) |
24346-4M404 |
US $9.43 |
||
|
24136QA
|
24136QA
243464M402 Bracket Assy-Connector9905--01 ~ 0001--01; +W.(QG15DE+QG18DE) +V.(QG13DE+QG15DE+QG18DE) |
243464M402 |
US $25.20 |
||
|
24136QB
|
24136QB
24346-4M403 Bracket Assy-Connector9905--01 ~ 0001--01; +W.(QG15DE+QG18DE) +V.(QG13DE+QG15DE+QG18DE) |
24346-4M403 |
US $14.11 |
||
|
24136QC
|
24136QC
24346-4M404 Bracket-Connector9905--01 ~ 0001--01; +W.(QG15DE+QG18DE) +V.(QG13DE+QG15DE+QG18DE) |
24346-4M404 |
US $9.43 |
||
|
24196
|
24196
24036-WD000 Harness-Stereo9905--01 ~ 0001--01; *W.(Z+X+G) |
24036-WD000 |
US $140.83 |
||
|
24312P
|
24312P
24313WD000 Label-Fuse Block9905--01 ~ 0001--01; +W.(QG15DE+QG18DE) +V.(QG13DE+QG15DE+QG18DE) |
24313WD000 |
US $5.04 |
||
|
24315N
|
24315N
24315-WA000 Retainer-Fuse Block9905--01 ~ 0001--01; +W.(QG15DE+QG18DE) +V.(QG13DE+QG15DE+QG18DE) |
24315-WA000 |
US $3.31 |
||
|
24315N
|
24315N
24315-WA001 Retainer-Fuse Block9905--01 ~ 0001--01; +W.(QG15DE+QG18DE) +V.(QG13DE+QG15DE+QG18DE) |
24315-WA001 |
US $4.03 |
||
|
24315NA
|
24315NA
24315-WA001 Retainer-Fuse Block9905--01 ~ 0001--01; +W.(QG15DE+QG18DE) +V.(QG13DE+QG15DE+QG18DE) |
24315-WA001 |
US $4.03 |
||
|
24345M
|
24345M
24345-WD010 Cover-Connector9905--01 ~ 0001--01; +W.(QG15DE+QG18DE) +V.(QG13DE+QG15DE+QG18DE) |
24345-WD010 |
US $15.70 |
||
|
25410
|
25410
24311WA000 Block Assy-Fuse9905--01 ~ 0001--01; +W.(QG15DE+QG18DE) +V.(QG13DE+QG15DE+QG18DE) |
24311WA000 |
US $71.86 |
||
|
25410
|
25410
2432179900 Puller-Fuse9905--01 ~ 0001--01; +W.(QG15DE+QG18DE) +V.(QG13DE+QG15DE+QG18DE) |
2432179900 |
US $3.46 |
||
|
25410U
|
25410U
2432179900 Puller-Fuse9905--01 ~ 0001--01; +W.(QG15DE+QG18DE) +V.(QG13DE+QG15DE+QG18DE) |
2432179900 |
US $3.46 |
||
|
25419E
|
25419E
24317-WD000 Bracket-Fuse Block9905--01 ~ 0001--01; +W.(QG15DE+QG18DE) +V.(QG13DE+QG15DE+QG18DE) |
24317-WD000 |
US $11.66 |
||
|
25464
|
25464
24319C9910 Fuse9905--01 ~ 0001--01; +W.(QG15DE+QG18DE) +V.(QG13DE+QG15DE+QG18DE); 10A |
24319C9910 |
from US $0.86 |
||
|
25464
|
25464
24319C9915 Fuse9905--01 ~ 0001--01; +W.(QG15DE+QG18DE) +V.(QG13DE+QG15DE+QG18DE); 15A |
24319C9915 |
from US $0.86 |
||
|
25464
|
25464
24319C9920 Fuse9905--01 ~ 0001--01; +W.(QG15DE+QG18DE) +V.(QG13DE+QG15DE+QG18DE); 20A |
24319C9920 |
from US $0.86 |
