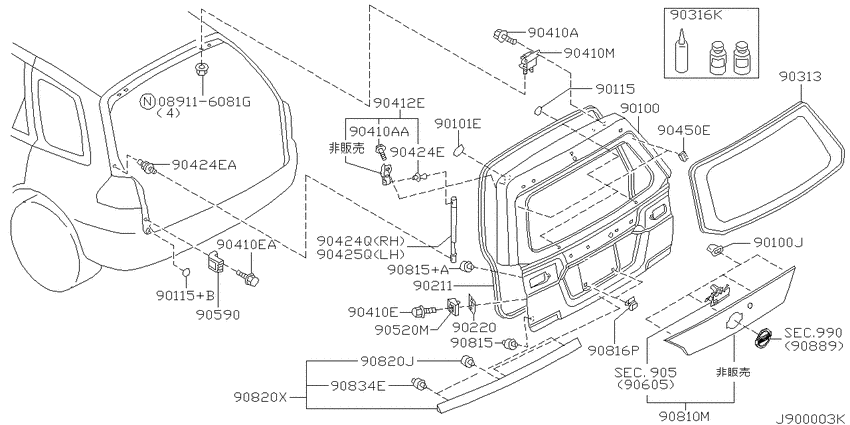

Back door panel & fitting (2001-10-01 ~ 2002-08-01; WAG; W) Diagram Nissan WINGROAD/AD/EXPERT
- Year
- 2001 - 2005
- Sales region
- Japan
- Engine
- QR20DE
- drive
- 2WD
- transmission
- CVT
- grade
- ZX
- body
- W
- specification
- BASIC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
089116081G
|
089116081G
08911-6081G
ﾅﾂﾄ,ﾍｸｻｺﾞﾝ
|
08911-6081G |
— | ||
|
90100
|
90100
K0100-WE0AM ﾄﾞｱ,ﾊﾞﾂｸ0110--01 ~ 0210--01; *W.QR20DE |
K0100-WE0AM |
US $822.70 |
||
|
90100
|
90100
K0100-WE0MM ﾄﾞｱ,ﾊﾞﾂｸ0110--01 ~ 0210--01; LW.BASIC.QG15DE.G.AT.F4 +W.BASIC.QG15DE.(X+S) +W.BASIC.QG18DE +W.QR20DE +W.MT |
K0100-WE0MM |
US $822.70 |
||
|
90100
|
90100
K0100-WE7MM ﾄﾞｱ,ﾊﾞﾂｸ0211--01 ~ 0310--01; W.BASIC |
K0100-WE7MM |
US $678.26 |
||
|
90100
|
90100
K0100-WE8MM ﾄﾞｱ,ﾊﾞﾂｸ0310--01 ~ 0512--01; W.BASIC |
K0100-WE8MM |
US $746.23 |
||
|
90100
|
90100
7684871S00 Grommet0110--01 ~ 0211--01; W |
7684871S00 |
from US $1.30 |
||
|
90100J
|
90100J
7684871S00 Grommet0110--01 ~ 0211--01; W |
7684871S00 |
from US $1.30 |
||
|
90101E
|
90101E
788660T000 Plug-Blind0110--01 ~ 0211--01; W |
788660T000 |
US $2.74 |
||
|
90115
|
90115
64891W5000 Plug-Rubber0110--01 ~ 0211--01; W |
64891W5000 |
from US $0.81 |
||
|
90115
|
90115
80804WD000 Cover-Hole, Front Door Inside0110--01 ~ 0211--01; W |
80804WD000 |
US $2.02 |
||
|
90115+B
|
90115+B
80804WD000 Cover-Hole, Front Door Inside0110--01 ~ 0211--01; W |
80804WD000 |
US $2.02 |
||
|
90211
|
90211
90832WD000 ｳｴｻﾞ-ｽﾄﾘﾂﾌﾟ0110--01 ~ 0211--01; W |
90832WD000 |
US $81.94 |
||
|
90220
|
90220
9052770N00 Shim-Adjusting0110--01 ~ 0211--01; W |
9052770N00 |
US $4.32 |
||
|
90313
|
90313
90300-WE000 ｶﾞﾗｽ,ﾊﾞﾂｸ ﾄﾞｱ ｳｲﾝﾄﾞｳ0110--01 ~ 0211--01; W.QR20DE +W.(S+X); [D608] |
90300-WE000 |
US $1,219.18 |
||
|
90316K
|
90316K
G2891-89925
Sealant Kit-Glass
0110--01 ~ 0211--01; W; [D608] |
G2891-89925 |
— | ||
|
90410A
|
90410A
01125-00333 BOLT0110--01 ~ 0211--01; W |
01125-00333 |
US $1.73 |
||
|
90410A
|
90410A
01121-01143 BOLT0110--01 ~ 0211--01; W |
01121-01143 |
US $1.73 |
||
|
90410AA
|
90410AA
01121-01143 BOLT0110--01 ~ 0211--01; W |
01121-01143 |
US $1.73 |
||
|
90410E
|
90410E
0112100743 Bolt0110--01 ~ 0211--01; W |
0112100743 |
from US $0.83 |
||
|
90410E
|
90410E
0112100743 Bolt0110--01 ~ 0211--01; W |
0112100743 |
from US $0.83 |
||
|
90410EA
|
90410EA
0112100743 Bolt0110--01 ~ 0211--01; W |
0112100743 |
from US $0.83 |
||
|
90410M
|
90410M
90400WA010 Hinge Assy-Back Door0110--01 ~ 0211--01; W |
90400WA010 |
US $28.37 |
||
|
90412E
|
90412E
90454WD010 ﾌﾞﾗｹﾂﾄ ｱﾂｾﾝﾌﾞﾘ-0110--01 ~ 0211--01; W; ﾐｷﾞｶﾞﾜ |
90454WD010 |
US $11.81 |
||
|
90412E
|
90412E
90455WD010 ﾌﾞﾗｹﾂﾄ ｱﾂｾﾝﾌﾞﾘ-0110--01 ~ 0211--01; W; ﾋﾀﾞﾘ |
90455WD010 |
US $11.81 |
||
|
90424E
|
90424E
90458-WD010 ｽﾀﾂﾄﾞ,ﾎﾞ-ﾙ ﾊﾞﾂｸ ﾄﾞｱ ｽﾃ-0110--01 ~ 0211--01; W |
90458-WD010 |
US $8.35 |
||
|
90424E
|
90424E
90456-AD000 Stud-Ball, Back Door Stay0110--01 ~ 0211--01; W; RH & LH |
90456-AD000 |
US $6.91 |
||
|
90424EA
|
90424EA
90456-AD000 Stud-Ball, Back Door Stay0110--01 ~ 0211--01; W; RH & LH |
90456-AD000 |
US $6.91 |
||
|
90424Q
|
90424Q
90452WD000 ﾊﾞﾂｸ ﾄﾞｱ ｽﾃ-0110--01 ~ 0211--01; W |
90452WD000 |
US $175.68 |
||
|
90425Q
|
90425Q
90453WD000 ﾊﾞﾂｸ ﾄﾞｱ ｽﾃ- l0110--01 ~ 0211--01; W |
90453WD000 |
US $175.68 |
||
|
90450E
|
90450E
9031868R00 Clip0110--01 ~ 0208--01; W |
9031868R00 |
US $4.32 |
||
|
905
|
Back door lock & handle
905
|
||||
|
905
|
Back door lock & handle
905
|
||||
|
905
|
Back door lock & handle
905
|
||||
|
905
|
Back door lock & handle
905
|
||||
|
90520M
|
90520M
9052070N00 Dovetail-Striker0110--01 ~ 0211--01; W |
9052070N00 |
US $17.71 |
||
|
90590
|
90590
90524WD000 ﾊﾞﾂｸﾄﾞｱ ﾀﾞﾌﾞﾃ-ﾙ0110--01 ~ 0211--01; W |
90524WD000 |
US $13.54 |
||
|
90810M
|
90810M
90810-WE001 ﾌｲﾆﾂｼﾔ- ｱﾂｾﾝﾌﾞﾘ-,ﾊﾞﾂｸ ﾄﾞｱ0110--01 ~ 0210--01; W |
90810-WE001 |
US $227.52 |
||
|
90810M
|
90810M
90810WE002 ﾌｲﾆﾂｼﾔ-0110--01 ~ 0210--01; W |
90810WE002 |
US $227.52 |
||
|
90810M
|
90810M
90810-WE003 ﾌｲﾆﾂｼﾔ- ｱﾂｾﾝﾌﾞﾘ-,ﾊﾞﾂｸ ﾄﾞｱ0110--01 ~ 0210--01; W |
90810-WE003 |
US $227.52 |
||
|
90810M
|
90810M
90810-WE004 ﾌｲﾆﾂｼﾔ- ｱﾂｾﾝﾌﾞﾘ-,ﾊﾞﾂｸ ﾄﾞｱ0110--01 ~ 0210--01; W |
90810-WE004 |
US $227.52 |
||
|
90810M
|
90810M
90810WE005 ﾌｲﾆﾂｼﾔ-0110--01 ~ 0210--01; W |
90810WE005 |
US $227.52 |
||
|
90810M
|
90810M
90810-WE006 ﾌｲﾆﾂｼﾔ- ｱﾂｾﾝﾌﾞﾘ-,ﾊﾞﾂｸ ﾄﾞｱ0110--01 ~ 0208--01; W |
90810-WE006 |
US $227.52 |
||
|
90810M
|
90810M
90810-WE007 ﾌｲﾆﾂｼﾔ- ｱﾂｾﾝﾌﾞﾘ-,ﾊﾞﾂｸ ﾄﾞｱ0110--01 ~ 0210--01; W |
90810-WE007 |
US $227.52 |
||
|
90810M
|
90810M
90810WE008 ﾌｲﾆﾂｼﾔ-0110--01 ~ 0210--01; W |
90810WE008 |
US $227.52 |
||
|
90810M
|
90810M
90810-WE011 ﾌｲﾆﾂｼﾔ- ｱﾂｾﾝﾌﾞﾘ-,ﾊﾞﾂｸ ﾄﾞｱ0211--01 ~ 0310--01; W |
90810-WE011 |
US $280.80 |
||
|
90810M
|
90810M
90810-WE012 ﾌｲﾆﾂｼﾔ- ｱﾂｾﾝﾌﾞﾘ-,ﾊﾞﾂｸ ﾄﾞｱ0211--01 ~ 0310--01; W |
90810-WE012 |
US $280.80 |
||
|
90810M
|
90810M
90810-WE013 ﾌｲﾆﾂｼﾔ- ｱﾂｾﾝﾌﾞﾘ-,ﾊﾞﾂｸ ﾄﾞｱ0211--01 ~ 0310--01; W |
90810-WE013 |
US $214.56 |
||
|
90810M
|
90810M
90810-WE014 ﾌｲﾆﾂｼﾔ- ｱﾂｾﾝﾌﾞﾘ-,ﾊﾞﾂｸ ﾄﾞｱ0211--01 ~ 0310--01; W |
90810-WE014 |
US $214.56 |
||
|
90810M
|
90810M
90810-WE015 ﾌｲﾆﾂｼﾔ- ｱﾂｾﾝﾌﾞﾘ-,ﾊﾞﾂｸ ﾄﾞｱ0211--01 ~ 0310--01; W |
90810-WE015 |
US $280.80 |
||
|
90810M
|
90810M
90810WE700 ﾌｲﾆﾂｼﾔ-0211--01 ~ 0310--01; W |
90810WE700 |
US $308.69 |
||
|
90810M
|
90810M
90810WE701 ﾌｲﾆﾂｼﾔ-0211--01 ~ 0310--01; W |
90810WE701 |
US $308.69 |
||
|
90810M
|
90810M
90810-WE801 ﾌｲﾆﾂｼﾔ- ｱﾂｾﾝﾌﾞﾘ-,ﾊﾞﾂｸ ﾄﾞｱ0310--01 ~ 0512--01; W.BASIC.QR20DE +W.BASIC.X |
90810-WE801 |
US $308.69 |
||
|
90810M
|
90810M
90810-WE802 ﾌｲﾆﾂｼﾔ- ｱﾂｾﾝﾌﾞﾘ-,ﾊﾞﾂｸ ﾄﾞｱ0310--01 ~ 0512--01; W.BASIC.QR20DE +W.BASIC.X |
90810-WE802 |
US $308.69 |
||
|
90810M
|
90810M
90810WE803 ﾌｲﾆﾂｼﾔ-0310--01 ~ 0512--01; W.BASIC.QR20DE +W.BASIC.X |
90810WE803 |
US $308.69 |
||
|
90810M
|
90810M
90810WE804 ﾌｲﾆﾂｼﾔ-0310--01 ~ 0512--01; W.BASIC.QR20DE +W.BASIC.X |
90810WE804 |
US $308.69 |
||
|
90810M
|
90810M
90810-WE805 ﾌｲﾆﾂｼﾔ- ｱﾂｾﾝﾌﾞﾘ-,ﾊﾞﾂｸ ﾄﾞｱ0310--01 ~ 0512--01; W.BASIC.QR20DE +W.BASIC.X |
90810-WE805 |
US $308.69 |
||
|
90810M
|
90810M
90810-WE806 ﾌｲﾆﾂｼﾔ- ｱﾂｾﾝﾌﾞﾘ-,ﾊﾞﾂｸ ﾄﾞｱ0310--01 ~ 0512--01; W.BASIC.QR20DE +W.BASIC.X |
90810-WE806 |
US $308.69 |
||
|
90810M
|
90810M
90810WE807 ﾌｲﾆﾂｼﾔ-0310--01 ~ 0512--01; W.BASIC.QR20DE +W.BASIC.X |
90810WE807 |
US $308.69 |
||
|
90815
|
90815
9087861Y00 STOPPER RUBBER0110--01 ~ 0211--01; W |
9087861Y00 |
US $5.18 |
||
|
90815
|
90815
90878WD010 BUMPER BDOOR0110--01 ~ 0211--01; W |
90878WD010 |
US $5.18 |
||
|
90815
|
90815
84816AX000 Protector-Licence Plate0310--01 ~ 0512--01; W |
84816AX000 |
from US $1.93 |
||
|
90815+A
|
90815+A
90878WD010 BUMPER BDOOR0110--01 ~ 0211--01; W |
90878WD010 |
US $5.18 |
||
|
90816P
|
90816P
9622970N00 Holder0110--01 ~ 0211--01; W |
9622970N00 |
from US $4.71 |
||
|
90820J
|
90820J
K0820WE100 CLIP0110--01 ~ 0211--01; W |
K0820WE100 |
US $5.62 |
||
|
90820X
|
90820X
90820WE001 ﾌｲﾆﾂｼﾔｰ,ﾊﾞﾂｸ ﾄﾞ0110--01 ~ 0211--01; W |
90820WE001 |
US $204.48 |
||
|
90820X
|
90820X
90820WE002 ﾌｲﾆﾂｼﾔｰ,ﾊﾞﾂｸ ﾄﾞ0110--01 ~ 0211--01; W |
90820WE002 |
US $204.48 |
||
|
90820X
|
90820X
90820-WE003 ﾌｲﾆﾂｼﾔｰ,ﾊﾞﾂｸ ﾄﾞｱ ﾛｱ0110--01 ~ 0211--01; W |
90820-WE003 |
US $204.48 |
||
|
90820X
|
90820X
90820WE004 ﾌｲﾆﾂｼﾔｰ,ﾊﾞﾂｸ ﾄﾞ0110--01 ~ 0211--01; W |
90820WE004 |
US $204.48 |
||
|
90820X
|
90820X
90820WE005 ﾌｲﾆﾂｼﾔｰ,ﾊﾞﾂｸ ﾄﾞ0110--01 ~ 0211--01; W |
90820WE005 |
US $204.48 |
||
|
90820X
|
90820X
90820-WE006 ﾌｲﾆﾂｼﾔｰ,ﾊﾞﾂｸ ﾄﾞｱ ﾛｱ0110--01 ~ 0208--01; W |
90820-WE006 |
US $204.48 |
||
|
90820X
|
90820X
90820-WE007 ﾌｲﾆﾂｼﾔｰ,ﾊﾞﾂｸ ﾄﾞｱ ﾛｱ0110--01 ~ 0211--01; W |
90820-WE007 |
US $204.48 |
||
|
90820X
|
90820X
90820-WE008 ﾌｲﾆﾂｼﾔｰ,ﾊﾞﾂｸ ﾄﾞｱ ﾛｱ0110--01 ~ 0211--01; W |
90820-WE008 |
US $204.48 |
||
|
90820X
|
90820X
90820-WE700 ﾌｲﾆﾂｼﾔｰ,ﾊﾞﾂｸ ﾄﾞｱ ﾛｱ0211--01 ~ 0310--01; W |
90820-WE700 |
US $204.48 |
||
|
90820X
|
90820X
90820WE701 ﾌｲﾆﾂｼﾔｰ,ﾊﾞﾂｸ ﾄﾞ0211--01 ~ 0310--01; W |
90820WE701 |
US $204.48 |
||
|
90820X
|
90820X
90820WE800 ﾌｲﾆﾂｼﾔｰ,ﾊﾞﾂｸ ﾄﾞ0310--01 ~ 0512--01; W |
90820WE800 |
US $204.48 |
||
|
90820X
|
90820X
90820WE801 ﾌｲﾆﾂｼﾔｰ,ﾊﾞﾂｸ ﾄﾞ0310--01 ~ 0512--01; W |
90820WE801 |
US $204.48 |
||
|
90820X
|
90820X
90820-WE802 ﾌｲﾆﾂｼﾔｰ,ﾊﾞﾂｸ ﾄﾞｱ ﾛｱ0310--01 ~ 0512--01; W |
90820-WE802 |
US $204.48 |
||
|
90834E
|
90834E
848153H000 Clip0110--01 ~ 0211--01; W |
848153H000 |
US $7.92 |
||
|
