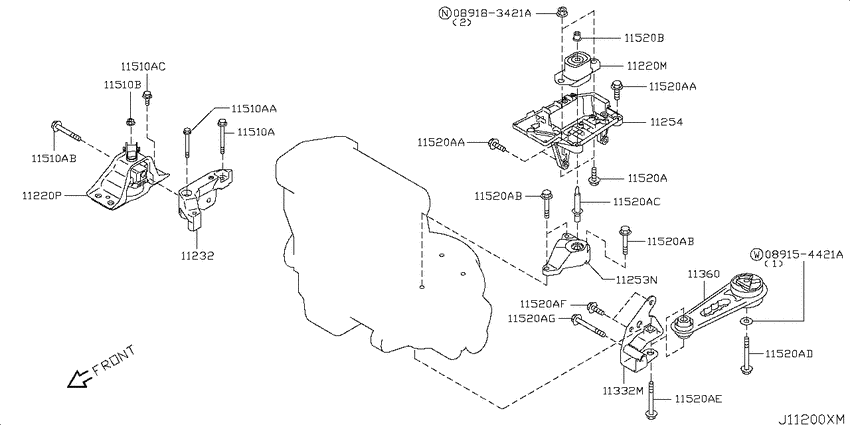

Engine & transmission mounting (2008-01-01 ~ ; HR15DE.(15B+15S)) Diagram Nissan WINGROAD/AD/EXPERT
- Year
- 2008 - 2012
- Sales region
- Japan
- Engine
- HR15DE
- drive
- 2WD
- transmission
- AT.F4
- grade
- 15S
- body
- W
- specification
- STYLISH
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
089154421A
|
089154421A
089154421A Washer-Plain |
089154421A |
from US $0.52 |
||
|
089183421A
|
089183421A
089183421A NUT FLANGEHEX |
089183421A |
US $0.68 |
||
|
11220M
|
11220M
11220ED000 Insulator Assy-Engine Mounting, Front Lh0612--01 ~ 0801--01; 2WD.HR15DE.AT.F4 |
11220ED000 |
from US $62.25 |
||
|
11220P
|
11220P
11210ED50B Insulator-Engine Mounting, Front0612--01 ~ 0801--01; 2WD.HR15DE.AT.F4 |
11210ED50B |
from US $69.31 |
||
|
11220P
|
11220P
11210JJ00A Insulator-Engine Mounting, Rh0801--01 ~ ; HR15DE.(15B+15S) |
11210JJ00A |
US $65.23 |
||
|
11232
|
11232
11232-ED000 Bracket-Engine Mounting, Rh0612--01 ~ 0710--01; 2WD.HR15DE.AT.F4 |
11232-ED000 |
US $74.74 |
||
|
11232
|
11232
11232ED00A Bracket-Engine Mounting, Rh0710--01 ~ 0801--01; 2WD.HR15DE.AT.F4 |
11232ED00A |
US $74.74 |
||
|
11253N
|
11253N
11253ED000 Bracket-Engine Mounting, Lh0612--01 ~ 0801--01; 2WD.HR15DE.AT.F4 |
11253ED000 |
from US $37.58 |
||
|
11254
|
11254
11254ED000 Support-Engine Mounting, Lh0612--01 ~ 0801--01; 2WD.HR15DE.AT.F4 |
11254ED000 |
US $74.74 |
||
|
11332M
|
11332M
11332-ED000 Bracket-Engine Mounting, Rear0612--01 ~ 0801--01; 2WD.HR15DE.AT.F4 |
11332-ED000 |
US $14.98 |
||
|
11360
|
11360
11360ED000 Buffer Assy-Engine Mounting, Rear0612--01 ~ 0801--01; 2WD.HR15DE.AT.F4 |
11360ED000 |
from US $51.84 |
||
|
11510A
|
11510A
112983J200 Bolt0612--01 ~ 0801--01; 2WD.HR15DE.AT.F4 |
112983J200 |
from US $1.74 |
||
|
11510A
|
11510A
01125-03011 BOLT0612--01 ~ 0801--01; 2WD.HR15DE.AT.F4 |
01125-03011 |
US $3.46 |
||
|
11510A
|
11510A
11298ED000 Bolt0612--01 ~ 0801--01; 2WD.HR15DE.AT.F4 |
11298ED000 |
US $4.03 |
||
|
11510A
|
11510A
11298-AX004 Bolt0612--01 ~ 0801--01; 2WD.HR15DE.AT.F4 |
11298-AX004 |
US $3.46 |
||
|
11510AA
|
11510AA
01125-03011 BOLT0612--01 ~ 0801--01; 2WD.HR15DE.AT.F4 |
01125-03011 |
US $3.46 |
||
|
11510AB
|
11510AB
11298ED000 Bolt0612--01 ~ 0801--01; 2WD.HR15DE.AT.F4 |
11298ED000 |
US $4.03 |
||
|
11510AC
|
11510AC
11298-AX004 Bolt0612--01 ~ 0801--01; 2WD.HR15DE.AT.F4 |
11298-AX004 |
US $3.46 |
||
|
11510B
|
11510B
0122500521 NUT0612--01 ~ 0801--01; 2WD.HR15DE.AT.F4 |
0122500521 |
from US $1.07 |
||
|
11520A
|
11520A
11298AX005 Bolt0612--01 ~ 0801--01; 2WD.HR15DE.AT.F4 |
11298AX005 |
US $3.46 |
||
|
11520A
|
11520A
11298-6M001 Bolt0612--01 ~ 0705--01; 2WD.HR15DE.AT.F4 |
11298-6M001 |
US $3.46 |
||
|
11520A
|
11520A
112986M00B Bolt0705--01 ~ 0801--01; 2WD.HR15DE.AT.F4 |
112986M00B |
US $3.46 |
||
|
11520A
|
11520A
0112503291 BOLT0612--01 ~ 0801--01; 2WD.HR15DE.AT.F4 |
0112503291 |
US $3.46 |
||
|
11520A
|
11520A
11298AX000 Bolt0612--01 ~ 0801--01; 2WD.HR15DE.AT.F4 |
11298AX000 |
from US $8.47 |
||
|
11520A
|
11520A
11298AX007 Bolt0612--01 ~ 0801--01; 2WD.HR15DE.AT.F4 |
11298AX007 |
from US $1.74 |
||
|
11520A
|
11520A
11298AX006 Bolt0612--01 ~ 0801--01; 2WD.HR15DE.AT.F4 |
11298AX006 |
US $3.46 |
||
|
11520A
|
11520A
01125-02871 BOLT0612--01 ~ 0801--01; 2WD.HR15DE.AT.F4 |
01125-02871 |
US $2.45 |
||
|
11520A
|
11520A
112983J200 Bolt0612--01 ~ 0801--01; 2WD.HR15DE.AT.F4 |
112983J200 |
from US $1.74 |
||
|
11520AA
|
11520AA
11298-6M001 Bolt0612--01 ~ 0705--01; 2WD.HR15DE.AT.F4 |
11298-6M001 |
US $3.46 |
||
|
11520AA
|
11520AA
112986M00B Bolt0705--01 ~ 0801--01; 2WD.HR15DE.AT.F4 |
112986M00B |
US $3.46 |
||
|
11520AA
|
11520AA
11298-6M001 Bolt0612--01 ~ 0705--01; 2WD.HR15DE.AT.F4 |
11298-6M001 |
US $3.46 |
||
|
11520AA
|
11520AA
112986M00B Bolt0705--01 ~ 0801--01; 2WD.HR15DE.AT.F4 |
112986M00B |
US $3.46 |
||
|
11520AB
|
11520AB
0112503291 BOLT0612--01 ~ 0801--01; 2WD.HR15DE.AT.F4 |
0112503291 |
US $3.46 |
||
|
11520AB
|
11520AB
0112503291 BOLT0612--01 ~ 0801--01; 2WD.HR15DE.AT.F4 |
0112503291 |
US $3.46 |
||
|
11520AC
|
11520AC
11298AX000 Bolt0612--01 ~ 0801--01; 2WD.HR15DE.AT.F4 |
11298AX000 |
from US $8.47 |
||
|
11520AD
|
11520AD
11298AX007 Bolt0612--01 ~ 0801--01; 2WD.HR15DE.AT.F4 |
11298AX007 |
from US $1.74 |
||
|
11520AE
|
11520AE
11298AX006 Bolt0612--01 ~ 0801--01; 2WD.HR15DE.AT.F4 |
11298AX006 |
US $3.46 |
||
|
11520AF
|
11520AF
01125-02871 BOLT0612--01 ~ 0801--01; 2WD.HR15DE.AT.F4 |
01125-02871 |
US $2.45 |
||
|
11520AG
|
11520AG
112983J200 Bolt0612--01 ~ 0801--01; 2WD.HR15DE.AT.F4 |
112983J200 |
from US $1.74 |
||
|
11520B
|
11520B
11258AX00A Nut0612--01 ~ 0801--01; 2WD.HR15DE.AT.F4 |
11258AX00A |
US $2.45 |
