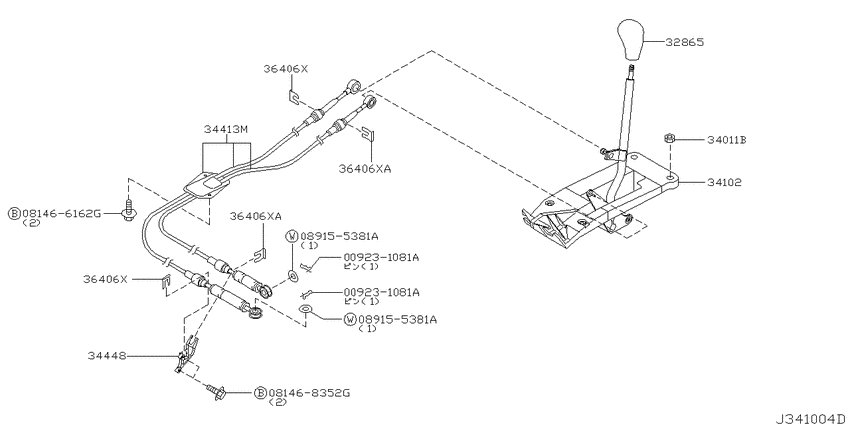

Transmission control & linkage (2000-10-01 ~ 2003-06-01; QR20DE.MT) Diagram Nissan X-TRAIL
- Year
- 2000 - 2012
- Sales region
- Japan
- Engine
- QR20DE
- drive
- 4WD
- transmission
- MT
- grade
- S
- body
- W
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
009231081A
|
009231081A
009231081A PINSNAP |
009231081A |
from US $0.52 |
||
|
009231081A
|
009231081A
009231081A PINSNAP |
009231081A |
from US $0.52 |
||
|
081466162G
|
081466162G
081466162G Bolt-hexagon |
081466162G |
from US $0.67 |
||
|
081468352G
|
081468352G
08146-8352G
Bolt-hexagon
|
08146-8352G |
— | ||
|
089155381A
|
089155381A
089155381A Washer-Plain |
089155381A |
US $1.90 |
||
|
089155381A
|
089155381A
089155381A Washer-Plain |
089155381A |
US $1.90 |
||
|
32865
|
32865
32865-0M001 Knob-Control Lever0010--01 ~ ; QR20DE.MT |
32865-0M001 |
US $28.14 |
||
|
34011B
|
34011B
0122500371 NUT0010--01 ~ ; QR20DE.MT |
0122500371 |
US $1.73 |
||
|
34011B
|
34011B
0122500371 NUT0309--01 ~ ; QR20DE.MT |
0122500371 |
US $1.73 |
||
|
34102
|
34102
34101-8H500 Device Assy-Transmission Control0010--01 ~ 0306--01; QR20DE.MT |
34101-8H500 |
US $832.61 |
||
|
34102
|
34102
34101-8H501 Device Assy-Transmission Control0306--01 ~ 0509--01; QR20DE.MT |
34101-8H501 |
US $832.61 |
||
|
34102
|
34102
34101-8H50A Device Assy-Transmission Control0509--01 ~ 0702--01; QR20DE.MT |
34101-8H50A |
US $525.34 |
||
|
34102
|
34102
341018H50B Device Assy-Transmission Control0702--01 ~ ; QR20DE.MT |
341018H50B |
US $525.34 |
||
|
34413M
|
34413M
34413-8H500 Cable Assy-Control, Manual Transmission0010--01 ~ 0306--01; QR20DE.MT |
34413-8H500 |
US $354 |
||
|
34413M
|
34413M
34413-8H516 Cable Assy-Control, Manual Transmission0306--01 ~ 0701--01; QR20DE.MT |
34413-8H516 |
US $227.52 |
||
|
34413M
|
34413M
34413-8H51A Cable Assy-Control, Manual Transmission0701--01 ~ ; QR20DE.MT |
34413-8H51A |
US $227.52 |
||
|
34448
|
34448
34448-AU000 Bracket-Cable0010--01 ~ ; QR20DE.MT |
34448-AU000 |
US $46.51 |
||
|
36406X
|
36406X
36406-41B00 Plate-Lock0010--01 ~ 0612--01; QR20DE.MT |
36406-41B00 |
US $4.18 |
||
|
36406X
|
36406X
3640641B0A Plate-Lock0612--01 ~ ; QR20DE.MT |
3640641B0A |
US $4.18 |
||
|
36406X
|
36406X
36406-4M400 Plate-Lock0010--01 ~ 0306--01; QR20DE.MT |
36406-4M400 |
US $3.46 |
||
| replacement | |||||
|
36406X
|
36406X
364064M40A Plate-Lock0010--01 ~ 0306--01; QR20DE.MT |
364064M40A |
from US $2.66 |
||
|
36406X
|
36406X
36406-54J00 Plate-Lock0306--01 ~ 0612--01; QR20DE.MT |
36406-54J00 |
US $4.18 |
||
|
36406X
|
36406X
3640654J0A Plate-Lock0612--01 ~ ; QR20DE.MT |
3640654J0A |
US $4.18 |
||
|
36406X
|
36406X
36406-41B00 Plate-Lock0010--01 ~ 0612--01; QR20DE.MT |
36406-41B00 |
US $4.18 |
||
|
36406X
|
36406X
3640641B0A Plate-Lock0612--01 ~ ; QR20DE.MT |
3640641B0A |
US $4.18 |
||
|
36406X
|
36406X
36406-4M400 Plate-Lock0010--01 ~ 0306--01; QR20DE.MT |
36406-4M400 |
US $3.46 |
||
| replacement | |||||
|
36406X
|
36406X
364064M40A Plate-Lock0010--01 ~ 0306--01; QR20DE.MT |
364064M40A |
from US $2.66 |
||
|
36406X
|
36406X
36406-54J00 Plate-Lock0306--01 ~ 0612--01; QR20DE.MT |
36406-54J00 |
US $4.18 |
||
|
36406X
|
36406X
3640654J0A Plate-Lock0612--01 ~ ; QR20DE.MT |
3640654J0A |
US $4.18 |
||
|
36406XA
|
36406XA
36406-4M400 Plate-Lock0010--01 ~ 0306--01; QR20DE.MT |
36406-4M400 |
US $3.46 |
||
| replacement | |||||
|
36406XA
|
36406XA
364064M40A Plate-Lock0010--01 ~ 0306--01; QR20DE.MT |
364064M40A |
from US $2.66 |
||
|
36406XA
|
36406XA
36406-4M400 Plate-Lock0010--01 ~ 0306--01; QR20DE.MT |
36406-4M400 |
US $3.46 |
||
| replacement | |||||
|
36406XA
|
36406XA
364064M40A Plate-Lock0010--01 ~ 0306--01; QR20DE.MT |
364064M40A |
from US $2.66 |
||
