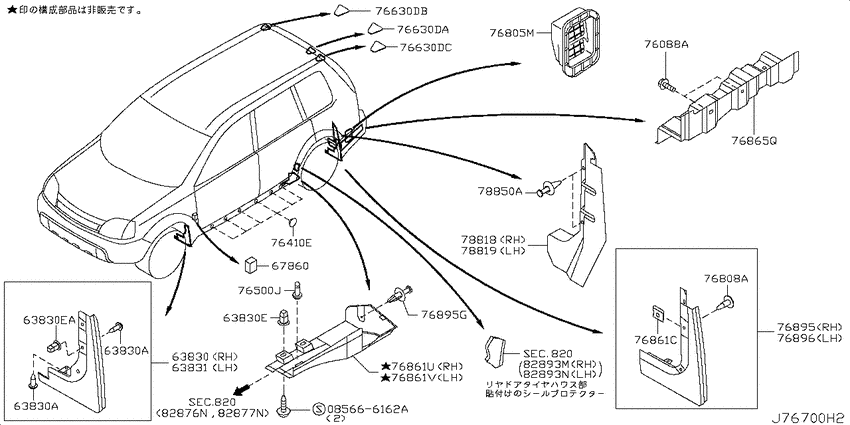

Body side fitting (2005-12-01 ~ ; NO.1; W) Diagram Nissan X-TRAIL
- Year
- 2000 - 2012
- Sales region
- Japan
- Engine
- QR20DE
- drive
- 4WD
- transmission
- AT
- grade
- X
- body
- W
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
085666162A
|
085666162A
085666162A SCREWTAPPING |
085666162A |
US $2.21 |
||
|
63830
|
63830
63854-8H325
Mudguard Set-Front Fender, Rh
0109--01 ~ 0306--01; *W.4WD.S.AT +*W.4WD.X |
63854-8H325 |
— | ||
| replacement | |||||
|
63830
|
63830
F3854-8H325 Mud guard-front0109--01 ~ 0306--01; *W.4WD.S.AT +*W.4WD.X |
F3854-8H325 |
US $55.44 |
||
|
63830
|
63830
0145100841 SCREW0109--01 ~ 0306--01; *W.4WD.S.AT +*W.4WD.X |
0145100841 |
from US $0.94 |
||
|
63830
|
63830
01454N5061 Screw0512--01 ~ ; *W.4WD.X |
01454N5061 |
from US $1.15 |
||
|
63830
|
63830
01281-00601
GROMMET-SCREW
0010--01 ~ ; W |
01281-00601 |
— | ||
| replacement | |||||
|
63830
|
63830
0128101231 GROMMET-SCREW0010--01 ~ ; W |
0128101231 |
from US $2.24 |
||
|
63830
|
63830
638468H300 Grommet-Screw0303--01 ~ 0306--01; *W.4WD.X |
638468H300 |
US $0.86 |
||
|
63830
|
63830
638468H300 Grommet-Screw0109--01 ~ 0306--01; *W.4WD.S.AT +*W.4WD.X |
638468H300 |
US $0.86 |
||
|
63830A
|
63830A
0145100841 SCREW0109--01 ~ 0306--01; *W.4WD.S.AT +*W.4WD.X |
0145100841 |
from US $0.94 |
||
|
63830A
|
63830A
01454N5061 Screw0512--01 ~ ; *W.4WD.X |
01454N5061 |
from US $1.15 |
||
|
63830A
|
63830A
0145100841 SCREW0109--01 ~ 0306--01; *W.4WD.S.AT +*W.4WD.X |
0145100841 |
from US $0.94 |
||
|
63830A
|
63830A
01454N5061 Screw0512--01 ~ ; *W.4WD.X |
01454N5061 |
from US $1.15 |
||
|
63830E
|
63830E
01281-00601
GROMMET-SCREW
0010--01 ~ ; W |
01281-00601 |
— | ||
| replacement | |||||
|
63830E
|
63830E
0128101231 GROMMET-SCREW0010--01 ~ ; W |
0128101231 |
from US $2.24 |
||
|
63830E
|
63830E
638468H300 Grommet-Screw0303--01 ~ 0306--01; *W.4WD.X |
638468H300 |
US $0.86 |
||
|
63830E
|
63830E
638468H300 Grommet-Screw0109--01 ~ 0306--01; *W.4WD.S.AT +*W.4WD.X |
638468H300 |
US $0.86 |
||
|
63830EA
|
63830EA
638468H300 Grommet-Screw0109--01 ~ 0306--01; *W.4WD.S.AT +*W.4WD.X |
638468H300 |
US $0.86 |
||
|
63831
|
63831
63855-8H325
Mudguard Set-Front Fender, Lh
0109--01 ~ 0306--01; *W.4WD.S.AT +*W.4WD.X |
63855-8H325 |
— | ||
| replacement | |||||
|
63831
|
63831
F3855-8H325 Mud guard assy0109--01 ~ 0306--01; *W.4WD.S.AT +*W.4WD.X |
F3855-8H325 |
US $55.44 |
||
|
67860
|
67860
6786035F00 Insulator-Pillar0010--01 ~ ; W |
6786035F00 |
US $6.38 |
||
|
76088A
|
76088A
01125-N6061 Bolt0512--01 ~ ; W |
01125-N6061 |
from US $1.37 |
||
|
76410E
|
76410E
0165802111 PLUG-BODY SILL0010--01 ~ ; W |
0165802111 |
from US $0.85 |
||
|
76500J
|
76500J
7684835F00 Grommet0010--01 ~ ; W |
7684835F00 |
from US $1.24 |
||
|
76630DA
|
76630DA
76884-8H502 Insulator-Rear Pillar, Inner0010--01 ~ ; W |
76884-8H502 |
US $6.05 |
||
|
76630DB
|
76630DB
76884-8H504 Insulator-Rear Pillar, Inner0010--01 ~ ; W |
76884-8H504 |
US $6.05 |
||
|
76630DC
|
76630DC
76885-8H504 Insulator-Rear Pillar, Inner0010--01 ~ ; W |
76885-8H504 |
US $6.05 |
||
|
76805M
|
76805M
768054U000 Duct-Drafter, Outlet Lh0010--01 ~ ; W |
768054U000 |
US $30.38 |
||
|
76808A
|
76808A
0145100841 SCREW0109--01 ~ 0306--01; *W.4WD.S.AT +*W.4WD.X |
0145100841 |
from US $0.94 |
||
|
76808A
|
76808A
01454N5061 Screw0512--01 ~ ; *W.4WD.X |
01454N5061 |
from US $1.15 |
||
|
76861C
|
76861C
01241-00771
GROMMET-SCREW
0109--01 ~ 0306--01; *W.4WD.S.AT +*W.4WD.X |
01241-00771 |
— | ||
| replacement | |||||
|
76861C
|
76861C
0124100941 NUT-SPRING0109--01 ~ 0306--01; *W.4WD.S.AT +*W.4WD.X |
0124100941 |
from US $1.24 |
||
|
76861U
|
76861U
76856-8H300 Mudguard-Center, Rear Rh0010--01 ~ ; W |
76856-8H300 |
from US $21.60 |
||
|
76861V
|
76861V
76857-8H300 Mudguard-Center, Rear Lh0010--01 ~ ; W |
76857-8H300 |
US $21.60 |
||
|
76865Q
|
76865Q
747798H300 Protector-Mudguard, Center Lh0010--01 ~ 0306--01; W |
747798H300 |
US $23.47 |
||
|
76865Q
|
76865Q
74779EQ000 Protector-Mudguard, Center Lh0306--01 ~ ; W |
74779EQ000 |
US $19.58 |
||
|
76895
|
76895
78812-8H325
Mudguard Set-Rear, Rh
0109--01 ~ 0306--01; *W.4WD.S.AT +*W.4WD.X |
78812-8H325 |
— | ||
| replacement | |||||
|
76895
|
76895
G8812-8H325 Mud guard-rr rh0109--01 ~ 0306--01; *W.4WD.S.AT +*W.4WD.X |
G8812-8H325 |
US $55.44 |
||
|
76895
|
76895
0155309321 CLIP0010--01 ~ ; W |
0155309321 |
US $0.97 |
||
|
76895G
|
76895G
0155309321 CLIP0010--01 ~ ; W |
0155309321 |
US $0.97 |
||
|
76896
|
76896
78813-8H325
Mudguard Set-Rear, Lh
0109--01 ~ 0306--01; *W.4WD.S.AT +*W.4WD.X |
78813-8H325 |
— | ||
| replacement | |||||
|
76896
|
76896
G8813-8H325 Mud guard-rr lh0109--01 ~ 0306--01; *W.4WD.S.AT +*W.4WD.X |
G8813-8H325 |
from US $26.92 |
||
|
78818
|
78818
788188H300 Closing-Rear Bumper, Rh0010--01 ~ ; W |
788188H300 |
from US $10.51 |
||
|
78819
|
78819
788198H300 Closing-Rear Bumper, Lh0010--01 ~ ; W |
788198H300 |
from US $10.51 |
||
|
78850A
|
78850A
0155309321 CLIP0401--01 ~ ; W |
0155309321 |
US $0.97 |
||
|
78850A
|
78850A
6384801G00 Clip-Harness Protector0010--01 ~ 0401--01; W |
6384801G00 |
from US $0.54 |
||
|
