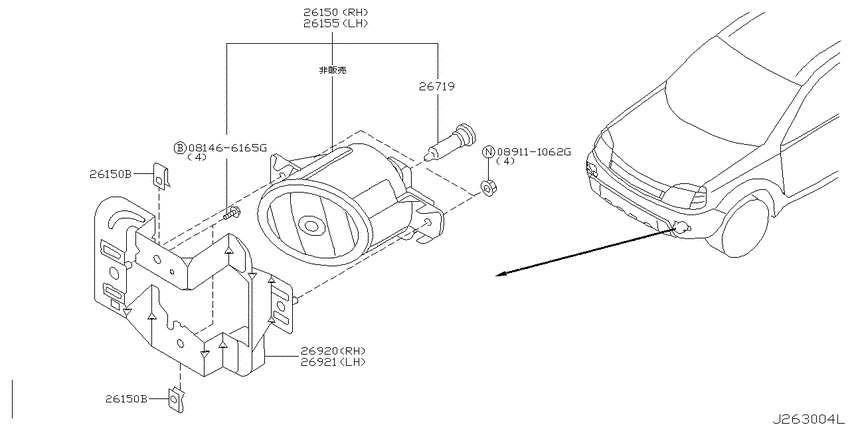

Fog lamp (2003-06-01 ~ ; ﾌﾛﾝﾄ ﾌｫｸﾞ ﾗﾝﾌﾟ; W) Diagram Nissan X-TRAIL
- Year
- 2000 - 2012
- Sales region
- Japan
- Engine
- QR20DE
- drive
- 4WD
- transmission
- AT
- grade
- X
- body
- W
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
081466165G
|
081466165G
081466165G Bolt-hexagon |
081466165G |
from US $0.67 |
||
|
089111062G
|
089111062G
089111062G Nut-Spring |
089111062G |
from US $0.52 |
||
|
26150
|
26150
26150-8990A Lamp Assy-Fog, Rh0610--01 ~ ; *W.QR20DE |
26150-8990A |
US $183.60 |
||
|
26150
|
26150
26150-89929 Lamp Assy-Fog, Rh0404--01 ~ ; *W.4WD.S.AT +*W.4WD.X |
26150-89929 |
US $184.32 |
||
|
26150
|
26150
0124101021 NUT0010--01 ~ 0306--01; *W |
0124101021 |
US $2.36 |
||
|
26150
|
26150
0124101051 NUT-SPRING0309--01 ~ 0512--01; *W.2WD.S +*W.4WD.S.AT +*W.4WD.X |
0124101051 |
from US $0.98 |
||
|
26150
|
26150
0124101021 NUT0306--01 ~ 0512--01; *W |
0124101021 |
US $2.36 |
||
|
26150B
|
26150B
0124101021 NUT0010--01 ~ 0306--01; *W |
0124101021 |
US $2.36 |
||
|
26150B
|
26150B
0124101051 NUT-SPRING0309--01 ~ 0512--01; *W.2WD.S +*W.4WD.S.AT +*W.4WD.X |
0124101051 |
from US $0.98 |
||
|
26150B
|
26150B
0124101021 NUT0306--01 ~ 0512--01; *W |
0124101021 |
US $2.36 |
||
|
26150B
|
26150B
0124101021 NUT0010--01 ~ 0306--01; *W |
0124101021 |
US $2.36 |
||
|
26150B
|
26150B
0124101051 NUT-SPRING0309--01 ~ 0512--01; *W.2WD.S +*W.4WD.S.AT +*W.4WD.X |
0124101051 |
from US $0.98 |
||
|
26150B
|
26150B
0124101021 NUT0306--01 ~ 0512--01; *W |
0124101021 |
US $2.36 |
||
|
26155
|
26155
26155-8990A Lamp Assy-Fog, Lh0610--01 ~ ; *W.QR20DE |
26155-8990A |
US $183.60 |
||
|
26155
|
26155
26155-89929 Lamp Assy-Fog, Lh0404--01 ~ ; *W.4WD.S.AT +*W.4WD.X |
26155-89929 |
US $184.32 |
||
|
26719
|
26719
26296-89946 Bulb0404--01 ~ ; *W.4WD.S.AT +*W.4WD.X; 12V-55W |
26296-89946 |
US $28.80 |
||
|
26719
|
26719
AY08010026 Bulb0512--01 ~ ; *W.QR20DE; 12V-55W |
AY08010026 |
US $28.80 |
||
|
26719
|
26719
2626189949 Bulb0010--01 ~ 0512--01; *W; 12V-21W |
2626189949 |
from US $1.74 |
||
|
26920
|
26920
26910-EQ000 Brkt-Fog, Rh0309--01 ~ 0512--01; *W.2WD.S +*W.4WD.S.AT +*W.4WD.X |
26910-EQ000 |
US $93.60 |
||
|
26921
|
26921
26915-EQ000 Brkt-Fog, Lh0309--01 ~ 0512--01; *W.2WD.S +*W.4WD.S.AT +*W.4WD.X |
26915-EQ000 |
US $93.60 |
