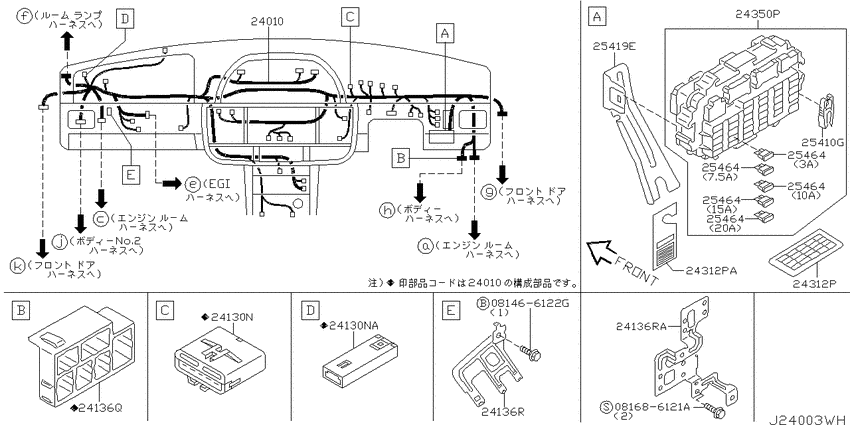

Wiring (2003-06-01 ~ ; ﾒｲﾝ ﾊｰﾈｽ; W.QR20DE) Diagram Nissan X-TRAIL
- Year
- 2000 - 2012
- Sales region
- Japan
- Engine
- QR20DE
- drive
- 4WD
- transmission
- AT
- grade
- X
- body
- W
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
081466122G
|
081466122G
081466122G Bolt-hexagon |
081466122G |
US $2.36 |
||
|
081686121A
|
081686121A
081686121A Screw |
081686121A |
US $2.21 |
||
|
24010
|
24010
24010-8H305 Harness Assy-Main0010--01 ~ 0209--01; W.4WD.X |
24010-8H305 |
US $2,744 |
||
|
24010
|
24010
24010-8H306 Harness Assy-Main0010--01 ~ 0209--01; *W.4WD.X |
24010-8H306 |
US $2,744 |
||
|
24010
|
24010
24010-8H308 Harness Assy-Main0010--01 ~ 0209--01; *W.4WD.X |
24010-8H308 |
US $2,744 |
||
|
24010
|
24010
24010-8H365 Harness Assy-Main0209--01 ~ 0306--01; W.4WD.X |
24010-8H365 |
US $2,744 |
||
|
24010
|
24010
240108H366 Harness Assy-Main0209--01 ~ 0306--01; *W.4WD.X |
240108H366 |
US $2,744 |
||
|
24010
|
24010
24010-8H368 Harness Assy-Main0209--01 ~ 0306--01; *W.4WD.X |
24010-8H368 |
US $2,744 |
||
|
24010
|
24010
24010EQ003 Harness Assy-Main0306--01 ~ 0512--01; W.4WD.X |
24010EQ003 |
US $2,744 |
||
|
24010
|
24010
24010-EQ004 Harness Assy-Main0306--01 ~ 0512--01; *W.4WD.X |
24010-EQ004 |
US $2,744 |
||
|
24010
|
24010
24010-EQ005 Harness Assy-Main0306--01 ~ 0512--01; *W.4WD.X |
24010-EQ005 |
US $2,744 |
||
|
24010
|
24010
24010EQ064 Harness Assy-Main0411--01 ~ 0512--01; *W.4WD.X |
24010EQ064 |
US $2,744 |
||
|
24010
|
24010
24010-EQ065 Harness Assy-Main0411--01 ~ 0512--01; *W.4WD.X |
24010-EQ065 |
US $2,744 |
||
|
24010
|
24010
24010-ES50D Harness Assy-Main0512--01 ~ ; W.4WD.X |
24010-ES50D |
US $2,744 |
||
|
24010
|
24010
24010-ES50E Harness Assy-Main0512--01 ~ ; *W.4WD.X |
24010-ES50E |
US $2,744 |
||
|
24010
|
24010
24010-ES51A Harness Assy-Main0512--01 ~ ; *W.4WD.X |
24010-ES51A |
US $2,744 |
||
|
24010
|
24010
24010-ES52C Harness Assy-Main0512--01 ~ ; *W.4WD.X |
24010-ES52C |
US $2,744 |
||
|
24010
|
24010
24010-ES52D Harness Assy-Main0512--01 ~ ; *W.4WD.X |
24010-ES52D |
US $2,744 |
||
|
24130N
|
24130N
24335-79901 Diode0010--01 ~ ; W.QR20DE |
24335-79901 |
US $17.71 |
||
|
24130N
|
24130N
24335C9900 Diode0010--01 ~ ; W.QR20DE |
24335C9900 |
US $17.60 |
||
|
24130N
|
24130N
24335-F6102 Diode0411--01 ~ 0512--01; *W.4WD.S.AT +*W.4WD.X |
24335-F6102 |
US $17.42 |
||
|
24130N
|
24130N
24335-F6102 Diode0010--01 ~ 0512--01; W.QR20DE |
24335-F6102 |
US $17.42 |
||
|
24130NA
|
24130NA
24335C9900 Diode0010--01 ~ ; W.QR20DE |
24335C9900 |
US $17.60 |
||
|
24130NA
|
24130NA
24335-F6102 Diode0411--01 ~ 0512--01; *W.4WD.S.AT +*W.4WD.X |
24335-F6102 |
US $17.42 |
||
|
24136Q
|
24136Q
24346-4M401 Bracket Assy-Connector0010--01 ~ ; W.QR20DE |
24346-4M401 |
US $42.77 |
||
|
24136R
|
24136R
24236-8H300 Bracket-Connector0010--01 ~ 0702--01; W.QR20DE |
24236-8H300 |
US $8.93 |
||
|
24136R
|
24136R
24236-8H33A Bracket-Connector0702--01 ~ ; W.QR20DE |
24236-8H33A |
US $5.76 |
||
|
24136R
|
24136R
24236-8H301 Bracket-Connector0010--01 ~ 0702--01; W.QR20DE |
24236-8H301 |
US $11.81 |
||
|
24136R
|
24136R
24236-8H33B Bracket-Connector0702--01 ~ ; W.QR20DE |
24236-8H33B |
US $11.81 |
||
|
24136RA
|
24136RA
24236-8H301 Bracket-Connector0010--01 ~ 0702--01; W.QR20DE |
24236-8H301 |
US $11.81 |
||
|
24136RA
|
24136RA
24236-8H33B Bracket-Connector0702--01 ~ ; W.QR20DE |
24236-8H33B |
US $11.81 |
||
|
24312P
|
24312P
24313-8H300 Label-Fuse Block0010--01 ~ 0306--01; W.QR20DE |
24313-8H300 |
US $5.47 |
||
|
24312P
|
24312P
24313-8H301 Label-Fuse Block0303--01 ~ 0306--01; *W.4WD.X |
24313-8H301 |
US $5.47 |
||
|
24312P
|
24312P
24313-EQ000 Label-Fuse Block0306--01 ~ 0402--01; W.QR20DE |
24313-EQ000 |
US $5.47 |
||
|
24312P
|
24312P
24313EQ001 Label-Fuse Block0402--01 ~ 0411--01; W.QR20DE |
24313EQ001 |
US $5.47 |
||
|
24312P
|
24312P
24313-EQ002 Label-Fuse Block0411--01 ~ ; W.QR20DE |
24313-EQ002 |
US $5.47 |
||
|
24312P
|
24312P
24313-40F10 Label-Fuse Block0310--01 ~ 0311--01; *W.4WD.X |
24313-40F10 |
US $2.45 |
||
|
24312P
|
24312P
24313-7J410 Label-Fuse Block0311--01 ~ ; *W.4WD.X |
24313-7J410 |
US $3.46 |
||
|
24312PA
|
24312PA
24313-40F10 Label-Fuse Block0310--01 ~ 0311--01; *W.4WD.X |
24313-40F10 |
US $2.45 |
||
|
24312PA
|
24312PA
24313-7J410 Label-Fuse Block0311--01 ~ ; *W.4WD.X |
24313-7J410 |
US $3.46 |
||
|
24350P
|
24350P
24350-8H300 Block-Junction0010--01 ~ 0306--01; W.QR20DE |
24350-8H300 |
US $141.98 |
||
|
24350P
|
24350P
24350-EQ000 Block-Junction0306--01 ~ 0411--01; W.QR20DE |
24350-EQ000 |
US $288 |
||
|
24350P
|
24350P
24350-EQ002 Block-Junction0411--01 ~ ; W.QR20DE |
24350-EQ002 |
US $290.28 |
||
|
25410G
|
25410G
24321-79901 Puller-Fuse0010--01 ~ ; W.QR20DE |
24321-79901 |
US $3.46 |
||
|
25419E
|
25419E
24317-8H300 Bracket-Fuse Block0010--01 ~ 0306--01; W.QR20DE |
24317-8H300 |
US $7.92 |
||
|
25419E
|
25419E
24317-EQ000 Bracket-Fuse Block0306--01 ~ 0702--01; W.QR20DE |
24317-EQ000 |
US $5.04 |
||
|
25419E
|
25419E
24317-EQ03A Bracket-Fuse Block0702--01 ~ ; W.QR20DE |
24317-EQ03A |
US $5.04 |
||
|
25464
|
25464
24319C9903 Fuse0010--01 ~ 0306--01; *W.QR20DE; 3A |
24319C9903 |
from US $0.86 |
||
|
25464
|
25464
24319C9907 Fuse0010--01 ~ 0306--01; *W.QR20DE; 7.5A |
24319C9907 |
from US $0.86 |
||
|
25464
|
25464
24319C9910 Fuse0010--01 ~ 0306--01; *W.QR20DE; 10A |
24319C9910 |
from US $0.86 |
||
|
25464
|
25464
24319C9915 Fuse0010--01 ~ 0306--01; *W.QR20DE; 15A |
24319C9915 |
from US $0.86 |
||
|
25464
|
25464
24319C9920 Fuse0010--01 ~ 0306--01; *W.QR20DE; 20A |
24319C9920 |
from US $0.86 |
||
|
25464
|
25464
24319C9903 Fuse0010--01 ~ 0306--01; *W.QR20DE; 3A |
24319C9903 |
from US $0.86 |
||
|
25464
|
25464
24319C9907 Fuse0010--01 ~ 0306--01; *W.QR20DE; 7.5A |
24319C9907 |
from US $0.86 |
||
|
25464
|
25464
24319C9910 Fuse0010--01 ~ 0306--01; *W.QR20DE; 10A |
24319C9910 |
from US $0.86 |
||
|
25464
|
25464
24319C9915 Fuse0010--01 ~ 0306--01; *W.QR20DE; 15A |
24319C9915 |
from US $0.86 |
||
|
25464
|
25464
24319C9920 Fuse0010--01 ~ 0306--01; *W.QR20DE; 20A |
24319C9920 |
from US $0.86 |
||
|
25464
|
25464
24319C9903 Fuse0010--01 ~ 0306--01; *W.QR20DE; 3A |
24319C9903 |
from US $0.86 |
||
|
25464
|
25464
24319C9907 Fuse0010--01 ~ 0306--01; *W.QR20DE; 7.5A |
24319C9907 |
from US $0.86 |
||
|
25464
|
25464
24319C9910 Fuse0010--01 ~ 0306--01; *W.QR20DE; 10A |
24319C9910 |
from US $0.86 |
||
|
25464
|
25464
24319C9915 Fuse0010--01 ~ 0306--01; *W.QR20DE; 15A |
24319C9915 |
from US $0.86 |
||
|
25464
|
25464
24319C9920 Fuse0010--01 ~ 0306--01; *W.QR20DE; 20A |
24319C9920 |
from US $0.86 |
||
|
25464
|
25464
24319C9903 Fuse0010--01 ~ 0306--01; *W.QR20DE; 3A |
24319C9903 |
from US $0.86 |
||
|
25464
|
25464
24319C9907 Fuse0010--01 ~ 0306--01; *W.QR20DE; 7.5A |
24319C9907 |
from US $0.86 |
||
|
25464
|
25464
24319C9910 Fuse0010--01 ~ 0306--01; *W.QR20DE; 10A |
24319C9910 |
from US $0.86 |
||
|
25464
|
25464
24319C9915 Fuse0010--01 ~ 0306--01; *W.QR20DE; 15A |
24319C9915 |
from US $0.86 |
||
|
25464
|
25464
24319C9920 Fuse0010--01 ~ 0306--01; *W.QR20DE; 20A |
24319C9920 |
from US $0.86 |
||
|
25464
|
25464
24319C9903 Fuse0010--01 ~ 0306--01; *W.QR20DE; 3A |
24319C9903 |
from US $0.86 |
||
|
25464
|
25464
24319C9907 Fuse0010--01 ~ 0306--01; *W.QR20DE; 7.5A |
24319C9907 |
from US $0.86 |
||
|
25464
|
25464
24319C9910 Fuse0010--01 ~ 0306--01; *W.QR20DE; 10A |
24319C9910 |
from US $0.86 |
||
|
25464
|
25464
24319C9915 Fuse0010--01 ~ 0306--01; *W.QR20DE; 15A |
24319C9915 |
from US $0.86 |
||
|
25464
|
25464
24319C9920 Fuse0010--01 ~ 0306--01; *W.QR20DE; 20A |
24319C9920 |
from US $0.86 |
