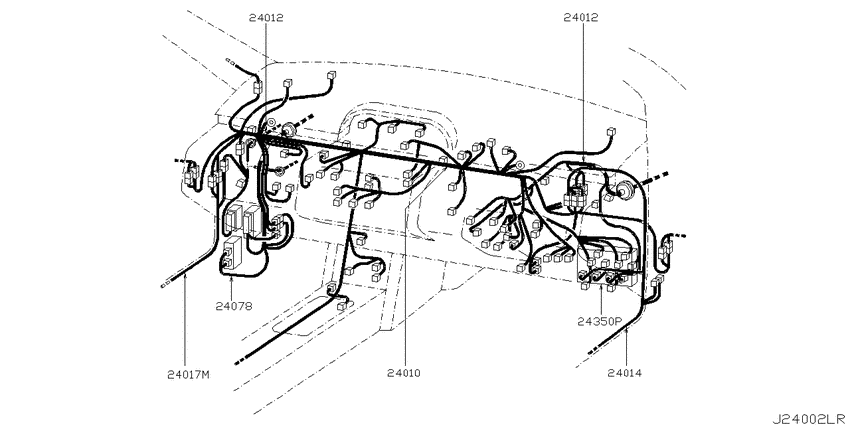

Wiring (2000-10-01 ~ ; ﾀﾞｯｼｭ周り立体図; W.QR20DE) Diagram Nissan X-TRAIL
- Year
- 2000 - 2012
- Sales region
- Japan
- Engine
- QR20DE
- drive
- 4WD
- transmission
- AT
- grade
- X
- body
- W
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
24010
|
24010
24010-8H305 Harness Assy-Main0010--01 ~ 0209--01; W.4WD.X |
24010-8H305 |
US $2,744 |
||
|
24010
|
24010
24010-8H306 Harness Assy-Main0010--01 ~ 0209--01; *W.4WD.X |
24010-8H306 |
US $2,744 |
||
|
24010
|
24010
24010-8H308 Harness Assy-Main0010--01 ~ 0209--01; *W.4WD.X |
24010-8H308 |
US $2,744 |
||
|
24010
|
24010
24010-8H365 Harness Assy-Main0209--01 ~ 0306--01; W.4WD.X |
24010-8H365 |
US $2,744 |
||
|
24010
|
24010
240108H366 Harness Assy-Main0209--01 ~ 0306--01; *W.4WD.X |
240108H366 |
US $2,744 |
||
|
24010
|
24010
24010-8H368 Harness Assy-Main0209--01 ~ 0306--01; *W.4WD.X |
24010-8H368 |
US $2,744 |
||
|
24010
|
24010
24010EQ003 Harness Assy-Main0306--01 ~ 0512--01; W.4WD.X |
24010EQ003 |
US $2,744 |
||
|
24010
|
24010
24010-EQ004 Harness Assy-Main0306--01 ~ 0512--01; *W.4WD.X |
24010-EQ004 |
US $2,744 |
||
|
24010
|
24010
24010-EQ005 Harness Assy-Main0306--01 ~ 0512--01; *W.4WD.X |
24010-EQ005 |
US $2,744 |
||
|
24010
|
24010
24010EQ064 Harness Assy-Main0411--01 ~ 0512--01; *W.4WD.X |
24010EQ064 |
US $2,744 |
||
|
24010
|
24010
24010-EQ065 Harness Assy-Main0411--01 ~ 0512--01; *W.4WD.X |
24010-EQ065 |
US $2,744 |
||
|
24010
|
24010
24010-ES50D Harness Assy-Main0512--01 ~ ; W.4WD.X |
24010-ES50D |
US $2,744 |
||
|
24010
|
24010
24010-ES50E Harness Assy-Main0512--01 ~ ; *W.4WD.X |
24010-ES50E |
US $2,744 |
||
|
24010
|
24010
24010-ES51A Harness Assy-Main0512--01 ~ ; *W.4WD.X |
24010-ES51A |
US $2,744 |
||
|
24010
|
24010
24010-ES52C Harness Assy-Main0512--01 ~ ; *W.4WD.X |
24010-ES52C |
US $2,744 |
||
|
24010
|
24010
24010-ES52D Harness Assy-Main0512--01 ~ ; *W.4WD.X |
24010-ES52D |
US $2,744 |
||
|
24012
|
24012
24012-8H305 Harness Assy-Engine Room0010--01 ~ 0209--01; W.4WD.X |
24012-8H305 |
US $2,744 |
||
|
24012
|
24012
24012-8H306 Harness Assy-Engine Room0010--01 ~ 0209--01; *W.4WD.S.AT +*W.4WD.X |
24012-8H306 |
US $2,744 |
||
|
24012
|
24012
24012-8H308 Harness Assy-Engine Room0010--01 ~ 0101--01; *W.4WD.S.AT +*W.4WD.X |
24012-8H308 |
US $2,744 |
||
|
24012
|
24012
24012-8H315 Harness Assy-Engine Room0010--01 ~ 0105--01; *W.4WD.S.AT +*W.4WD.X |
24012-8H315 |
US $2,744 |
||
|
24012
|
24012
24012-8H316 Harness Assy-Engine Room0101--01 ~ 0209--01; *W.4WD.S.AT +*W.4WD.X +*W.MT |
24012-8H316 |
US $2,744 |
||
|
24012
|
24012
24012-8H365 Harness Assy-Engine Room0209--01 ~ 0306--01; W.4WD.X |
24012-8H365 |
US $2,744 |
||
|
24012
|
24012
24012-8H375 Harness Assy-Engine Room0209--01 ~ 0306--01; *W.4WD.S.AT +*W.4WD.X |
24012-8H375 |
US $2,744 |
||
|
24012
|
24012
240128H376 Harness Assy-Engine Room0209--01 ~ 0306--01; *W.4WD.S.AT +*W.4WD.X |
240128H376 |
US $2,744 |
||
|
24012
|
24012
24012-8H380 Harness Assy-Engine Room0303--01 ~ 0306--01; *W.4WD.X |
24012-8H380 |
US $2,744 |
||
|
24012
|
24012
24012-EQ000 Harness Assy-Engine Room0306--01 ~ 0512--01; W.4WD.S.AT +W.4WD.X |
24012-EQ000 |
US $2,744 |
||
|
24012
|
24012
24012-EQ001 Harness Assy-Engine Room0306--01 ~ 0512--01; *W.4WD.S.AT +*W.4WD.X |
24012-EQ001 |
US $2,744 |
||
|
24012
|
24012
24012EQ002 Harness Assy-Engine Room0306--01 ~ 0512--01; *W.4WD.S.AT +*W.4WD.X |
24012EQ002 |
US $2,744 |
||
|
24012
|
24012
24012-EQ061 Harness Assy-Engine Room0411--01 ~ 0512--01; *W.4WD.S.AT +*W.4WD.X |
24012-EQ061 |
US $2,744 |
||
|
24012
|
24012
24012-EQ062 Harness Assy-Engine Room0411--01 ~ 0512--01; *W.4WD.S.AT +*W.4WD.X |
24012-EQ062 |
US $2,744 |
||
|
24012
|
24012
24012-ES50A Harness Assy-Engine Room0512--01 ~ ; W.4WD.S.AT +W.4WD.X |
24012-ES50A |
US $2,744 |
||
|
24012
|
24012
24012-ES50B Harness Assy-Engine Room0512--01 ~ ; *W.4WD.S.AT +*W.4WD.X |
24012-ES50B |
US $2,744 |
||
|
24012
|
24012
24012-ES50C Harness Assy-Engine Room0512--01 ~ ; *W.4WD.S.AT +*W.4WD.X |
24012-ES50C |
US $2,744 |
||
|
24012
|
24012
24012-ES50D Harness Assy-Engine Room0512--01 ~ ; *W.4WD.S.AT +*W.4WD.X |
24012-ES50D |
US $2,744 |
||
|
24012
|
24012
24012-ES51A Harness Assy-Engine Room0605--01 ~ ; *W.4WD.S.AT +*W.4WD.X |
24012-ES51A |
US $2,744 |
||
|
24012
|
24012
24012-ES51B Harness Assy-Engine Room0605--01 ~ ; *W.4WD.S.AT +*W.4WD.X |
24012-ES51B |
US $2,744 |
||
|
24012
|
24012
01466-00371 SCREW0010--01 ~ 0306--01; W.QR20DE |
01466-00371 |
US $1.73 |
||
|
24012
|
24012
0145600411 SCREW0411--01 ~ 0512--01; *W.4WD.S.AT +*W.4WD.X |
0145600411 |
US $1.67 |
||
|
24012
|
24012
0145600411 SCREW0010--01 ~ ; W.QR20DE |
0145600411 |
US $1.67 |
||
|
24012
|
24012
24012-8H305 Harness Assy-Engine Room0010--01 ~ 0209--01; W.4WD.X |
24012-8H305 |
US $2,744 |
||
|
24012
|
24012
24012-8H306 Harness Assy-Engine Room0010--01 ~ 0209--01; *W.4WD.S.AT +*W.4WD.X |
24012-8H306 |
US $2,744 |
||
|
24012
|
24012
24012-8H308 Harness Assy-Engine Room0010--01 ~ 0101--01; *W.4WD.S.AT +*W.4WD.X |
24012-8H308 |
US $2,744 |
||
|
24012
|
24012
24012-8H315 Harness Assy-Engine Room0010--01 ~ 0105--01; *W.4WD.S.AT +*W.4WD.X |
24012-8H315 |
US $2,744 |
||
|
24012
|
24012
24012-8H316 Harness Assy-Engine Room0101--01 ~ 0209--01; *W.4WD.S.AT +*W.4WD.X +*W.MT |
24012-8H316 |
US $2,744 |
||
|
24012
|
24012
24012-8H365 Harness Assy-Engine Room0209--01 ~ 0306--01; W.4WD.X |
24012-8H365 |
US $2,744 |
||
|
24012
|
24012
24012-8H375 Harness Assy-Engine Room0209--01 ~ 0306--01; *W.4WD.S.AT +*W.4WD.X |
24012-8H375 |
US $2,744 |
||
|
24012
|
24012
240128H376 Harness Assy-Engine Room0209--01 ~ 0306--01; *W.4WD.S.AT +*W.4WD.X |
240128H376 |
US $2,744 |
||
|
24012
|
24012
24012-8H380 Harness Assy-Engine Room0303--01 ~ 0306--01; *W.4WD.X |
24012-8H380 |
US $2,744 |
||
|
24012
|
24012
24012-EQ000 Harness Assy-Engine Room0306--01 ~ 0512--01; W.4WD.S.AT +W.4WD.X |
24012-EQ000 |
US $2,744 |
||
|
24012
|
24012
24012-EQ001 Harness Assy-Engine Room0306--01 ~ 0512--01; *W.4WD.S.AT +*W.4WD.X |
24012-EQ001 |
US $2,744 |
||
|
24012
|
24012
24012EQ002 Harness Assy-Engine Room0306--01 ~ 0512--01; *W.4WD.S.AT +*W.4WD.X |
24012EQ002 |
US $2,744 |
||
|
24012
|
24012
24012-EQ061 Harness Assy-Engine Room0411--01 ~ 0512--01; *W.4WD.S.AT +*W.4WD.X |
24012-EQ061 |
US $2,744 |
||
|
24012
|
24012
24012-EQ062 Harness Assy-Engine Room0411--01 ~ 0512--01; *W.4WD.S.AT +*W.4WD.X |
24012-EQ062 |
US $2,744 |
||
|
24012
|
24012
24012-ES50A Harness Assy-Engine Room0512--01 ~ ; W.4WD.S.AT +W.4WD.X |
24012-ES50A |
US $2,744 |
||
|
24012
|
24012
24012-ES50B Harness Assy-Engine Room0512--01 ~ ; *W.4WD.S.AT +*W.4WD.X |
24012-ES50B |
US $2,744 |
||
|
24012
|
24012
24012-ES50C Harness Assy-Engine Room0512--01 ~ ; *W.4WD.S.AT +*W.4WD.X |
24012-ES50C |
US $2,744 |
||
|
24012
|
24012
24012-ES50D Harness Assy-Engine Room0512--01 ~ ; *W.4WD.S.AT +*W.4WD.X |
24012-ES50D |
US $2,744 |
||
|
24012
|
24012
24012-ES51A Harness Assy-Engine Room0605--01 ~ ; *W.4WD.S.AT +*W.4WD.X |
24012-ES51A |
US $2,744 |
||
|
24012
|
24012
24012-ES51B Harness Assy-Engine Room0605--01 ~ ; *W.4WD.S.AT +*W.4WD.X |
24012-ES51B |
US $2,744 |
||
|
24012
|
24012
01466-00371 SCREW0010--01 ~ 0306--01; W.QR20DE |
01466-00371 |
US $1.73 |
||
|
24012
|
24012
0145600411 SCREW0411--01 ~ 0512--01; *W.4WD.S.AT +*W.4WD.X |
0145600411 |
US $1.67 |
||
|
24012
|
24012
0145600411 SCREW0010--01 ~ ; W.QR20DE |
0145600411 |
US $1.67 |
||
|
24014
|
24014
24014-8H301 Harness Assy-Body0010--01 ~ 0306--01; *W.QR20DE |
24014-8H301 |
US $580.56 |
||
|
24014
|
24014
24014-8H302 Harness Assy-Body0010--01 ~ 0306--01; *W.QR20DE |
24014-8H302 |
US $580.56 |
||
|
24014
|
24014
24014-8H304 Harness Assy-Body0010--01 ~ 0306--01; *W.QR20DE |
24014-8H304 |
US $580.56 |
||
|
24014
|
24014
24014-8H305 Harness Assy-Body0209--01 ~ 0306--01; *W.4WD.S.AT +*W.4WD.X |
24014-8H305 |
US $580.56 |
||
|
24014
|
24014
24014-EQ000 Harness Assy-Body0306--01 ~ 0402--01; W.QR20DE |
24014-EQ000 |
US $580.56 |
||
|
24014
|
24014
24014-EQ001 Harness Assy-Body0306--01 ~ 0403--01; *W.QR20DE |
24014-EQ001 |
US $580.56 |
||
|
24014
|
24014
24014-EQ002 Harness Assy-Body0306--01 ~ 0403--01; *W.QR20DE |
24014-EQ002 |
US $580.56 |
||
|
24014
|
24014
24014-EQ060 Harness Assy-Body0402--01 ~ 0512--01; W.QR20DE |
24014-EQ060 |
US $580.56 |
||
|
24014
|
24014
24014-EQ061 Harness Assy-Body0403--01 ~ 0512--01; *W.QR20DE |
24014-EQ061 |
US $580.56 |
||
|
24014
|
24014
24014-EQ062 Harness Assy-Body0403--01 ~ 0512--01; *W.QR20DE |
24014-EQ062 |
US $580.56 |
||
|
24014
|
24014
24014-EQ101 Harness Assy-Body0411--01 ~ 0512--01; *W.4WD.S.AT +*W.4WD.X |
24014-EQ101 |
US $580.56 |
||
|
24014
|
24014
24014-EQ102 Harness Assy-Body0411--01 ~ 0512--01; *W.4WD.S.AT +*W.4WD.X |
24014-EQ102 |
US $580.56 |
||
|
24014
|
24014
24014ES50A Harness Assy-Body0512--01 ~ ; W.QR20DE |
24014ES50A |
US $580.56 |
||
|
24014
|
24014
24014-ES50B Harness Assy-Body0512--01 ~ ; *W.QR20DE |
24014-ES50B |
US $580.56 |
||
|
24014
|
24014
24014-ES50C Harness Assy-Body0512--01 ~ ; *W.QR20DE |
24014-ES50C |
US $580.56 |
||
|
24014
|
24014
24014-ES51A Harness Assy-Body0512--01 ~ ; *W.4WD.S.AT +*W.4WD.X |
24014-ES51A |
US $580.56 |
||
|
24014
|
24014
24014-ES51B Harness Assy-Body0512--01 ~ ; *W.4WD.S.AT +*W.4WD.X |
24014-ES51B |
US $580.56 |
||
|
24014
|
24014
0122100381 NUT0010--01 ~ 0212--01; W.QR20DE |
0122100381 |
from US $5.37 |
||
|
24017M
|
24017M
24017-8H301 Harness-Body, No20010--01 ~ 0306--01; *W.4WD.S.AT +*W.4WD.X +*W.MT |
24017-8H301 |
US $580.56 |
||
|
24017M
|
24017M
24017-8H302 Harness-Body, No20010--01 ~ 0306--01; *W.4WD.S.AT +*W.4WD.X +*W.MT |
24017-8H302 |
US $580.56 |
||
|
24017M
|
24017M
24017-8H303 Harness-Body, No20010--01 ~ 0306--01; *W.4WD.S.AT +*W.4WD.X +*W.MT |
24017-8H303 |
US $580.56 |
||
|
24017M
|
24017M
24017-8H305 Harness-Body, No20209--01 ~ 0306--01; *W.4WD.S.AT +*W.4WD.X |
24017-8H305 |
US $580.56 |
||
|
24017M
|
24017M
24017-8H306 Harness-Body, No20209--01 ~ 0306--01; *W.4WD.S.AT +*W.4WD.X |
24017-8H306 |
US $580.56 |
||
|
24017M
|
24017M
24017-EQ000 Harness-Body, No20306--01 ~ 0403--01; W.4WD.S.AT +W.4WD.X +W.MT |
24017-EQ000 |
US $580.56 |
||
|
24017M
|
24017M
24017-EQ001 Harness-Body, No20306--01 ~ 0403--01; *W.4WD.S.AT +*W.4WD.X +*W.MT |
24017-EQ001 |
US $580.56 |
||
|
24017M
|
24017M
24017-EQ002 Harness-Body, No20306--01 ~ 0403--01; *W.4WD.S.AT +*W.4WD.X +*W.MT |
24017-EQ002 |
US $580.56 |
||
|
24017M
|
24017M
24017-EQ060 Harness-Body, No20403--01 ~ 0512--01; W.4WD.S.AT +W.4WD.X +W.MT |
24017-EQ060 |
US $580.56 |
||
|
24017M
|
24017M
24017-EQ061 Harness-Body, No20403--01 ~ 0512--01; *W.4WD.S.AT +*W.4WD.X +*W.MT |
24017-EQ061 |
US $580.56 |
||
|
24017M
|
24017M
24017-EQ062 Harness-Body, No20403--01 ~ 0512--01; *W.4WD.S.AT +*W.4WD.X +*W.MT |
24017-EQ062 |
US $580.56 |
||
|
24017M
|
24017M
24017-EQ101 Harness-Body, No20411--01 ~ 0512--01; *W.4WD.S.AT +*W.4WD.X |
24017-EQ101 |
US $580.56 |
||
|
24017M
|
24017M
24017-EQ102 Harness-Body, No20411--01 ~ 0512--01; *W.4WD.S.AT +*W.4WD.X |
24017-EQ102 |
US $580.56 |
||
|
24017M
|
24017M
24017-ES50A Harness-Body, No20512--01 ~ ; *W.4WD.S.AT +*W.4WD.X +*W.MT |
24017-ES50A |
US $580.56 |
||
|
24017M
|
24017M
24017-ES50B Harness-Body, No20512--01 ~ ; *W.4WD.S.AT +*W.4WD.X +*W.MT |
24017-ES50B |
US $580.56 |
||
|
24017M
|
24017M
24017ES50C Harness-Body, No20512--01 ~ ; W.4WD.S.AT +W.4WD.X +W.MT |
24017ES50C |
US $580.56 |
||
|
24017M
|
24017M
24017-ES51A Harness-Body, No20512--01 ~ ; *W.4WD.S.AT +*W.4WD.X |
24017-ES51A |
US $580.56 |
||
|
24017M
|
24017M
24017-ES51B Harness-Body, No20512--01 ~ ; *W.4WD.S.AT +*W.4WD.X |
24017-ES51B |
US $580.56 |
||
|
24078
|
24078
24011-8H300 Harness Assy-Egi0010--01 ~ 0306--01; W.2WD +W.4WD.S.AT +W.4WD.X |
24011-8H300 |
US $1,104.48 |
||
|
24078
|
24078
24011-EQ000 Harness Assy-Egi0306--01 ~ ; W.2WD +W.4WD.S.AT +W.4WD.X |
24011-EQ000 |
US $1,104.48 |
||
|
24350P
|
24350P
24350-8H300 Block-Junction0010--01 ~ 0306--01; W.QR20DE |
24350-8H300 |
US $141.98 |
||
|
24350P
|
24350P
24350-EQ000 Block-Junction0306--01 ~ 0411--01; W.QR20DE |
24350-EQ000 |
US $288 |
||
|
24350P
|
24350P
24350-EQ002 Block-Junction0411--01 ~ ; W.QR20DE |
24350-EQ002 |
US $290.28 |
