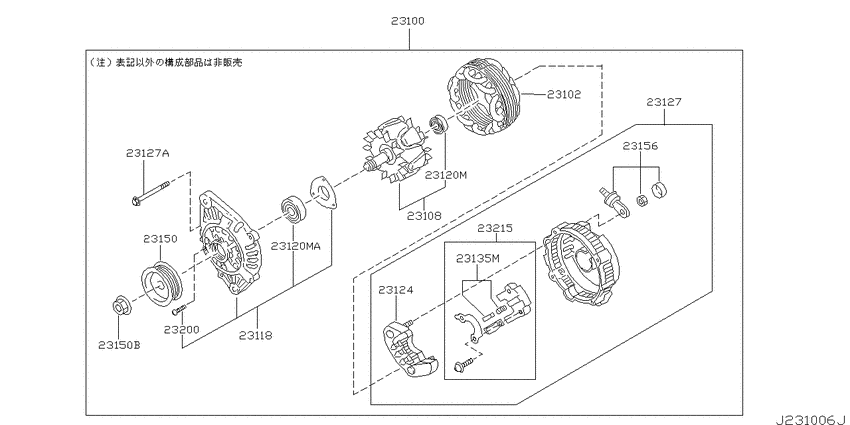

Alternator (2003-08-01 ~ 2005-12-01; 三菱; SR20VET) Diagram Nissan X-TRAIL
- Year
- 2000 - 2003
- Sales region
- Japan
- Engine
- SR20VET
- drive
- 4WD
- transmission
- AT
- grade
- GT
- body
- W
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
23100
|
23100
23100-4M611 Alternator Assy0010--01 ~ 0306--01; SR20VET; ﾐﾂﾋﾞｼ |
23100-4M611 |
US $1,750 |
||
|
23100
|
23100
0122100381 NUT0010--01 ~ 0306--01; SR20VET |
0122100381 |
from US $5.37 |
||
|
23102
|
23102
23102-5V410 Stator Assy0010--01 ~ 0306--01; SR20VET; ﾐﾂﾋﾞｼ |
23102-5V410 |
US $832.61 |
||
|
23108
|
23108
23108-5V410 Rotor Assy0010--01 ~ 0306--01; SR20VET; ﾐﾂﾋﾞｼ |
23108-5V410 |
US $553.66 |
||
|
23118
|
23118
23118-4N010 Cover Assy-Front0408--01 ~ ; SR20VET; ﾐﾂﾋﾞｼ |
23118-4N010 |
US $162.72 |
||
|
23118
|
23118
23118-64J15 Cover Assy-Front0010--01 ~ 0306--01; SR20VET; ﾐﾂﾋﾞｼ |
23118-64J15 |
US $136.80 |
||
|
23120M
|
23120M
23120-30R10
Bearing-Ball
0010--01 ~ 0306--01; SR20VET; ﾐﾂﾋﾞｼ |
23120-30R10 |
— | ||
| replacement | |||||
|
23120M
|
23120M
2312051E10 BEARING-BALL0010--01 ~ 0306--01; SR20VET; ﾐﾂﾋﾞｼ |
2312051E10 |
from US $34.67 |
||
|
23120M
|
23120M
23120-22J20 Bearing-Ball0010--01 ~ 0306--01; SR20VET; ﾐﾂﾋﾞｼ |
23120-22J20 |
from US $22.31 |
||
|
23120MA
|
23120MA
23120-22J20 Bearing-Ball0010--01 ~ 0306--01; SR20VET; ﾐﾂﾋﾞｼ |
23120-22J20 |
from US $22.31 |
||
|
23124
|
23124
23124-6J111 Rectifier Assy0010--01 ~ 0306--01; SR20VET; ﾐﾂﾋﾞｼ |
23124-6J111 |
US $244.80 |
||
|
23127
|
23127
23127-4M611 Cover Assy-Rear0010--01 ~ 0306--01; SR20VET; ﾐﾂﾋﾞｼ |
23127-4M611 |
US $737.74 |
||
|
23127
|
23127
23127-4M612 Cover Assy-Rear0408--01 ~ ; SR20VET; ﾐﾂﾋﾞｼ |
23127-4M612 |
US $812.78 |
||
|
23127
|
23127
23131-20P10 Bolt-Through0010--01 ~ 0306--01; SR20VET; ﾐﾂﾋﾞｼ |
23131-20P10 |
US $5.04 |
||
|
23127A
|
23127A
23131-20P10 Bolt-Through0010--01 ~ 0306--01; SR20VET; ﾐﾂﾋﾞｼ |
23131-20P10 |
US $5.04 |
||
|
23135M
|
23135M
231420B000 Brush-F0010--01 ~ 0306--01; SR20VET; ﾐﾂﾋﾞｼ |
231420B000 |
from US $13.54 |
||
|
23150
|
23150
23150-4N010 Pulley Assy0010--01 ~ 0306--01; SR20VET; ﾐﾂﾋﾞｼ |
23150-4N010 |
US $146.88 |
||
|
23150
|
23150
23153-70T12 Plate-Terminal0010--01 ~ 0306--01; SR20VET; ﾐﾂﾋﾞｼ |
23153-70T12 |
US $4.42 |
||
|
23150B
|
23150B
23153-70T12 Plate-Terminal0010--01 ~ 0306--01; SR20VET; ﾐﾂﾋﾞｼ |
23153-70T12 |
US $4.42 |
||
|
23156
|
23156
231560M810 Terminal Assy-B0010--01 ~ 0306--01; SR20VET; ﾐﾂﾋﾞｼ |
231560M810 |
US $14.54 |
||
|
23156
|
23156
23156-AU410 Terminal Assy-B0408--01 ~ ; SR20VET; ﾐﾂﾋﾞｼ |
23156-AU410 |
US $12.10 |
||
|
23200
|
23200
23200-20P10 Screw Set0010--01 ~ 0306--01; SR20VET; ﾐﾂﾋﾞｼ |
23200-20P10 |
US $5.04 |
||
|
23215
|
23215
23215-6J111 Regulator Assy-Ic0010--01 ~ 0306--01; SR20VET; ﾐﾂﾋﾞｼ |
23215-6J111 |
US $322.85 |
||
