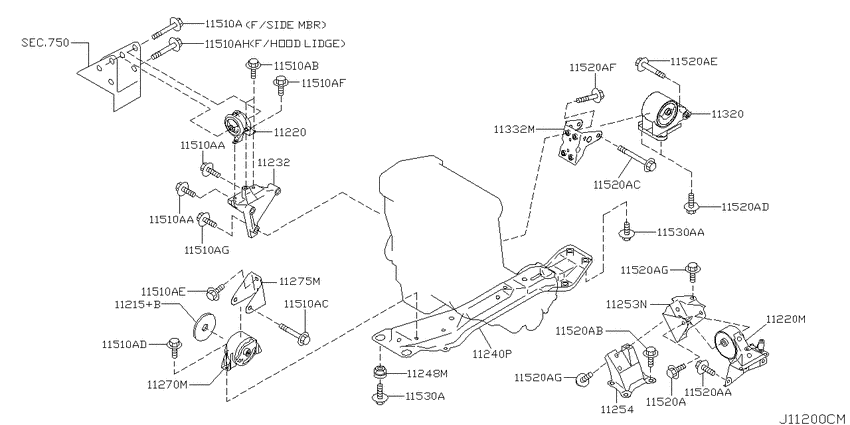

Engine & transmission mounting (2003-08-01 ~ ; SR20VET) Diagram Nissan X-TRAIL
- Year
- 2000 - 2003
- Sales region
- Japan
- Engine
- SR20VET
- drive
- 4WD
- transmission
- AT
- grade
- GT
- body
- W
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11215+B
|
11215+B
1121550A00 Stopper-Engine Mounting0010--01 ~ 0306--01; SR20VET |
1121550A00 |
US $11.38 |
||
|
11220
|
11220
112108H800 Insulator-Engine Mounting, Front0010--01 ~ 0306--01; SR20VET |
112108H800 |
US $240.48 |
||
|
11220
|
11220
11220-AU422 Insulator Assy-Engine Mounting, Front Lh0010--01 ~ 0306--01; SR20VET |
11220-AU422 |
from US $83.32 |
||
|
11220M
|
11220M
11220-AU422 Insulator Assy-Engine Mounting, Front Lh0010--01 ~ 0306--01; SR20VET |
11220-AU422 |
from US $83.32 |
||
|
11232
|
11232
11231-8H600 Bracket-Engine Mounting, Rh0010--01 ~ 0306--01; SR20VET |
11231-8H600 |
US $99.65 |
||
|
11240P
|
11240P
112408H300 Member Assy-Engine Mounting0010--01 ~ 0306--01; SR20VET |
112408H300 |
US $211.68 |
||
|
11248M
|
11248M
112485M300 Pad-Engine Mounting Member0010--01 ~ 0306--01; SR20VET |
112485M300 |
US $7.91 |
||
|
11253N
|
11253N
11253-8H605 Bracket-Engine Mounting, Lh0010--01 ~ 0306--01; SR20VET |
11253-8H605 |
US $124.13 |
||
|
11254
|
11254
11253-8H600 Support-Engine Mounting, Lh0010--01 ~ 0306--01; SR20VET |
11253-8H600 |
US $124.13 |
||
|
11270M
|
11270M
11270-8H300 Insulator Assy-Engine Mounting, Front0010--01 ~ 0306--01; SR20VET |
11270-8H300 |
from US $81.50 |
||
|
11275M
|
11275M
11274-8H600 Bracket-Engine Mounting Block, Front0010--01 ~ 0306--01; SR20VET |
11274-8H600 |
US $44.64 |
||
|
11320
|
11320
11320-8H300
Insulator-Engine Mounting, Rear
0010--01 ~ 0306--01; SR20VET |
11320-8H300 |
— | ||
| replacement | |||||
|
11320
|
11320
113208H800 Insulator-Engine Mounting, Rear0010--01 ~ 0306--01; SR20VET |
113208H800 |
from US $81.49 |
||
|
11320
|
11320
113208H800 Insulator-Engine Mounting, Rear0308--01 ~ ; SR20VET |
113208H800 |
from US $81.49 |
||
|
11332M
|
11332M
11332-8H300 Bracket-Engine Mounting, Rear0010--01 ~ 0306--01; SR20VET |
11332-8H300 |
US $67.25 |
||
|
11510A
|
11510A
11298-4M417 Bolt0010--01 ~ 0306--01; SR20VET |
11298-4M417 |
US $3.46 |
||
|
11510A
|
11510A
112983J200 Bolt0010--01 ~ 0306--01; SR20VET |
112983J200 |
from US $1.74 |
||
|
11510A
|
11510A
11298-4M406 Bolt0010--01 ~ 0306--01; SR20VET |
11298-4M406 |
US $4.03 |
||
|
11510A
|
11510A
112984M420 Bolt0010--01 ~ 0306--01; SR20VET |
112984M420 |
US $3.46 |
||
|
11510A
|
11510A
11298-4M419 Bolt0010--01 ~ 0306--01; SR20VET |
11298-4M419 |
from US $1.81 |
||
|
11510A
|
11510A
01125-02871 BOLT0010--01 ~ 0306--01; SR20VET |
01125-02871 |
US $2.45 |
||
|
11510A
|
11510A
11298-2U600 Bolt0010--01 ~ 0306--01; SR20VET |
11298-2U600 |
US $3.46 |
||
|
11510A
|
11510A
11298-2J215 Bolt0010--01 ~ 0306--01; SR20VET |
11298-2J215 |
US $3.46 |
||
|
11510A
|
11510A
11298-4M417 Bolt0010--01 ~ 0306--01; SR20VET |
11298-4M417 |
US $3.46 |
||
|
11510AA
|
11510AA
112983J200 Bolt0010--01 ~ 0306--01; SR20VET |
112983J200 |
from US $1.74 |
||
|
11510AA
|
11510AA
112983J200 Bolt0010--01 ~ 0306--01; SR20VET |
112983J200 |
from US $1.74 |
||
|
11510AB
|
11510AB
11298-4M406 Bolt0010--01 ~ 0306--01; SR20VET |
11298-4M406 |
US $4.03 |
||
|
11510AC
|
11510AC
112984M420 Bolt0010--01 ~ 0306--01; SR20VET |
112984M420 |
US $3.46 |
||
|
11510AD
|
11510AD
11298-4M419 Bolt0010--01 ~ 0306--01; SR20VET |
11298-4M419 |
from US $1.81 |
||
|
11510AE
|
11510AE
01125-02871 BOLT0010--01 ~ 0306--01; SR20VET |
01125-02871 |
US $2.45 |
||
|
11510AF
|
11510AF
11298-2U600 Bolt0010--01 ~ 0306--01; SR20VET |
11298-2U600 |
US $3.46 |
||
|
11510AG
|
11510AG
11298-2J215 Bolt0010--01 ~ 0306--01; SR20VET |
11298-2J215 |
US $3.46 |
||
|
11510AH
|
11510AH
11298-4M417 Bolt0010--01 ~ 0306--01; SR20VET |
11298-4M417 |
US $3.46 |
||
|
11520A
|
11520A
11298-4U700 Bolt0010--01 ~ 0306--01; SR20VET |
11298-4U700 |
US $3.46 |
||
|
11520A
|
11520A
112985V500 Bolt0010--01 ~ 0306--01; SR20VET |
112985V500 |
US $3.46 |
||
|
11520A
|
11520A
11298-8H500 Bolt0407--01 ~ ; SR20VET |
11298-8H500 |
US $3.46 |
||
|
11520A
|
11520A
11298-4M412 Bolt0010--01 ~ 0306--01; SR20VET |
11298-4M412 |
US $3.46 |
||
|
11520A
|
11520A
112988H301 Bolt0010--01 ~ 0306--01; SR20VET |
112988H301 |
from US $2.02 |
||
|
11520A
|
11520A
11298-5U000 Bolt0010--01 ~ 0306--01; SR20VET |
11298-5U000 |
US $3.46 |
||
|
11520A
|
11520A
11298-8H303 Bolt0010--01 ~ 0306--01; SR20VET |
11298-8H303 |
from US $1.74 |
||
|
11520A
|
11520A
112982J202 Bolt0010--01 ~ 0306--01; SR20VET |
112982J202 |
US $3.46 |
||
|
11520A
|
11520A
11298-4M411 Bolt0010--01 ~ 0306--01; SR20VET |
11298-4M411 |
from US $1.76 |
||
|
11520AA
|
11520AA
112985V500 Bolt0010--01 ~ 0306--01; SR20VET |
112985V500 |
US $3.46 |
||
|
11520AA
|
11520AA
11298-8H500 Bolt0407--01 ~ ; SR20VET |
11298-8H500 |
US $3.46 |
||
|
11520AB
|
11520AB
11298-4M412 Bolt0010--01 ~ 0306--01; SR20VET |
11298-4M412 |
US $3.46 |
||
|
11520AC
|
11520AC
112988H301 Bolt0010--01 ~ 0306--01; SR20VET |
112988H301 |
from US $2.02 |
||
|
11520AD
|
11520AD
11298-5U000 Bolt0010--01 ~ 0306--01; SR20VET |
11298-5U000 |
US $3.46 |
||
|
11520AE
|
11520AE
11298-8H303 Bolt0010--01 ~ 0306--01; SR20VET |
11298-8H303 |
from US $1.74 |
||
|
11520AF
|
11520AF
112982J202 Bolt0010--01 ~ 0306--01; SR20VET |
112982J202 |
US $3.46 |
||
|
11520AG
|
11520AG
11298-4M411 Bolt0010--01 ~ 0306--01; SR20VET |
11298-4M411 |
from US $1.76 |
||
|
11520AG
|
11520AG
11298-4M411 Bolt0010--01 ~ 0306--01; SR20VET |
11298-4M411 |
from US $1.76 |
||
|
11530A
|
11530A
112982J220 Bolt0507--01 ~ ; SR20VET |
112982J220 |
US $3.46 |
||
|
11530A
|
11530A
112984M413 Bolt0010--01 ~ 0306--01; SR20VET |
112984M413 |
US $4.03 |
||
|
11530A
|
11530A
11298-8H304 Bolt0010--01 ~ 0306--01; SR20VET |
11298-8H304 |
US $4.03 |
||
|
11530AA
|
11530AA
11298-8H304 Bolt0010--01 ~ 0306--01; SR20VET |
11298-8H304 |
US $4.03 |
||
|
