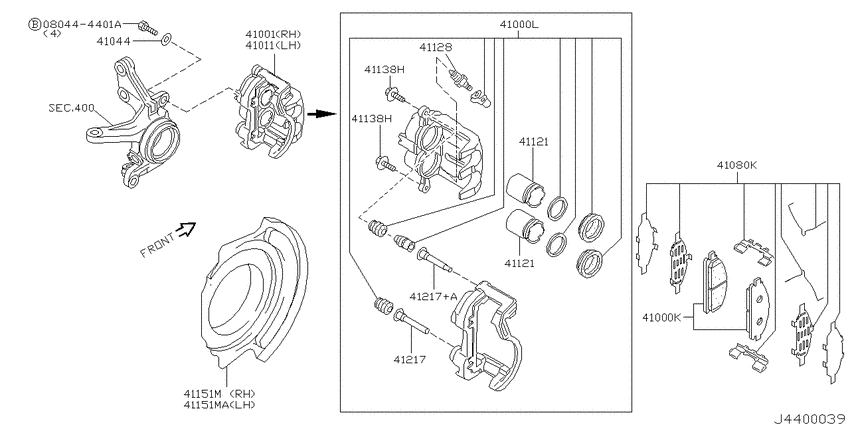

Front brake (2000-10-01 ~ 2003-06-01; SR20VET) Diagram Nissan X-TRAIL
- Year
- 2000 - 2003
- Sales region
- Japan
- Engine
- SR20VET
- drive
- 4WD
- transmission
- AT
- grade
- GT
- body
- W
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
080444401A
|
080444401A
08044-4401A
Bolt-hexagon
|
08044-4401A |
— | ||
|
400
|
Front axle
400
|
||||
|
41000K
|
41000K
AY040NS104 Pad Kit-Disc Brake0010--01 ~ 0306--01; SR20VET |
AY040NS104 |
US $158.40 |
||
|
41000L
|
41000L
AY600NS028 Seal Kit-Disc Brake0010--01 ~ 0306--01; SR20VET |
AY600NS028 |
US $52.13 |
||
|
41000L
|
41000L
AY600NS059 Seal Kit-Disc Brake0612--01 ~ ; SR20VET |
AY600NS059 |
US $62.06 |
||
|
41001
|
41001
41001-8H30A Caliper Assy-Front Rh, W/o Pads Or Shims0609--01 ~ ; SR20VET |
41001-8H30A |
US $385.15 |
||
|
41001
|
41001
41001-8H600 Caliper Assy-Front Rh, W/o Pads Or Shims0010--01 ~ 0306--01; SR20VET |
41001-8H600 |
US $385.15 |
||
|
41011
|
41011
41011-8H30A Caliper Assy-Front Lh, W/o Pads Or Shims0609--01 ~ ; SR20VET |
41011-8H30A |
US $385.15 |
||
|
41011
|
41011
41011-8H600 Caliper Assy-Front Lh, W/o Pads Or Shims0010--01 ~ 0306--01; SR20VET |
41011-8H600 |
US $385.15 |
||
|
41044
|
41044
41044-6P010 Washer0010--01 ~ 0306--01; SR20VET |
41044-6P010 |
US $3.46 |
||
|
41044
|
41044
410446P01A Washer0702--01 ~ ; SR20VET |
410446P01A |
from US $1.79 |
||
|
41080K
|
41080K
410808H385 Hardware Kit-Front Disc Brake Pad0609--01 ~ ; SR20VET |
410808H385 |
US $54.29 |
||
|
41080K
|
41080K
41080-8H386
Hardware Kit-Front Disc Brake Pad
0010--01 ~ 0306--01; SR20VET |
41080-8H386 |
— | ||
| replacements | |||||
|
41080K
|
41080K
D108M8H38J HARDWARE KITFR0010--01 ~ 0306--01; SR20VET |
D108M8H38J |
US $79.57 |
||
|
41080K
|
41080K
D400C-CD01B GREASE-BRAKE0010--01 ~ 0306--01; SR20VET |
D400C-CD01B |
US $4.30 |
||
|
41121
|
41121
411210W700 Piston-Cylinder0010--01 ~ 0306--01; SR20VET |
411210W700 |
from US $46.51 |
||
|
41121
|
41121
411210W700 Piston-Cylinder0010--01 ~ 0306--01; SR20VET |
411210W700 |
from US $46.51 |
||
|
41128
|
41128
411288J100 Screw-Bleeder0010--01 ~ 0306--01; SR20VET |
411288J100 |
from US $6.91 |
||
|
41138H
|
41138H
411360W700 Pin-Bolt0010--01 ~ 0306--01; SR20VET |
411360W700 |
from US $4.18 |
||
|
41138H
|
41138H
411360W700 Pin-Bolt0010--01 ~ 0306--01; SR20VET |
411360W700 |
from US $4.18 |
||
|
41151M
|
41151M
411512Y000 Plate-Baffle0010--01 ~ 0306--01; SR20VET |
411512Y000 |
US $43.93 |
||
|
41151M
|
41151M
411612Y000 Plate-Baffle0010--01 ~ 0306--01; SR20VET |
411612Y000 |
from US $43.93 |
||
|
41151MA
|
41151MA
411612Y000 Plate-Baffle0010--01 ~ 0306--01; SR20VET |
411612Y000 |
from US $43.93 |
||
|
41217
|
41217
411338H300 Pin0010--01 ~ 0306--01; SR20VET |
411338H300 |
from US $7.63 |
||
|
41217
|
41217
41134-8H300 Pin0010--01 ~ 0306--01; SR20VET |
41134-8H300 |
US $7.63 |
||
|
41217+A
|
41217+A
41134-8H300 Pin0010--01 ~ 0306--01; SR20VET |
41134-8H300 |
US $7.63 |
||
