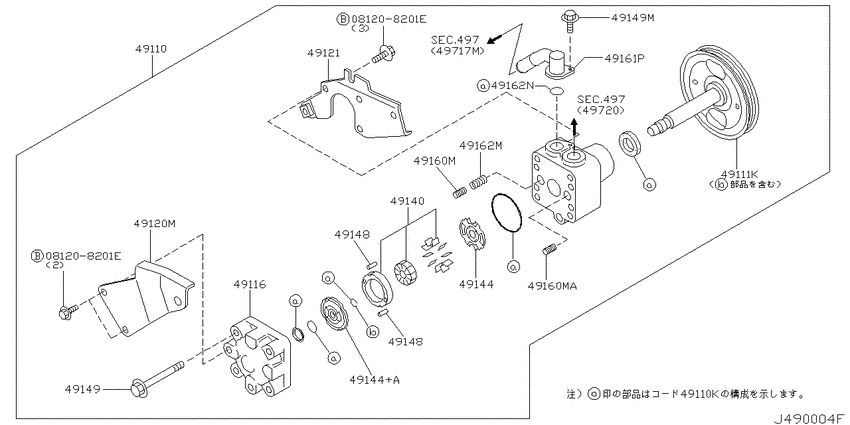

Power steering pump (2000-10-01 ~ 2003-06-01; SR20VET) Diagram Nissan X-TRAIL
- Year
- 2000 - 2003
- Sales region
- Japan
- Engine
- SR20VET
- drive
- 4WD
- transmission
- AT
- grade
- GT
- body
- W
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
081208201E
|
081208201E
081208201E Bolt-hexagon |
081208201E |
US $2.21 |
||
|
081208201E
|
081208201E
081208201E Bolt-hexagon |
081208201E |
US $2.21 |
||
|
49110
|
49110
49110-8H600 Pump Assy-Power Steering0010--01 ~ 0306--01; SR20VET |
49110-8H600 |
US $1,694 |
||
|
49110
|
49110
49110-8H60A Pump Assy-Power Steering0702--01 ~ ; SR20VET |
49110-8H60A |
US $1,694 |
||
|
49110
|
49110
49591-6C925 Seal Kit-Power Steering Pump0010--01 ~ 0306--01; SR20VET |
49591-6C925 |
from US $13.75 |
||
|
49110K
|
49110K
49591-6C925 Seal Kit-Power Steering Pump0010--01 ~ 0306--01; SR20VET |
49591-6C925 |
from US $13.75 |
||
|
49111K
|
49111K
49132-4N000 Pulley Kit-Power Steering Pump0702--01 ~ ; SR20VET |
49132-4N000 |
US $94.03 |
||
|
49111K
|
49111K
49132-4N025 Pulley Kit-Power Steering Pump0010--01 ~ 0306--01; SR20VET |
49132-4N025 |
US $155.52 |
||
|
49116
|
49116
49116-6M000 Cover-Rear, Power Steering Pump0010--01 ~ 0306--01; SR20VET |
49116-6M000 |
US $34.70 |
||
|
49120M
|
49120M
49122-7J400 Bracket Assy-Power Steering Pump0101--01 ~ 0306--01; SR20VET |
49122-7J400 |
US $68.11 |
||
|
49120M
|
49120M
49122-7J40A Bracket Assy-Power Steering Pump0702--01 ~ ; SR20VET |
49122-7J40A |
US $68.11 |
||
|
49120M
|
49120M
49122-8H600 Bracket Assy-Power Steering Pump0010--01 ~ 0101--01; SR20VET |
49122-8H600 |
US $68.11 |
||
|
49121
|
49121
49121-6M000 Bracket Assy-Power Steering Pump0010--01 ~ 0101--01; SR20VET |
49121-6M000 |
US $55.44 |
||
|
49121
|
49121
49121-7J400 Bracket Assy-Power Steering Pump0101--01 ~ 0306--01; SR20VET |
49121-7J400 |
US $126.29 |
||
|
49121
|
49121
49121-7J40A Bracket Assy-Power Steering Pump0702--01 ~ ; SR20VET |
49121-7J40A |
US $121.54 |
||
|
49140
|
49140
49140-8H300 Rotor & Camring Set-Power Steering Pump0010--01 ~ 0306--01; SR20VET |
49140-8H300 |
US $131.62 |
||
|
49144
|
49144
49144-4U000 Plate-Side, Power Steering Pump0101--01 ~ 0306--01; SR20VET |
49144-4U000 |
US $38.16 |
||
|
49144
|
49144
49144-6C900 Plate-Side, Power Steering Pump0010--01 ~ 0101--01; SR20VET |
49144-6C900 |
US $38.16 |
||
|
49144
|
49144
49144-6C910 Plate-Side, Power Steering Pump0010--01 ~ 0306--01; SR20VET |
49144-6C910 |
US $38.16 |
||
|
49144+A
|
49144+A
49144-6C910 Plate-Side, Power Steering Pump0010--01 ~ 0306--01; SR20VET |
49144-6C910 |
US $38.16 |
||
|
49148
|
49148
49148-6C900 Pin-Camring, Power Steering Pump0010--01 ~ 0306--01; SR20VET |
49148-6C900 |
US $2.74 |
||
|
49148
|
49148
49148-6C900 Pin-Camring, Power Steering Pump0010--01 ~ 0306--01; SR20VET |
49148-6C900 |
US $2.74 |
||
|
49149
|
49149
49149-4M400 Bolt0010--01 ~ 0101--01; SR20VET |
49149-4M400 |
US $4.32 |
||
|
49149
|
49149
49149-4M409 Bolt-Bracket, Power Steering Pump0101--01 ~ 0306--01; SR20VET |
49149-4M409 |
US $3.60 |
||
|
49149
|
49149
49149-4M40A Bolt-Bracket, Power Steering Pump0702--01 ~ ; SR20VET |
49149-4M40A |
US $5.76 |
||
|
49149
|
49149
49164-6C900 Bolt-Power Steering Pump0010--01 ~ 0306--01; SR20VET |
49164-6C900 |
US $2.45 |
||
|
49149
|
49149
49164-6C90A Bolt-Power Steering Pump0702--01 ~ ; SR20VET |
49164-6C90A |
US $4.18 |
||
|
49149M
|
49149M
49164-6C900 Bolt-Power Steering Pump0010--01 ~ 0306--01; SR20VET |
49164-6C900 |
US $2.45 |
||
|
49149M
|
49149M
49164-6C90A Bolt-Power Steering Pump0702--01 ~ ; SR20VET |
49164-6C90A |
US $4.18 |
||
|
49160M
|
49160M
49165-6C900 Valve Assy-Flow Control0010--01 ~ 0306--01; SR20VET |
49165-6C900 |
US $57.60 |
||
|
49160M
|
49160M
49168-4U000 Valve Assy-Flow Control0010--01 ~ 0306--01; SR20VET |
49168-4U000 |
US $63.36 |
||
|
49160MA
|
49160MA
49168-4U000 Valve Assy-Flow Control0010--01 ~ 0306--01; SR20VET |
49168-4U000 |
US $63.36 |
||
|
49161P
|
49161P
49161-4N000 Connector-Inlet0010--01 ~ 0101--01; SR20VET |
49161-4N000 |
US $32.40 |
||
|
49161P
|
49161P
49161-5U000 Connector-Inlet0101--01 ~ 0306--01; SR20VET |
49161-5U000 |
US $42.48 |
||
|
49161P
|
49161P
49161-5U00A Connector-Inlet0702--01 ~ ; SR20VET |
49161-5U00A |
US $42.48 |
||
|
49162M
|
49162M
49167-6C900 Spring-Flow Control Valve0010--01 ~ 0306--01; SR20VET |
49167-6C900 |
US $10.22 |
||
|
49162N
|
49162N
49162-6C900 Seal-Inlet Connector0010--01 ~ 0306--01; SR20VET |
49162-6C900 |
US $4.99 |
||
|
497
|
Power steering piping
497
|
||||
|
497
|
Power steering piping
497
|
||||
|
497
|
Power steering piping
497
|
||||
|
497
|
Power steering piping
497
|
||||
|
497
|
Power steering piping
497
|
||||
|
497
|
Power steering piping
497
|
||||
|
497
|
Power steering piping
497
|
||||
|
497
|
Power steering piping
497
|
||||
