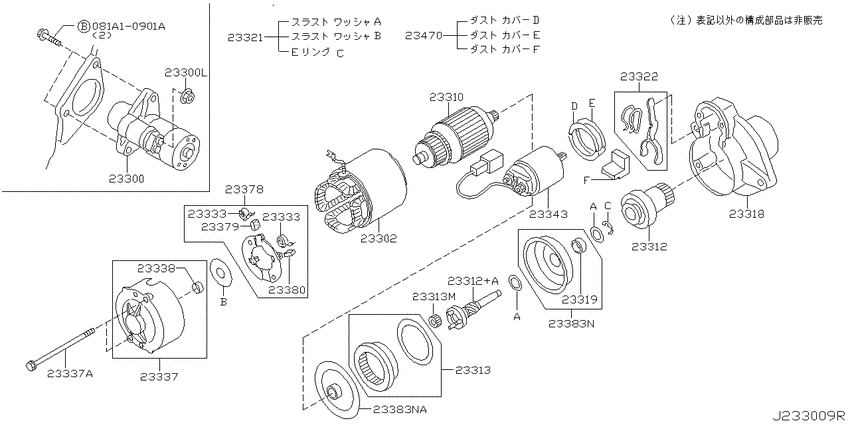

Starter motor (2000-10-01 ~ 2003-06-01; 日立; SR20VET) Diagram Nissan X-TRAIL
- Year
- 2000 - 2003
- Sales region
- Japan
- Engine
- SR20VET
- drive
- 4WD
- transmission
- AT
- grade
- GT
- body
- W
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
081A10901A
|
081A10901A
081A1-0901A BOLT |
081A1-0901A |
US $1.64 |
||
|
23300
|
23300
23300-8H600
Motor Assy-Starter
0010--01 ~ 0306--01; SR20VET; ﾋﾀﾁ |
23300-8H600 |
— | ||
|
23300
|
23300
0122100381 NUT0010--01 ~ 0306--01; SR20VET |
0122100381 |
US $7.91 |
||
|
23300L
|
23300L
0122100381 NUT0010--01 ~ 0306--01; SR20VET |
0122100381 |
US $7.91 |
||
|
23302
|
23302
23302-2J205 Yoke Assy0010--01 ~ 0306--01; SR20VET; ﾋﾀﾁ |
23302-2J205 |
US $297.36 |
||
|
23310
|
23310
2331031U00 Armature Assy0010--01 ~ 0306--01; SR20VET; ﾋﾀﾁ |
2331031U00 |
US $283.68 |
||
|
23312
|
23312
23312-53J01 Pinion Assy0010--01 ~ 0306--01; SR20VET; ﾋﾀﾁ |
23312-53J01 |
US $389.40 |
||
|
23312
|
23312
23313-80F00 Pinion Assy0010--01 ~ 0306--01; SR20VET; ﾋﾀﾁ |
23313-80F00 |
US $108.29 |
||
|
23312+A
|
23312+A
23313-80F00 Pinion Assy0010--01 ~ 0306--01; SR20VET; ﾋﾀﾁ |
23313-80F00 |
US $108.29 |
||
|
23313
|
23313
23361-0M300 Gear0010--01 ~ 0306--01; SR20VET; ﾋﾀﾁ |
23361-0M300 |
US $51.55 |
||
|
23313
|
23313
23367-31U01 Planet Gear0010--01 ~ 0306--01; SR20VET; ﾋﾀﾁ |
23367-31U01 |
US $16.13 |
||
|
23313M
|
23313M
23367-31U01 Planet Gear0010--01 ~ 0306--01; SR20VET; ﾋﾀﾁ |
23367-31U01 |
US $16.13 |
||
|
23318
|
23318
23318-8H600 Case Assy-Gear0010--01 ~ 0306--01; SR20VET; ﾋﾀﾁ |
23318-8H600 |
US $161.28 |
||
|
23319
|
23319
23319-97E00 METAL-GEAR CASE0010--01 ~ 0306--01; SR20VET; ﾋﾀﾁ |
23319-97E00 |
US $11.66 |
||
|
23321
|
23321
23369-1P100 Washer Set-Thrust0010--01 ~ 0306--01; SR20VET; ﾋﾀﾁ |
23369-1P100 |
US $6.34 |
||
|
23322
|
23322
233220M300 Lever Set-Shift0010--01 ~ 0306--01; SR20VET; ﾋﾀﾁ |
233220M300 |
from US $19.30 |
||
|
23333
|
23333
23333-50Y02 Spring-Brush0010--01 ~ 0306--01; SR20VET; ﾋﾀﾁ |
23333-50Y02 |
US $6.24 |
||
|
23333
|
23333
23333-50Y02 Spring-Brush0010--01 ~ 0306--01; SR20VET; ﾋﾀﾁ |
23333-50Y02 |
US $6.24 |
||
|
23337
|
23337
23337-AA300 Cover Assy-Rear0010--01 ~ 0306--01; SR20VET; ﾋﾀﾁ |
23337-AA300 |
US $43.06 |
||
|
23337
|
23337
23340-M4900 Bolt-Through0010--01 ~ 0306--01; SR20VET; ﾋﾀﾁ |
23340-M4900 |
US $4.18 |
||
|
23337A
|
23337A
23340-M4900 Bolt-Through0010--01 ~ 0306--01; SR20VET; ﾋﾀﾁ |
23340-M4900 |
US $4.18 |
||
|
23338
|
23338
2333897E00 BEARING-REAR COVER0010--01 ~ 0306--01; SR20VET; ﾋﾀﾁ |
2333897E00 |
US $10.37 |
||
|
23343
|
23343
23343-77A01 Switch Assy-Magnetic0010--01 ~ 0306--01; SR20VET; ﾋﾀﾁ |
23343-77A01 |
US $168.48 |
||
|
23378
|
23378
23378-0M300 Holder Assy-Brush0010--01 ~ 0306--01; SR20VET; ﾋﾀﾁ |
23378-0M300 |
US $54.43 |
||
|
23379
|
23379
23379-0M300 Brush-Minus0010--01 ~ 0306--01; SR20VET; ﾋﾀﾁ |
23379-0M300 |
US $10.08 |
||
|
23380
|
23380
23380-0M300 Brush-Plus0010--01 ~ 0306--01; SR20VET; ﾋﾀﾁ |
23380-0M300 |
US $15.98 |
||
|
23383N
|
23383N
23383-2J201 Bracket Assy-Center0010--01 ~ 0306--01; SR20VET; ﾋﾀﾁ |
23383-2J201 |
US $26.78 |
||
|
23383N
|
23383N
23383-0M301 Bracket Assy-Center0010--01 ~ 0306--01; SR20VET; ﾋﾀﾁ |
23383-0M301 |
US $26.78 |
||
|
23383NA
|
23383NA
23383-0M301 Bracket Assy-Center0010--01 ~ 0306--01; SR20VET; ﾋﾀﾁ |
23383-0M301 |
US $26.78 |
||
|
23470
|
23470
23470-0M300 Cover-Dust0010--01 ~ 0306--01; SR20VET; ﾋﾀﾁ |
23470-0M300 |
US $10.08 |
