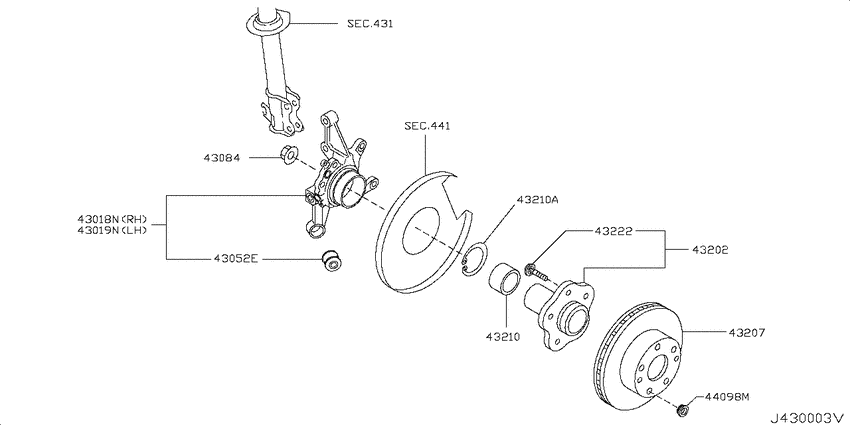

Rear axle (2000-10-01 ~ ; 2WD.QR20DE) Diagram Nissan X-TRAIL
- Year
- 2000 - 2012
- Sales region
- Japan
- Engine
- QR20DE
- drive
- 2WD
- transmission
- AT
- grade
- S
- body
- W
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
43018N
|
43018N
430188H300 Housing Assy-Rear Axle, Rh0010--01 ~ ; 2WD.QR20DE |
430188H300 |
US $491.35 |
||
|
43019N
|
43019N
43019-8H300 Housing Assy-Rear Axle, Lh0010--01 ~ ; 2WD.QR20DE |
43019-8H300 |
US $491.35 |
||
|
43052E
|
43052E
55152-51E00 BUSH-PARALLEL LINK,FRONT0010--01 ~ 0203--01; 2WD.QR20DE |
55152-51E00 |
from US $7.76 |
||
|
43084
|
43084
0122500591 NUT-LOCK,FRONT WHEEL BEARING0010--01 ~ ; 2WD.QR20DE |
0122500591 |
from US $3.20 |
||
|
431
|
Rear suspension
431
|
||||
|
431
|
Rear suspension
431
|
||||
|
431
|
Rear suspension
431
|
||||
|
431
|
Rear suspension
431
|
||||
|
43202
|
43202
43202-8H300 Hub Assy-Rear0010--01 ~ ; 2WD.QR20DE |
43202-8H300 |
US $382.32 |
||
|
43207
|
43207
43206-8H304 Rotor-Disc Brake, Rear0010--01 ~ 0109--01; 2WD.QR20DE |
43206-8H304 |
US $165.60 |
||
|
43207
|
43207
43206-8H701 Rotor-Disc Brake, Rear0109--01 ~ ; 2WD.QR20DE |
43206-8H701 |
US $138.10 |
||
| replacement | |||||
|
43207
|
43207
432068H305 Rotor-Disc Brake, Rear0109--01 ~ ; 2WD.QR20DE |
432068H305 |
from US $127.21 |
||
|
43210
|
43210
432108H300 Bearing-Rear Axle, Inner0010--01 ~ ; 2WD.QR20DE |
432108H300 |
from US $56.78 |
||
|
43210
|
43210
40214-AG000 Ring-Snap0306--01 ~ ; 2WD.QR20DE |
40214-AG000 |
US $4.18 |
||
|
43210
|
43210
40214AG100 Ring-Snap0010--01 ~ 0306--01; 2WD.QR20DE |
40214AG100 |
from US $3.95 |
||
|
43210A
|
43210A
40214-AG000 Ring-Snap0306--01 ~ ; 2WD.QR20DE |
40214-AG000 |
US $4.18 |
||
|
43210A
|
43210A
40214AG100 Ring-Snap0010--01 ~ 0306--01; 2WD.QR20DE |
40214AG100 |
from US $3.95 |
||
|
43222
|
43222
4322241B00 Bolt-Hub0010--01 ~ ; 2WD.QR20DE |
4322241B00 |
from US $1.37 |
||
|
44098M
|
44098M
410988J000 Plug-Inspection Hole0010--01 ~ ; 2WD.QR20DE |
410988J000 |
from US $1.67 |
||
|
441
|
Rear brake
441
|
||||
|
441
|
Rear brake
441
|
||||
