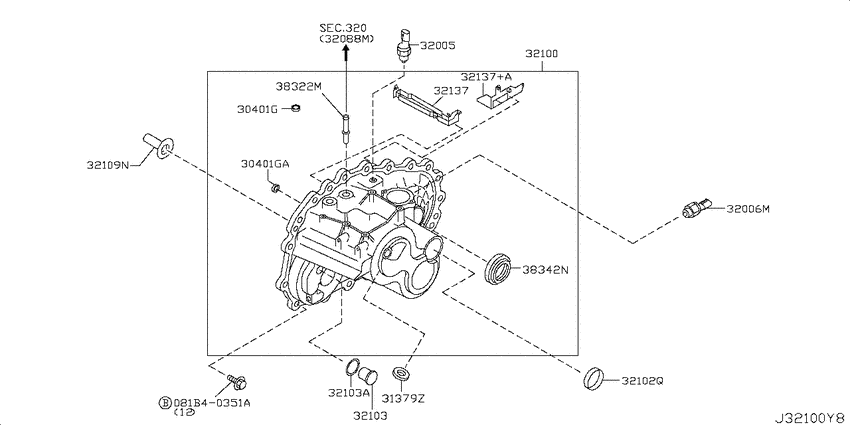

Transmission case & clutch release (2007-08-01 ~ ; クラッチ ハウジング; 6MT) Diagram Nissan X-TRAIL
- Year
- 2007 - 2012
- Sales region
- Japan
- Engine
- MR20DE
- drive
- 4WD
- transmission
- 6MT
- grade
- X
- body
- W
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
081B40351A
|
081B40351A
081B4-0351A
Bolt-hexagon
|
081B4-0351A |
— | ||
|
30401G
|
30401G
32858-JA60A Seal-Oil, Striking Rod0708--01 ~ ; 6MT |
32858-JA60A |
US $5.90 |
||
|
30401G
|
30401G
32858-JA61A Seal-Oil, Striking Rod0708--01 ~ ; 6MT |
32858-JA61A |
US $5.90 |
||
|
30401GA
|
30401GA
32858-JA61A Seal-Oil, Striking Rod0708--01 ~ ; 6MT |
32858-JA61A |
US $5.90 |
||
|
31379Z
|
31379Z
31379-01X01 Magnet0708--01 ~ ; 6MT |
31379-01X01 |
US $7.20 |
||
|
320
|
Manual transmission, transaxle & fitting
320
|
||||
|
32005
|
32005
320056J00A Switch Assy-Reverse Lamp0708--01 ~ ; 6MT |
320056J00A |
from US $21.33 |
||
|
32006M
|
32006M
32006-6J00A Switch Assy-Neutral Position0708--01 ~ ; 6MT |
32006-6J00A |
from US $15.89 |
||
|
32100
|
32100
32100-JG20A Case Assy-Transmission0708--01 ~ ; 6MT |
32100-JG20A |
US $591.89 |
||
|
32102Q
|
32102Q
32102-8H500 Plug-Bore0708--01 ~ ; 6MT |
32102-8H500 |
US $9.30 |
||
|
32103
|
32103
32103-4N21A
Plug-Drain
0708--01 ~ ; 6MT |
32103-4N21A |
— | ||
| replacement | |||||
|
32103
|
32103
32103-1MG0B
Plug-Filler
0708--01 ~ ; 6MT |
32103-1MG0B |
— | ||
|
32103
|
32103
110264N200 Gasket-Plug0708--01 ~ ; 6MT |
110264N200 |
from US $2.72 |
||
|
32103
|
32103
32103-4N21A
Plug-Drain
0708--01 ~ ; 6MT |
32103-4N21A |
— | ||
| replacement | |||||
|
32103
|
32103
32103-1MG0B
Plug-Filler
0708--01 ~ ; 6MT |
32103-1MG0B |
— | ||
|
32103A
|
32103A
110264N200 Gasket-Plug0708--01 ~ ; 6MT |
110264N200 |
from US $2.72 |
||
|
32109N
|
32109N
32109-8H510 Channel-Oil0708--01 ~ ; 6MT |
32109-8H510 |
US $2.45 |
||
|
32137
|
32137
32107-JA60A
Gutter-Oil, Adapter
0708--01 ~ ; 6MT |
32107-JA60A |
— | ||
| replacement | |||||
|
32137
|
32137
32107-BB60A Gutter-Oil, Adapter0708--01 ~ ; 6MT |
32107-BB60A |
US $4.03 |
||
|
32137
|
32137
32107-JA61B Gutter-Oil, Adapter0708--01 ~ ; 6MT |
32107-JA61B |
US $4.03 |
||
|
32137+A
|
32137+A
32107-JA61B Gutter-Oil, Adapter0708--01 ~ ; 6MT |
32107-JA61B |
US $4.03 |
||
|
38322M
|
38322M
38322-6M00A Breather0708--01 ~ ; 6MT |
38322-6M00A |
US $8.06 |
||
|
38342N
|
38342N
383428H500 Seal-Oil, Differential Transmission Case0708--01 ~ ; 6MT |
383428H500 |
from US $6.69 |
||
