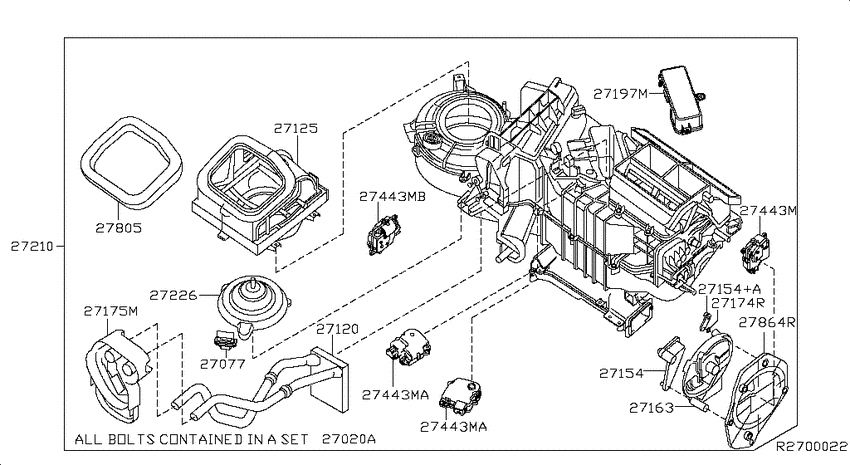

Heater & blower unit (2005-09-01 ~ 2007-08-01; HEATER-FR; W) Diagram Nissan XTERRA
- Year
- 2005 - 2007
- Sales region
- U.S.A.
- Engine
- VQ40DE
- drive
- 2WD
- transmission
- 6MT
- grade
- OFFROAD
- body
- W
- emission
- FED
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
27020A
|
27020A
92796-5Z000
Bolt
2005-09-01 ~ 2007-08-01; W; , |
92796-5Z000 |
— | ||
|
27077
|
27077
27150-5Z000 Resistance-Electric2005-09-01 ~ 2007-08-01; W; , |
27150-5Z000 |
US $72.28 |
||
|
27120
|
27120
27120-EA000 Core Assy-Front Heater2005-09-01 ~ 2007-08-01; W; , |
27120-EA000 |
US $366.45 |
||
|
27125
|
27125
27131-EA000 Duct-Foot2005-09-01 ~ 2007-08-01; W; , |
27131-EA000 |
US $70.82 |
||
|
27154
|
27154
27154-EA000
Link
2005-09-01 ~ 2007-08-01; W; , |
27154-EA000 |
— | ||
|
27154
|
27154
27154-EA010
Link
2005-09-01 ~ 2007-08-01; W; , |
27154-EA010 |
— | ||
|
27154+A
|
27154+A
27154-EA010
Link
2005-09-01 ~ 2007-08-01; W; , |
27154-EA010 |
— | ||
|
27163
|
27163
27163-EA000
Cam
2005-09-01 ~ 2007-08-01; W; , |
27163-EA000 |
— | ||
|
27174R
|
27174R
92477-5Z000 Seal-O Ring2007-04-01 ~ 2007-08-01; W; , |
92477-5Z000 |
US $15.76 |
||
|
27175M
|
27175M
27175-EA000
Bracket-Front Heater
2005-09-01 ~ 2007-08-01; W; , |
27175-EA000 |
— | ||
|
27197M
|
27197M
27197-EA000
Cover-Heater Core
2005-09-01 ~ 2007-08-01; W; , |
27197-EA000 |
— | ||
|
27210
|
27210
27210-EA014
Blower Assy-Air Conditioner
2005-09-01 ~ 2007-08-01; W; , |
27210-EA014 |
— | ||
|
27226
|
27226
27226-EA010 Motor Assy-Blower2005-09-01 ~ 2007-08-01; W; , |
27226-EA010 |
US $224.22 |
||
|
27443M
|
27443M
27443-EA010
Actuator Assy
2005-09-01 ~ 2007-04-01; W; INTAKE |
27443-EA010 |
— | ||
|
27443M
|
27443M
27443-ZP01A Actuator Assy2007-04-01 ~ 2007-08-01; W; INTAKE |
27443-ZP01A |
US $51.21 |
||
|
27443M
|
27443M
27443-5Z010
Actuator Assy
2005-09-01 ~ 2007-08-01; W; TEMP |
27443-5Z010 |
— | ||
|
27443M
|
27443M
27443-EA000
Actuator Assy
2005-09-01 ~ 2007-04-01; W; MODE |
27443-EA000 |
— | ||
|
27443M
|
27443M
27443-ZP00A Actuator Assy2007-04-01 ~ 2007-08-01; W; MODE |
27443-ZP00A |
US $46.45 |
||
|
27443MA
|
27443MA
27443-5Z010
Actuator Assy
2005-09-01 ~ 2007-08-01; W; TEMP |
27443-5Z010 |
— | ||
|
27443MA
|
27443MA
27443-5Z010
Actuator Assy
2005-09-01 ~ 2007-08-01; W; TEMP |
27443-5Z010 |
— | ||
|
27443MB
|
27443MB
27443-EA000
Actuator Assy
2005-09-01 ~ 2007-04-01; W; MODE |
27443-EA000 |
— | ||
|
27443MB
|
27443MB
27443-ZP00A Actuator Assy2007-04-01 ~ 2007-08-01; W; MODE |
27443-ZP00A |
US $46.45 |
||
|
27805
|
27805
27805-EA000
Seal-Blower Unit
2005-09-01 ~ 2007-08-01; W; , |
27805-EA000 |
— | ||
|
27864R
|
27864R
27175-EA010
Bracket
2005-09-01 ~ 2007-08-01; W; , |
27175-EA010 |
— |
