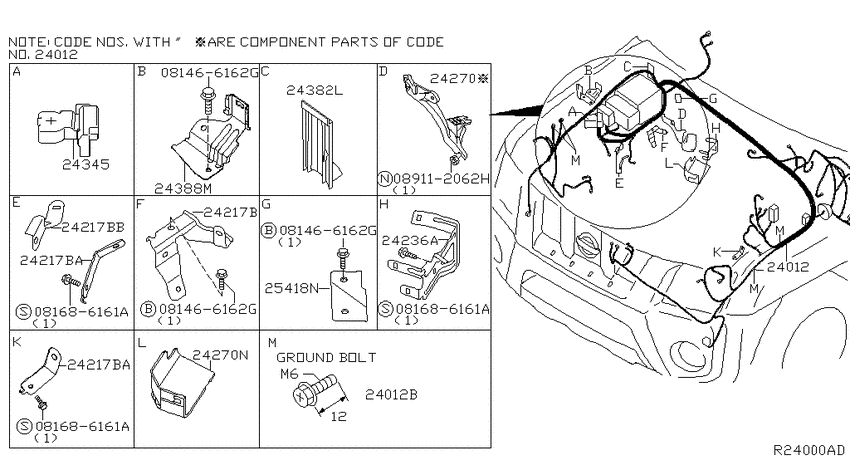

Wiring (2005-01-01 ~ 2005-03-01; ENGINE ROOM 1 & FITTING 1; W) Diagram Nissan XTERRA
- Year
- 2005 - 2008
- Sales region
- U.S.A.
- Engine
- VQ40DE
- drive
- 4WD
- transmission
- 5AT
- grade
- S
- body
- W
- emission
- FED
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
081686161A
|
081686161A
081686161A
Bolt
|
081686161A |
— | ||
|
081686161A
|
081686161A
081686161A
Bolt
|
081686161A |
— | ||
|
081686161A
|
081686161A
081686161A
Bolt
|
081686161A |
— | ||
|
089112062H
|
089112062H
089112062H NUT |
089112062H |
US $2.08 |
||
|
24012
|
24012
24012-EA004
Harness-Engine Room
2005-01-01 ~ 2005-09-01; *W.4WD.S.5AT; , |
24012-EA004 |
— | ||
|
24012
|
24012
24012-EA005
Harness-Engine Room
2005-01-01 ~ 2005-09-01; *W.4WD.S.5AT; , |
24012-EA005 |
— | ||
|
24012
|
24012
24012-EA012
Harness-Engine Room
2005-01-01 ~ 2005-09-01; W.4WD.S.5AT; , |
24012-EA012 |
— | ||
|
24012
|
24012
24012-EA013
Harness-Engine Room
2005-01-01 ~ 2005-09-01; *W.4WD.S.5AT; , |
24012-EA013 |
— | ||
|
24012
|
24012
24012-ZP32C
Harness-Engine Room
2005-09-01 ~ 2007-08-01; *W.4WD.S.5AT; 2006 MODEL YEAR |
24012-ZP32C |
— | ||
|
24012
|
24012
24012-ZP70E
Harness-Engine Room
2006-09-01 ~ 2007-08-01; "*W.4WD.(S+BASECAMP).5AT +*W.4WD.SE; , |
24012-ZP70E |
— | ||
|
24012
|
24012
24012-ZS60E
Harness-Engine Room
2007-08-01 ~ 2008-07-01; W.4WD.(S+BASECAMP).5AT +W.4WD.SE; , |
24012-ZS60E |
— | ||
|
24012
|
24012
0145600411 SCREW2005-01-01 ~ 2005-09-01; W; 12MM LG GROUND BOLT |
0145600411 |
US $1.67 |
||
|
24012
|
24012
01466-00171 SCREW2005-03-01 ~ 2005-09-01; W; , |
01466-00171 |
US $2.21 |
||
|
24012B
|
24012B
0145600411 SCREW2005-01-01 ~ 2005-09-01; W; 12MM LG GROUND BOLT |
0145600411 |
US $1.67 |
||
|
24217B
|
24217B
24239-EA001
Bracket-Harness Clip
2005-01-01 ~ 2005-09-01; W; , |
24239-EA001 |
— | ||
|
24217B
|
24217B
24239-EA016
Bracket-Harness Clip
2005-01-01 ~ 2005-09-01; W; , |
24239-EA016 |
— | ||
|
24217B
|
24217B
24239-EA200
Bracket-Harness Clip
2005-09-01 ~ 2007-08-01; W; , |
24239-EA200 |
— | ||
|
24217BA
|
24217BA
24239-EA016
Bracket-Harness Clip
2005-01-01 ~ 2005-09-01; W; , |
24239-EA016 |
— | ||
|
24217BA
|
24217BA
24239-EA016
Bracket-Harness Clip
2005-01-01 ~ 2005-09-01; W; , |
24239-EA016 |
— | ||
|
24217BB
|
24217BB
24239-EA200
Bracket-Harness Clip
2005-09-01 ~ 2007-08-01; W; , |
24239-EA200 |
— | ||
|
24236A
|
24236A
24236-EA000
Bracket-Harness Connector
2005-01-01 ~ 2005-09-01; W; , |
24236-EA000 |
— | ||
|
24270
|
24270
24270-EA010
Protector-Harness
2005-01-01 ~ 2005-09-01; W; , |
24270-EA010 |
— | ||
|
24270
|
24270
24282-7S200
Protector-Harness
2005-01-01 ~ 2005-09-01; W; , |
24282-7S200 |
— | ||
|
24270N
|
24270N
24282-7S200
Protector-Harness
2005-01-01 ~ 2005-09-01; W; , |
24282-7S200 |
— | ||
|
24345
|
24345
24345-89915 Cover-Connector2005-01-01 ~ 2005-09-01; W; , |
24345-89915 |
from US $14.68 |
||
|
24345
|
24345
24345-AA105
Cover-Connector
2005-01-01 ~ 2005-09-01; W; , |
24345-AA105 |
— | ||
|
24382L
|
24382L
24382-7S310
Cover-Fusible Link Holder
2005-01-01 ~ 2005-09-01; W; , |
24382-7S310 |
— | ||
|
24388M
|
24388M
25238-EA000
Bracket-Relay
2005-01-01 ~ 2005-09-01; W; , |
25238-EA000 |
— | ||
|
24388M
|
24388M
25238-ZP30A
Bracket-Relay
2007-08-01 ~ 2008-07-01; W; , |
25238-ZP30A |
— | ||
|
24388M
|
24388M
25237-AM600 Frame-Relay Box2007-08-01 ~ 2008-07-01; W; , |
25237-AM600 |
US $10.08 |
||
|
25418N
|
25418N
24235-EA000
Bracket-Fusible Link Holder
2005-01-01 ~ 2005-09-01; W; , |
24235-EA000 |
— |
