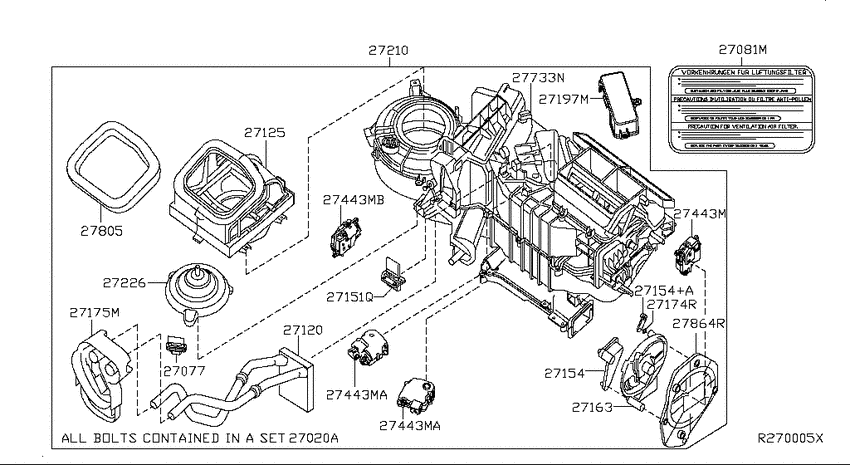

Heater & blower unit (2008-07-01 ~ 2009-08-01; HEATER-FR; W) Diagram Nissan XTERRA
- Year
- 2008 - 2009
- Sales region
- U.S.A.
- Engine
- VQ40DE
- drive
- 4WD
- transmission
- 6MT
- grade
- S
- body
- W
- emission
- FED
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
27020A
|
27020A
92796-5Z000
Bolt
2008-07-01 ~ 2009-08-01; W.(S+SE+OFFROAD); , |
92796-5Z000 |
— | ||
|
27081M
|
27081M
27081-1N601 Label2008-07-01 ~ 2009-08-01; W; , |
27081-1N601 |
US $4.18 |
||
|
27081M
|
27081M
27081-EQ500 Label-Clean Filter2008-07-01 ~ 2009-08-01; *W; , |
27081-EQ500 |
US $3.46 |
||
|
27120
|
27120
27120-EA000 Core Assy-Front Heater2008-07-01 ~ 2009-08-01; W.(S+SE+OFFROAD); , |
27120-EA000 |
US $389.24 |
||
|
27125
|
27125
27131-EA000 Duct-Foot2008-07-01 ~ 2009-08-01; W.(S+SE+OFFROAD); , |
27131-EA000 |
US $70.82 |
||
|
27125
|
27125
27840-EA001
Duct-Foot
2008-07-01 ~ 2009-08-01; W; , |
27840-EA001 |
— | ||
|
27125
|
27125
27840-ZS00A
Duct-Foot
2008-07-01 ~ 2009-08-01; W; , |
27840-ZS00A |
— | ||
|
27151Q
|
27151Q
27151-ZT00A Vbc2008-07-01 ~ 2009-08-01; W.(S+SE+OFFROAD); , |
27151-ZT00A |
US $479.24 |
||
|
27154
|
27154
27154-EA000
Link
2008-07-01 ~ 2009-08-01; W.(S+SE+OFFROAD); , |
27154-EA000 |
— | ||
|
27154
|
27154
27154-EA010
Link
2008-07-01 ~ 2009-08-01; W.(S+SE+OFFROAD); , |
27154-EA010 |
— | ||
|
27154+A
|
27154+A
27154-EA010
Link
2008-07-01 ~ 2009-08-01; W.(S+SE+OFFROAD); , |
27154-EA010 |
— | ||
|
27163
|
27163
27163-EA000
Cam
2008-07-01 ~ 2009-08-01; W.(S+SE+OFFROAD); , |
27163-EA000 |
— | ||
|
27174R
|
27174R
92477-5Z000 Seal-O Ring2008-07-01 ~ 2009-08-01; W.(S+SE+OFFROAD); , |
92477-5Z000 |
US $15.41 |
||
|
27175M
|
27175M
27175-EA000
Bracket-Front Heater
2008-07-01 ~ 2009-08-01; W.(S+SE+OFFROAD); , |
27175-EA000 |
— | ||
|
27197M
|
27197M
27197-EA000
Cover-Heater Core
2008-07-01 ~ 2009-08-01; W.(S+SE+OFFROAD); , |
27197-EA000 |
— | ||
|
27210
|
27210
27210-ZL00A
Blower Assy-Air Conditioner
2008-07-01 ~ 2009-08-01; W.(S+SE+OFFROAD); , |
27210-ZL00A |
— | ||
|
27226
|
27226
27226-EA010 Motor Assy-Blower2008-07-01 ~ 2009-08-01; W.(S+SE+OFFROAD); , |
27226-EA010 |
US $235.78 |
||
|
27443M
|
27443M
27443-ZP01A Actuator Assy2008-07-01 ~ 2009-08-01; W.(S+SE+OFFROAD); INTAKE |
27443-ZP01A |
US $52.76 |
||
|
27443M
|
27443M
27743-ZH10A Actuator Assy2008-07-01 ~ 2009-08-01; W.(S+SE+OFFROAD); TEMP |
27743-ZH10A |
US $71.87 |
||
|
27443M
|
27443M
27443-ZP00A Actuator Assy2008-07-01 ~ 2009-08-01; W.(S+SE+OFFROAD); MODE |
27443-ZP00A |
US $45.44 |
||
|
27443MA
|
27443MA
27743-ZH10A Actuator Assy2008-07-01 ~ 2009-08-01; W.(S+SE+OFFROAD); TEMP |
27743-ZH10A |
US $71.87 |
||
|
27443MA
|
27443MA
27743-ZH10A Actuator Assy2008-07-01 ~ 2009-08-01; W.(S+SE+OFFROAD); TEMP |
27743-ZH10A |
US $71.87 |
||
|
27443MB
|
27443MB
27443-ZP00A Actuator Assy2008-07-01 ~ 2009-08-01; W.(S+SE+OFFROAD); MODE |
27443-ZP00A |
US $45.44 |
||
|
27733N
|
27733N
27700-5Z000
Sensor Assy-Thermister
2008-07-01 ~ 2009-08-01; W.(S+SE+OFFROAD); , |
27700-5Z000 |
— | ||
|
27805
|
27805
27805-EA000
Seal-Blower Unit
2008-07-01 ~ 2009-08-01; W.(S+SE+OFFROAD); , |
27805-EA000 |
— | ||
|
27864R
|
27864R
27175-EA010
Bracket
2008-07-01 ~ 2009-08-01; W.(S+SE+OFFROAD); , |
27175-EA010 |
— |
