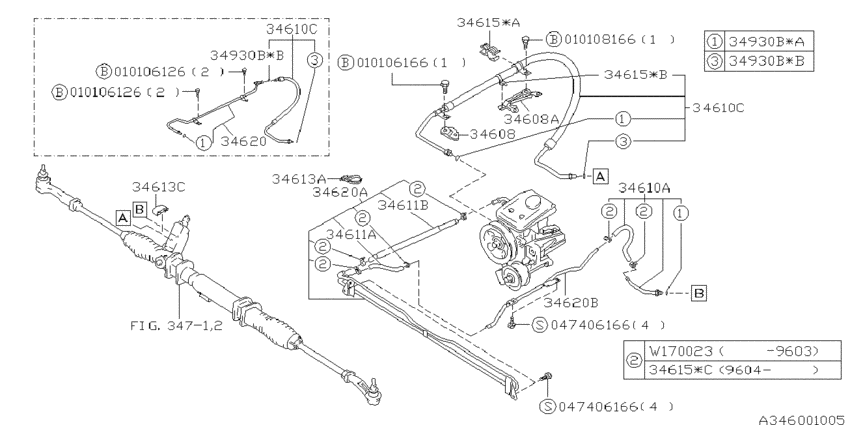

Power steering system (ﾎ-ｽ; 2C; 1991-03-01~) Diagram Subaru ALCYONE SVX
- Year
- 1991 - 1994
- Sales region
- Japan
- Engine
- EG33D
- drive
- F4WD
- transmission
- AT
- grade
- L
- body
- 2C
- Suspension
- N/S
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
34608
|
34608
34614PA000 BRKT PRES PIPE1992-06-01 ~ 1994-10-01; 2C |
34614PA000 |
US $7.93 |
||
|
34608A
|
34608A
34614PA010 BRKT PRES HOSE1992-06-01 ~ 1994-10-01; 2C |
34614PA010 |
US $15.01 |
||
|
34610A
|
34610A
34610PA060 ﾎｰｽ ｱｾﾝﾌﾞﾘ,ﾘﾀｰﾝ A1991-03-01 ~ 1994-10-01; 2C |
34610PA060 |
US $49.42 |
||
|
34610C
|
34610C
34610PA021 ﾎｰｽ ｱｾﾝﾌﾞﾘ,ﾌﾟﾚﾂｼﾔ1991-03-01 ~ 1992-05-01; 2C |
34610PA021 |
US $141.32 |
||
|
34610C
|
34610C
34610PA100 ﾎｰｽ ｱｾﾝﾌﾞﾘ,ﾌﾟﾚﾂｼﾔ1992-06-01 ~ 1994-10-01; 2C |
34610PA100 |
US $145.85 |
||
|
34611A
|
34611A
34611PA100 ﾎｰｽ A,ﾊﾟﾜｰ ｽﾃｱﾘﾝｸﾞ1991-03-01 ~ 1994-10-01; 2C |
34611PA100 |
US $8.78 |
||
|
34611B
|
34611B
34611PA110 ﾎｰｽ B,ﾊﾟﾜｰ ｽﾃｱﾘﾝｸﾞ1991-03-01 ~ 1994-10-01; 2C |
34611PA110 |
US $25.91 |
||
|
34613A
|
34613A
34613PA040 ｸﾗﾝﾌﾟ A,ﾊﾟﾜｰ ｽﾃｱﾘﾝｸﾞ ﾎｰｽ1991-03-01 ~ 1994-10-01; 2C |
34613PA040 |
US $3.54 |
||
|
34613C
|
34613C
34613PA050 ｸﾗﾝﾌﾟ C,ﾊﾟﾜｰ ｽﾃｱﾘﾝｸﾞ ﾊﾟｲﾌﾟ1991-03-01 ~ 1994-10-01; 2C |
34613PA050 |
US $3.26 |
||
|
34615
|
34615
34615PA010 CLIP1992-06-01 ~ 1994-10-01; 2C; NO.1 |
34615PA010 |
US $2.27 |
||
|
34615
|
34615
34615PA020 CABLE CLIP1992-06-01 ~ 1994-10-01; 2C; NO.2 |
34615PA020 |
US $1.98 |
||
|
34620
|
34620
34620PA030 ﾊﾟｲﾌﾟ ｱｾﾝﾌﾞﾘ,ﾌﾟﾚﾂｼﾔ1991-03-01 ~ 1992-05-01; 2C |
34620PA030 |
US $76.18 |
||
|
34620A
|
34620A
34620PA000
PIPE ASSY COOLER
1991-03-01 ~ 1994-10-01; 2C |
34620PA000 |
— | ||
|
34620B
|
34620B
34620PA010 PIPE ASSY RETUR1991-03-01 ~ 1994-10-01; 2C |
34620PA010 |
US $67.26 |
||
|
34930B
|
34930B
31260GA040
Seal O-ring
1991-03-01 ~ 1992-05-01; 2C; NO.2 |
31260GA040 |
— | ||
| replacement | |||||
|
34930B
|
34930B
34616VA000 O RING1991-03-01 ~ 1992-05-01; 2C; NO.2 |
34616VA000 |
US $2.12 |
||
|
34930B
|
34930B
31260GA050
Seal O-ring
1991-03-01 ~ 1994-10-01; 2C; NO.1 |
31260GA050 |
— | ||
| replacement | |||||
|
34930B
|
34930B
34616VA010 O RING1991-03-01 ~ 1994-10-01; 2C; NO.1 |
34616VA010 |
from US $0.85 |
||
|
W170023
|
W170023
909170023 CLAMP1991-03-01 ~ 1994-10-01; 2C |
909170023 |
from US $0.67 |
||
|
010106126
|
010106126
010106126 FLANGE BOLT |
010106126 |
US $0.42 |
||
|
010106166
|
010106166
010106166
FLANGE BOLT
|
010106166 |
— | ||
| replacement | |||||
|
010106166
|
010106166
010106160 FLANGE BOLT-PILOT |
010106160 |
US $0.28 |
||
|
010108166
|
010108166
010108166
FLANGE BOLT
|
010108166 |
— | ||
| replacement | |||||
|
010108166
|
010108166
901000270 BOLT FLG M8X16 |
901000270 |
US $0.42 |
||
|
047406166
|
047406166
047406166
FT TAPPINGS SCR
|
047406166 |
— | ||
| replacement | |||||
|
047406166
|
047406166
904740012 SCREW TAP FT M6 |
904740012 |
US $0.42 |
||
