Component List ALCYONE SVX
Power steering system (ﾎﾟﾝﾌﾟ&ﾀﾝｸ; 2C; 1991-03-01~)

Difficulties in parts search?

Parts list

Difficulties in parts search?

	Description	OEM Part #	Price
34170	34170 34160PA000 ﾕﾆﾊﾞｰｻﾙｼﾞﾖｲﾝﾄｱｾﾝﾌﾞﾘ,ｽﾃｱﾘﾝｸﾞ 1991-03-01 ~ 1994-10-01; 2C	34160PA000	US $205.32
34420	34420 34412PA000 TANK ASSY 1991-03-01 ~ 1994-05-01; 2C	34412PA000	US $393.65
34420	34420 34412PA001 TANK ASSY 1994-06-01 ~ 1994-10-01; 2C	34412PA001	US $358.25
34421	34421 34438AC050 CAP ASSY 1994-06-01 ~ 1994-10-01; 2C	34438AC050	—
	replacement
34421	34421 34438AC040 CAP ASSY 1994-06-01 ~ 1994-10-01; 2C	34438AC040	from US $20.89
34421	34421 34438PA000 CAP ASSY 1991-03-01 ~ 1994-05-01; 2C	34438PA000	US $24.64
34436	34436 34415PA000 SHAFTPULLEY 1991-03-01 ~ 1994-10-01; 2C	34415PA000	US $13.59
34484	34484 34435PA010 BOLT TANK 1991-03-01 ~ 1994-10-01; 2C	34435PA010	—
34484A	34484A 34435PA020 BOLT IDLER 1991-03-01 ~ 1994-10-01; 2C	34435PA020	—
34484B	34484B 34435PA000 BOLT PULLEY 1991-03-01 ~ 1994-10-01; 2C	34435PA000	US $6.23
34578	34578 34417PA000 STOPPER BEARING 1991-03-01 ~ 1994-10-01; 2C	34417PA000	US $5.52
34923C	34923C 34120PA000 CLAMP GBOX 1991-03-01 ~ 1994-10-01; 2C	34120PA000	US $7.79
34970	34970 34413PA000 ﾌﾟｰﾘｱｾﾝﾌﾞﾘ,ｱｲﾄﾞﾗ 1991-03-01 ~ 1994-10-01; 2C	34413PA000	US $73.92
34973B	34973B 34421PA000 BRACKET PUMP PS 1991-03-01 ~ 1994-10-01; 2C	34421PA000	US $128.29
34974	34974 34429PA000 FILLER STRAINER 1991-03-01 ~ 1994-10-01; 2C	34429PA000	US $8.50
M55006	M55006 901550060 BOLT 1991-03-01 ~ 1994-10-01; 2C	901550060	US $1.56
010108257	010108257 010108257 FLANGE BOLT	010108257	US $0.85
011508256	011508256 011508256 BOLTWASH ASSY	011508256	—
	replacement
011508256	011508256 800508330 BOLT WASH ASSY	800508330	—
011508456	011508456 011508456 BOLTWASHER ASS	011508456	US $1.27
012510256	012510256 012510256 BOLTWASHER AY	012510256	US $1.27
023212016	023212016 023212016 CASTLE NUT	023212016	US $1.70
023808006	023808006 023808006 Nut	023808006	—
	replacement
023808006	023808006 023808000 FLANGE NUT	023808000	US $0.42
032008000	032008000 032008000 SPRING WASHER	032008000	—
051030200	051030200 051030200 COTTER PIN	051030200	—
	replacement
051030200	051030200 051030300 COTTER PIN	051030300	US $0.14
062610110	062610110 062610110 RING	062610110	US $0.57

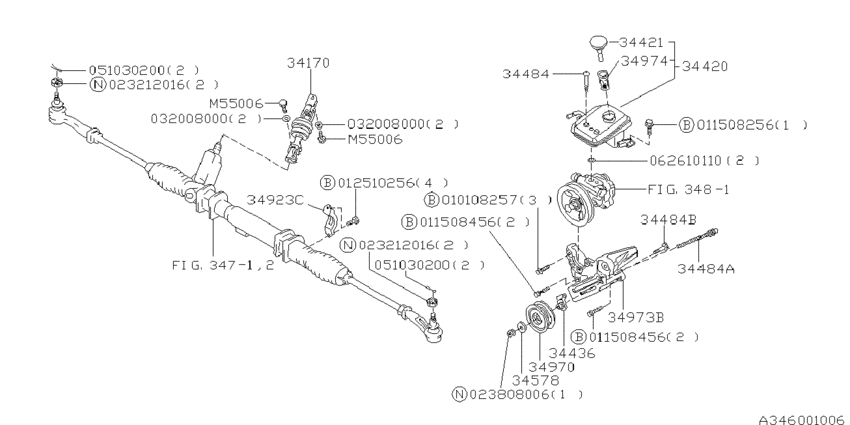

Power steering system (ﾎﾟﾝﾌﾟ&ﾀﾝｸ; 2C; 1991-03-01~) Diagram Subaru ALCYONE SVX Japan 7081446-552754

Power steering system (ﾎﾟﾝﾌﾟ&ﾀﾝｸ; 2C; 1991-03-01~) Diagram Subaru ALCYONE SVX Japan 7081446-552754
