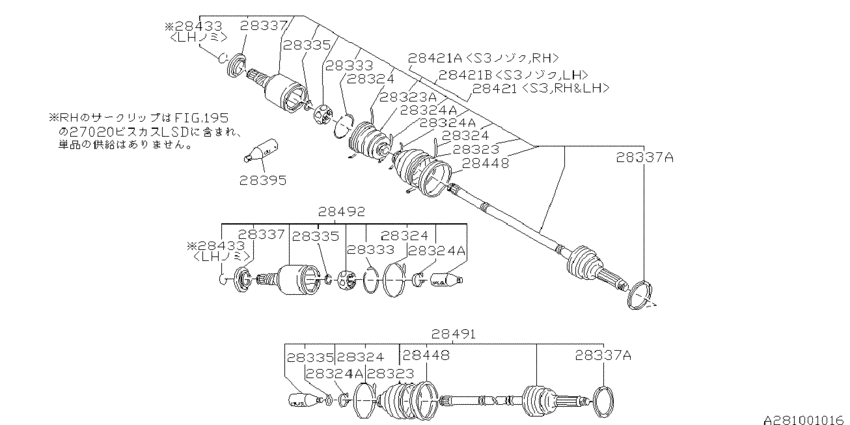

Rear axle (ﾄﾞﾗｲﾌﾞｼﾔﾌﾄ; 2C; 1991-03-01~) Diagram Subaru ALCYONE SVX
- Year
- 1991 - 1994
- Sales region
- Japan
- Engine
- EG33D
- drive
- F4WD
- transmission
- AT
- grade
- L
- body
- 2C
- Suspension
- N/S
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
28323
|
28323
28023PA040 BOOT BJ1991-03-01 ~ 1994-10-01; 2C |
28023PA040 |
from US $18.41 |
||
|
28323A
|
28323A
28023PA050 BOOT DOJ1991-03-01 ~ 1994-10-01; 2C |
28023PA050 |
from US $13.60 |
||
|
28324
|
28324
23242GA400 BANDAXLE SFT BOOT1991-03-01 ~ 1994-10-01; 2C; ﾀﾞｲｹｲ ﾖｳ |
23242GA400 |
from US $4.90 |
||
|
28324A
|
28324A
23242GA410 BANDAXLE SFT BOOT1991-03-01 ~ 1994-10-01; 2C; ｼﾖｳｹｲ ﾖｳ |
23242GA410 |
from US $3.52 |
||
|
28333
|
28333
623206070 CIR CLIPDOJ1991-03-01 ~ 1994-10-01; 2C |
623206070 |
US $5.95 |
||
|
28335
|
28335
28035AA010 SNAP RING F1991-03-01 ~ 1994-10-01; 2C; ﾊｳｼﾞﾝｸﾞ ﾖｳ |
28035AA010 |
from US $5.74 |
||
|
28335
|
28335
623205190 SNAP RINGDOJ1991-03-01 ~ 1994-10-01; 2C; ﾄﾞﾗｲﾌﾞｼﾔﾌﾄ ﾖｳ |
623205190 |
US $5.81 |
||
|
28337
|
28337
23233GA091 BAFFLE PLATE DOJ IN1991-03-01 ~ 1994-10-01; 2C |
23233GA091 |
from US $2.94 |
||
|
28337A
|
28337A
28037AA012 ﾊﾞﾂﾌﾙ ﾌﾟﾚｰﾄ,BJ1991-03-01 ~ 1994-10-01; 2C |
28037AA012 |
US $7.93 |
||
|
28395
|
28395
723223000
GREASE-DRIVE SHAFT
1991-03-01 ~ 1994-10-01; 2C; ﾓﾘﾚﾂｸｽ NO.2 120G |
723223000 |
— | ||
|
28395
|
28395
723223010
GREASE-DRIVE SHAFT
1991-03-01 ~ 1994-10-01; 2C; ﾓﾘﾚﾂｸｽ NO.2 300G |
723223010 |
— | ||
|
28395
|
28395
723223020
GREASE-DRIVE SHAFT
1991-03-01 ~ 1994-10-01; 2C; ﾓﾘﾚﾂｸｽ NO.2 150G |
723223020 |
— | ||
|
28421A
|
28421A
28021PA022 DR SFT AY 87AC VRH1991-03-01 ~ 1992-08-01; 2C |
28021PA022 |
US $999.70 |
||
|
28421A
|
28421A
28021PA023 R DR SFT AY 87AC VRH1992-09-01 ~ 1994-10-01; 2C |
28021PA023 |
US $999.70 |
||
|
28421B
|
28421B
28021PA032 R DR SFT AY 87AC VLH1991-03-01 ~ 1992-08-01; 2C |
28021PA032 |
US $977.04 |
||
|
28421B
|
28421B
28021PA033 R DR SFT AY 87AC VLH1992-09-01 ~ 1994-10-01; 2C |
28021PA033 |
US $977.04 |
||
|
28433
|
28433
28033PA040
CIRCLIP
1991-03-01 ~ 1994-10-01; 2C; LHﾉﾐ |
28033PA040 |
— | ||
|
28448
|
28448
28027AA010 ﾌﾟﾛﾃｸﾀ,DOJ ﾌﾞｰﾂ1991-03-01 ~ 1992-08-01; 2C |
28027AA010 |
US $9.77 |
||
|
28491
|
28491
28091PA011 BJ SHAFT UNIT1991-03-01 ~ 1992-08-01; 2C |
28091PA011 |
US $560.74 |
||
|
28491
|
28491
28091PA012 ｼﾔﾌﾄ ｱﾝﾄﾞ BJ ﾌﾞｰﾂ ｷﾂﾄ,ﾘﾔ1992-09-01 ~ 1994-10-01; 2C |
28091PA012 |
US $464.45 |
||
|
28492
|
28492
28092PA030 ﾕﾆﾂﾄ DOJ ｷﾂﾄ,ﾘﾔ1991-03-01 ~ 1994-10-01; 2C; RH |
28092PA030 |
US $461.62 |
||
|
28492
|
28492
28092PA040 ﾕﾆﾂﾄ DOJ ｷﾂﾄ,ﾘﾔ1991-03-01 ~ 1994-10-01; 2C; LH |
28092PA040 |
US $440.38 |
