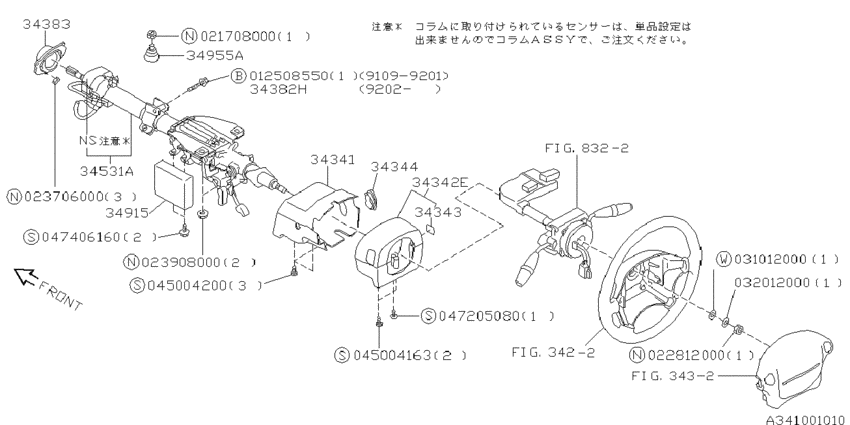

Steering column (ｴｱﾊﾞﾂｸ; 2C.L; 1991-03-01~) Diagram Subaru ALCYONE SVX
- Year
- 1991 - 1994
- Sales region
- Japan
- Engine
- EG33D
- drive
- F4WD
- transmission
- AT
- grade
- L
- body
- 2C
- Suspension
- N/S
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
34341
|
34341
34340PA001ML ｶﾊﾞｰ ｱｾﾝﾌﾞﾘ,ｺﾗﾑ1991-03-01 ~ 1994-10-01; 2C.L; T |
34340PA001ML |
US $36.96 |
||
|
34342E
|
34342E
34340PA030ML ｶﾊﾞｰ,ﾃﾚｽｺﾋﾟﾂｸ ｺﾗﾑ1991-03-01 ~ 1994-10-01; 2C.L; T |
34340PA030ML |
US $26.90 |
||
|
34342E
|
34342E
34340PA061ML ｶﾊﾞｰ,ﾃﾚｽｺﾋﾟﾂｸ ｺﾗﾑ1991-03-01 ~ 1994-10-01; 2C.L; ｴｱﾊﾞﾂｸ ﾖｳ; T |
34340PA061ML |
US $30.30 |
||
|
34343
|
34343
31166GA000 ﾗﾍﾞﾙ,ｺﾗﾑ ｶﾊﾞｰ1991-03-01 ~ 1994-10-01; 2C.L |
31166GA000 |
US $0.28 |
||
|
34344
|
34344
34346PA000 GROMMET COL COVER1991-03-01 ~ 1994-10-01; 2C.L |
34346PA000 |
US $7.08 |
||
|
34382H
|
34382H
34361PA010 BOLTWASHER ASSY1992-01-01 ~ 1994-10-01; 2C.L; ｴｱﾊﾞﾂｸ ﾖｳ |
34361PA010 |
US $1.70 |
||
|
34383
|
34383
34370PA000 ﾀﾞｽﾄ ｼｰﾙ ｱｾﾝﾌﾞﾘ,ｺﾗﾑ1991-03-01 ~ 1994-10-01; 2C.L |
34370PA000 |
US $31.44 |
||
|
34531A
|
34531A
34500PA010 ｺﾗﾑ ｱｾﾝﾌﾞﾘ,ﾁﾙﾄ ｱﾝﾄﾞ ﾃﾚｽｺﾋﾟﾂｸ1991-03-01 ~ 1994-10-01; 2C.L |
34500PA010 |
US $2,152.32 |
||
|
34531A
|
34531A
34500PA080 ｺﾗﾑ ｱｾﾝﾌﾞﾘ,ﾁﾙﾄ ｱﾝﾄﾞ ﾃﾚｽｺﾋﾟﾂｸ1991-03-01 ~ 1994-10-01; 2C.L; ｴｱﾊﾞﾂｸ ﾖｳ |
34500PA080 |
US $2,199.05 |
||
|
34915
|
34915
34186PA000 CONTROLLER STR1991-03-01 ~ 1994-10-01; 2C.L |
34186PA000 |
US $641.45 |
||
|
34955A
|
34955A
34380PA000 GUIDE COLUMN1991-03-01 ~ 1994-10-01; 2C.L |
34380PA000 |
US $14.02 |
||
|
012508550
|
012508550
012508550 BOLT WASHER |
012508550 |
US $0.57 |
||
|
021708000
|
021708000
021708000
NUT
|
021708000 |
— | ||
|
022812000
|
022812000
022812000 NUT |
022812000 |
US $0.28 |
||
|
023706000
|
023706000
023706000
FLANGE NUT
|
023706000 |
— | ||
| replacement | |||||
|
023706000
|
023706000
902370049 Nut, M6 |
902370049 |
US $0.42 |
||
|
023908000
|
023908000
023908000 NUTCONICAL SPG WASH |
023908000 |
US $0.28 |
||
|
031012000
|
031012000
031012000 WASHER |
031012000 |
US $0.28 |
||
|
032012000
|
032012000
032012000 SPRING WASHER |
032012000 |
US $0.14 |
||
|
045004163
|
045004163
045004163 Screw |
045004163 |
US $0.14 |
||
|
045004200
|
045004200
045004200 TAPPING SCREW |
045004200 |
US $0.14 |
||
|
047205080
|
047205080
047205080 FT TAPPING SCRE |
047205080 |
US $0.28 |
||
|
047406160
|
047406160
047406160 FT TAPPING SCREW |
047406160 |
US $0.28 |
||
