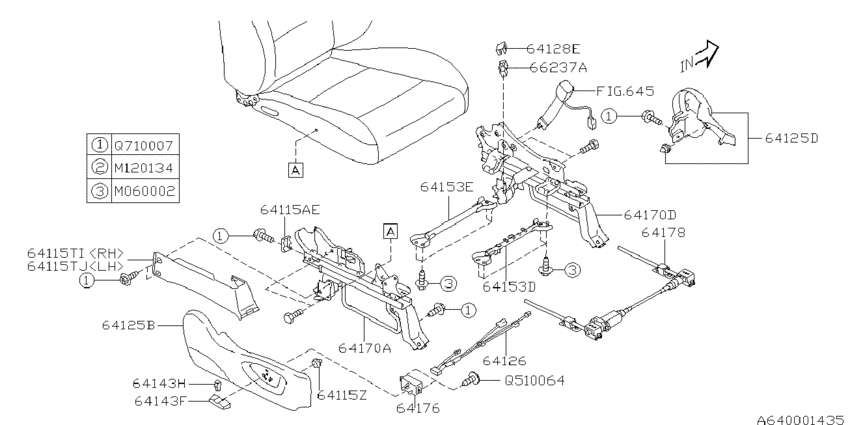

Front seat (SLIDE RAIL&HINGE(4WAY POWER); X; 2006-03-01~) Diagram Subaru B9 TRIBECA
- Year
- 2006 - 2007
- Sales region
- Europe
- Engine
- 30D
- drive
- 4W
- transmission
- 5AT
- grade
- 5M
- body
- X
- Destinat
- RH
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
64115AE
|
64115AE
64115AG37AJC
Cover-link front seat,rear
2006-03-01 ~ 2007-09-01; OFF BLACK; X.RH; T |
64115AG37AJC |
— | ||
|
64115TI
|
64115TI
64115XA06AMW
Cover-seat bracket,center right
2006-03-01 ~ 2007-09-01; DARK GRAY; *X.5M.RH; T |
64115XA06AMW |
— | ||
|
64115TJ
|
64115TJ
64115XA07AMW
Cover-seat bracket,center left
2006-03-01 ~ 2007-09-01; DARK GRAY; *X.5M.RH; T |
64115XA07AMW |
— | ||
|
64115Z
|
64115Z
64115AG06A Cover-hinge clip2006-03-01 ~ 2007-09-01; *X.5M.RH |
64115AG06A |
US $0.96 |
||
|
64125B
|
64125B
64115XA08AMW
Cover-hinge,front seat outer right
2006-03-01 ~ 2007-09-01; DARK GRAY; *X.5M.RH; T |
64115XA08AMW |
— | ||
|
64125B
|
64125B
64115XA21AMW
Cover-hinge,front seat outer right
2006-03-01 ~ 2007-09-01; DARK GRAY; *X.5M.RH; T |
64115XA21AMW |
— | ||
|
64125D
|
64125D
64115XA22AMW
Cover-hinge,front seat inner right
2006-03-01 ~ 2007-09-01; DARK GRAY; *X.5M.RH; T |
64115XA22AMW |
— | ||
|
64126
|
64126
64126XA05A
Harness assembly-power seat
2006-03-01 ~ 2007-09-01; *X.5M.RH; LH; 8WAY |
64126XA05A |
— | ||
|
64126
|
64126
64126XA06A
Harness assembly-power seat
2006-03-01 ~ 2007-09-01; *X.5M.RH; RH |
64126XA06A |
— | ||
|
64126
|
64126
64126XA07A
Harness assembly-power seat
2006-03-01 ~ 2007-09-01; *X.5M.RH; RH |
64126XA07A |
— | ||
|
64128E
|
64128E
64128XA01A HOLDER LAMP LH2006-03-01 ~ 2007-09-01; *X.5M.RH |
64128XA01A |
US $20.91 |
||
|
64143F
|
64143F
64143AE01AMW
Knob-power seat
2006-03-01 ~ 2007-09-01; DARK GRAY; *X.5M.RH; T |
64143AE01AMW |
— | ||
|
64143H
|
64143H
64143AE00AMW
Knob-reclining
2006-03-01 ~ 2007-09-01; DARK GRAY; *X.5M.RH; T |
64143AE00AMW |
— | ||
|
64176
|
64176
64176AE10A
Switch assembly-power seat
2006-03-01 ~ 2007-09-01; *X.5M.RH; 8 WAY SWITCH |
64176AE10A |
— | ||
|
66237A
|
66237A
66237AG01A LAMP POCKET SIA2006-03-01 ~ 2007-09-01; *X.5M.RH |
66237AG01A |
US $17.46 |
||
|
M120134
|
M120134
901120134 ﾎﾞﾙﾄ ｱｾﾝﾌﾞﾘ M8X202006-03-01 ~ 2007-09-01; X |
901120134 |
US $1.56 |
||
|
Q510064
|
Q510064
904510064 Screw tap2006-03-01 ~ 2007-09-01; X |
904510064 |
US $0.57 |
||
|
Q710007
|
Q710007
904710007 Screw tap2006-03-01 ~ 2007-09-01; X |
904710007 |
US $0.42 |
