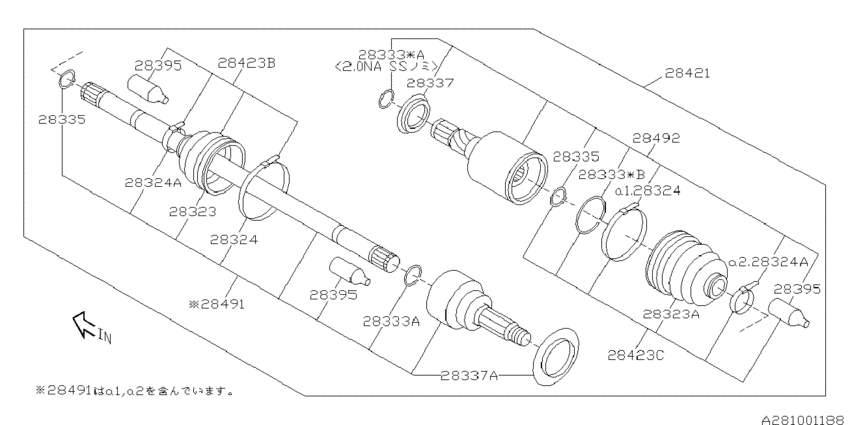

Rear axle (ｱｸｽﾙ ｼﾔﾌﾄ; W.4W; 2008-04-01~) Diagram Subaru EXIGA
- Year
- 2008 - 2011
- Sales region
- Japan
- Engine
- 204
- drive
- 4W
- transmission
- 4AT
- grade
- IL
- body
- W
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
28323
|
28323
28423AG001 BOOT-DRIVE SHAFT (OUTER)2008-04-01 ~ ; W.4W.I# |
28423AG001 |
from US $10.92 |
||
|
28323A
|
28323A
28423AG010 BOOT-DRIVE SHAFT (INNER)2008-04-01 ~ ; W.4W.I# |
28423AG010 |
from US $11.12 |
||
|
28324
|
28324
23242GA400 BANDAXLE SFT BOOT2008-04-01 ~ ; W.4W; ﾀﾞｲｹｲ ﾖｳ |
23242GA400 |
from US $4.90 |
||
|
28324A
|
28324A
23242GA410 BANDAXLE SFT BOOT2008-04-01 ~ ; W.4W; ｼﾖｳｹｲ ﾖｳ |
23242GA410 |
from US $3.90 |
||
|
28333
|
28333
28033FA000 CIRCLIP2008-04-01 ~ ; W.4W.I# |
28033FA000 |
US $2.69 |
||
|
28333
|
28333
723224010 CIR CLIP DOJ2008-04-01 ~ ; W.4W.I# |
723224010 |
US $1.27 |
||
|
28333A
|
28333A
723224000 CIR CLIP CVJ2008-04-01 ~ ; W.4W.I# |
723224000 |
US $0.85 |
||
|
28335
|
28335
623205060 STOP RINGDOJ2008-04-01 ~ ; W.4W.I# |
623205060 |
from US $0.81 |
||
|
28337
|
28337
28037FA000 ﾊﾞﾂﾌﾙ ﾌﾟﾚｰﾄ,DOJ2008-04-01 ~ ; W.4W.I# |
28037FA000 |
US $6.37 |
||
|
28337A
|
28337A
28437FG000 BAFFLE PLATE2008-04-01 ~ ; W.4W |
28437FG000 |
from US $5.12 |
||
|
28395
|
28395
28395TC000
GREASE-DRIVE SHAFT (Cannot be supplied)
2008-04-01 ~ ; W.4W; BJ; NKG106 65G |
28395TC000 |
— | ||
|
28395
|
28395
28495AG000
GREASE-DRIVE SHAFT (Cannot be supplied)
2008-04-01 ~ ; W.4W; DOJ; NKG205 100G DOJﾖｳ |
28495AG000 |
— | ||
|
28421
|
28421
28421SC000 ﾄﾞﾗｲﾌﾞ ｼﾔﾌﾄ ｱｾﾝﾌﾞﾘ,ﾘﾔ2008-04-01 ~ ; W.4W.I# |
28421SC000 |
US $708 |
||
|
28423B
|
28423B
28496FG000 ﾌﾞｰﾂ ｷﾂﾄ,BJ ﾘﾔ2008-04-01 ~ ; W.4W.I# |
28496FG000 |
US $39.79 |
||
|
28423C
|
28423C
28497AG000 ﾌﾞｰﾂ ｷﾂﾄ,DOJ ﾘﾔ2008-04-01 ~ ; W.4W.I# |
28497AG000 |
US $49.14 |
||
|
28491
|
28491
28491SC000 ｼﾔﾌﾄ ｱﾝﾄﾞ BJ ﾌﾞｰﾂ ｷﾂﾄ,ﾘﾔ2008-04-01 ~ ; W.4W.I# |
28491SC000 |
US $437.54 |
||
|
28492
|
28492
28492AG000 ﾕﾆﾂﾄ DOJ ｷﾂﾄ,ﾘﾔ2008-04-01 ~ ; W.4W.I# |
28492AG000 |
US $295.94 |
