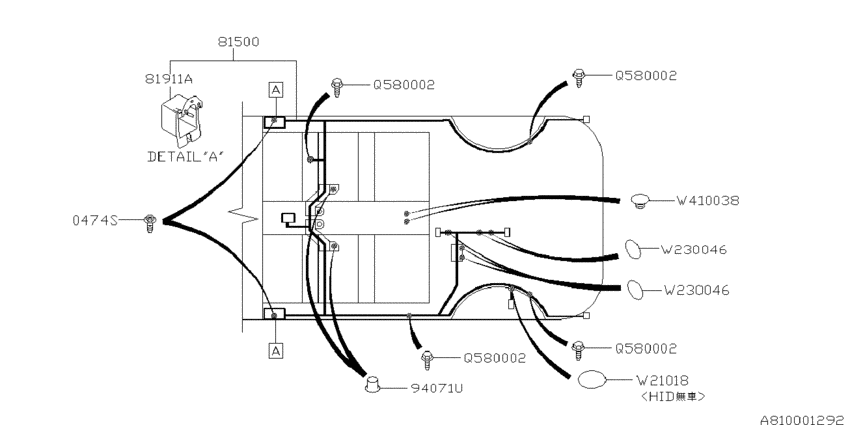

Wiring harness (main) (ﾘﾔ; W; 2008-04-01~) Diagram Subaru EXIGA
- Year
- 2008 - 2011
- Sales region
- Japan
- Engine
- 204
- drive
- 4W
- transmission
- 4AT
- grade
- IL
- body
- W
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
0474S
|
0474S
047406120
TAPPING SCREW-HEXAGON FLANGE HEAD
2008-04-01 ~ ; W |
047406120 |
— | ||
| replacement | |||||
|
0474S
|
0474S
904740011 TAPPING SCREW2008-04-01 ~ ; W |
904740011 |
from US $0.28 |
||
|
81500
|
81500
81500YC020 ﾊｰﾈｽ,ﾘﾔ2008-04-01 ~ ; *W.(IL+IS) |
81500YC020 |
US $719.33 |
||
|
81500
|
81500
81500YC030 ﾊｰﾈｽ,ﾘﾔ2008-04-01 ~ ; *W.(IL+IS) |
81500YC030 |
US $719.33 |
||
|
81500
|
81500
81500YC040 ﾊｰﾈｽ,ﾘﾔ2008-04-01 ~ ; *W.(IL+IS) |
81500YC040 |
US $811.37 |
||
|
81500
|
81500
81500YC050 ﾊｰﾈｽ,ﾘﾔ2008-04-01 ~ ; *W.(IL+IS) |
81500YC050 |
US $1,132.80 |
||
|
81500
|
81500
81500YC060 ﾊｰﾈｽ,ﾘﾔ2008-04-01 ~ ; *W.(IL+IS) |
81500YC060 |
US $903.41 |
||
|
81500
|
81500
81500YC070 ﾊｰﾈｽ,ﾘﾔ2008-04-01 ~ ; *W.(IL+IS) |
81500YC070 |
US $903.41 |
||
|
81500
|
81500
81500YC080 ﾊｰﾈｽ,ﾘﾔ2008-04-01 ~ ; *W.(IL+IS) |
81500YC080 |
US $1,332.46 |
||
|
81500
|
81500
81500YC090 ﾊｰﾈｽ,ﾘﾔ2008-04-01 ~ ; *W.IL |
81500YC090 |
US $811.37 |
||
|
81500
|
81500
81500YC120 ﾊｰﾈｽ,ﾘﾔ2008-04-01 ~ ; *W.(IL+IS) |
81500YC120 |
US $903.41 |
||
|
81500
|
81500
81500YC130 ﾊｰﾈｽ,ﾘﾔ2008-04-01 ~ ; *W.(IL+IS) |
81500YC130 |
US $1,026.60 |
||
|
81500
|
81500
81500YC140 ﾊｰﾈｽ,ﾘﾔ2008-04-01 ~ ; *W.(IL+IS) |
81500YC140 |
US $1,332.46 |
||
|
81500
|
81500
81500YC340 ﾊｰﾈｽ,ﾘﾔ2008-04-01 ~ ; *W.(IL+IS) |
81500YC340 |
US $1,132.80 |
||
|
81500
|
81500
81500YC350 ﾊｰﾈｽ,ﾘﾔ2008-04-01 ~ ; *W.(IL+IS) |
81500YC350 |
US $1,026.60 |
||
|
81500
|
81500
81500YC360 ﾊｰﾈｽ,ﾘﾔ2008-04-01 ~ ; *W.(IL+IS) |
81500YC360 |
US $1,210.68 |
||
|
81911A
|
81911A
81911AG020 CONNECTOR HOLDER R2008-04-01 ~ ; W |
81911AG020 |
US $5.38 |
||
|
94071U
|
94071U
94099AA020 CLIP SD SILL LWR2008-04-01 ~ ; W |
94099AA020 |
US $1.13 |
||
|
Q580002
|
Q580002
904580002 BOLT2008-04-01 ~ ; W |
904580002 |
US $0.42 |
||
|
W21018
|
W21018
909210180 ｸﾞﾛﾒﾂﾄ2008-04-01 ~ ; *W.(IL+IS+GT); D=36 |
909210180 |
US $2.27 |
||
|
W230046
|
W230046
909230046 GROMMET SHEET D302008-04-01 ~ ; *W.(IL+IS+GT) |
909230046 |
from US $0.71 |
||
|
W410038
|
W410038
909410038 PLUG M82008-04-01 ~ ; W |
909410038 |
US $0.71 |
||
