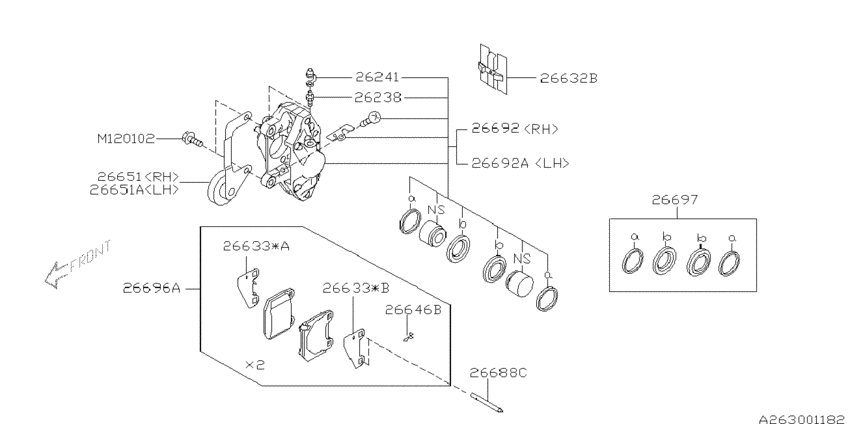

Rear brake (ﾃﾞｲｽｸ 17 ｲﾝﾁ Cﾈﾝｶｲ-; W.STI; 2003-11-01~) Diagram Subaru FORESTER
- Year
- 2003 - 2011
- Sales region
- Japan
- Engine
- EJ255
- drive
- F4WD
- transmission
- 6MT
- grade
- STI
- body
- W
- Suspension
- N/S
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
26238
|
26238
26238FE001 BLEEDER SCREW2006-11-01 ~ 2007-11-01; W.STI |
26238FE001 |
from US $9.68 |
||
|
26241
|
26241
26241FE000 BLEEDER CAP2006-11-01 ~ 2007-11-01; W.STI |
26241FE000 |
US $4.39 |
||
|
26632B
|
26632B
26632FE001 PAD CLIPCRS SPRG2006-11-01 ~ 2007-11-01; W.STI |
26632FE001 |
from US $14.58 |
||
|
26633
|
26633
26633FE000 Shim, disc brake, rear outer and inner2006-11-01 ~ 2007-11-01; W.STI |
26633FE000 |
US $8.50 |
||
|
26633
|
26633
26633FE010 Shim, disc brake, rear outer and inner2006-11-01 ~ 2007-11-01; W.STI |
26633FE010 |
US $8.50 |
||
|
26646B
|
26646B
26231FE040 SLIDE PINCLIP2006-11-01 ~ 2007-11-01; W.STI |
26231FE040 |
from US $5.38 |
||
|
26651
|
26651
26651FE000 DYNAMIC DAMPER RH2006-11-01 ~ 2007-11-01; W.STI |
26651FE000 |
US $73.49 |
||
|
26651A
|
26651A
26651FE010 DYNAMIC DAMPER LH2006-11-01 ~ 2007-11-01; W.STI |
26651FE010 |
US $73.49 |
||
|
26688C
|
26688C
26631FE000 SLIDE PIN2006-11-01 ~ 2007-11-01; W.STI |
26631FE000 |
from US $4.77 |
||
|
26692
|
26692
26692FE001 DISK BRAKE KIT R RH2006-11-01 ~ 2007-11-01; W.STI |
26692FE001 |
US $1,363.61 |
||
|
26692A
|
26692A
26692FE011 DISK BRAKE KIT R LH2006-11-01 ~ 2007-11-01; W.STI |
26692FE011 |
US $1,363.61 |
||
|
26696A
|
26696A
26696FE080 PAD KIT R2006-11-01 ~ 2007-11-01; W.STI |
26696FE080 |
from US $575.85 |
||
|
26697
|
26697
26697FE000 SEAL KIT2006-11-01 ~ 2007-11-01; W.STI |
26697FE000 |
from US $73.94 |
||
|
M120102
|
M120102
901120102 BOLT ASSY 10X272006-11-01 ~ 2007-11-01; W.STI |
901120102 |
from US $1.70 |
