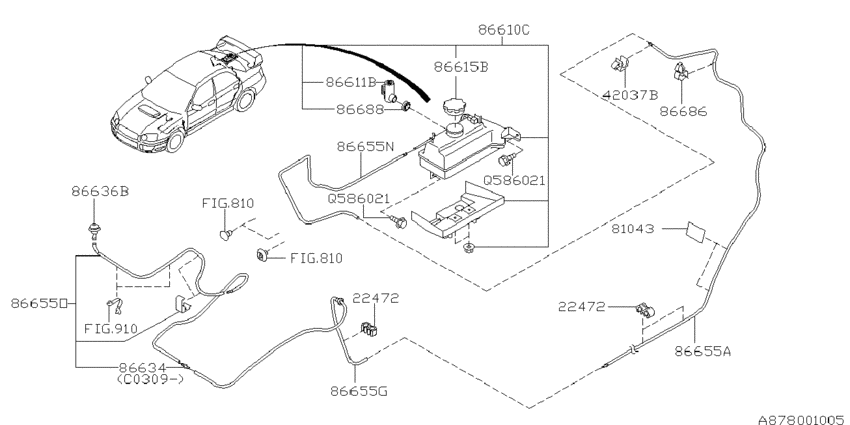

Inter cooler water spray (FOR STI '04MY-; S.STI#; 2002-10-01~) Diagram Subaru IMPREZA
- Year
- 2002 - 2011
- Sales region
- U.S.A.
- Engine
- 257
- drive
- 4W
- transmission
- 6MT
- grade
- STI
- body
- S
- Suspension
- N/S
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
22472
|
22472
22472KA040 SUPTHT CABLE2004-01-01 ~ 2005-05-01; S.STI |
22472KA040 |
US $2.12 |
||
|
22472
|
22472
22472KA040 SUPTHT CABLE2004-01-01 ~ 2005-05-01; S.STI |
22472KA040 |
US $2.12 |
||
|
42037B
|
42037B
42038TA080 CLAMP2004-01-01 ~ 2005-05-01; S.STI |
42038TA080 |
US $1.56 |
||
|
81043
|
81043
781054020
ﾃｰﾌﾟ,ﾌﾕｴﾙ ｺｰﾄﾞ
2004-01-01 ~ 2005-05-01; S.STI |
781054020 |
— | ||
| replacement | |||||
|
81043
|
81043
781054010 TAPE2004-01-01 ~ 2005-05-01; S.STI |
781054010 |
US $1.27 |
||
|
86610C
|
86610C
86661FE020
Tank assembly-inter cooler
2004-01-01 ~ 2005-05-01; S.STI; 4L |
86661FE020 |
— | ||
|
86611B
|
86611B
86611FE010 MOTOR PUMP ASSY2004-01-01 ~ 2005-05-01; S.STI |
86611FE010 |
US $35.26 |
||
|
86615B
|
86615B
86615FE000 CAP2004-01-01 ~ 2005-05-01; S.STI |
86615FE000 |
US $5.38 |
||
|
86634
|
86634
86634AG010 VALVE R2004-01-01 ~ 2005-05-01; S.STI |
86634AG010 |
US $7.79 |
||
|
86636B
|
86636B
86636FA120 NOZZLE2004-01-01 ~ 2005-05-01; S.STI |
86636FA120 |
from US $7.47 |
||
|
86655A
|
86655A
86655FE040 HOSE ASSY RSD 4D2004-01-01 ~ 2005-05-01; S.STI |
86655FE040 |
US $28.46 |
||
|
86655G
|
86655G
86655FE020 HOSE ASSY RFEND2004-01-01 ~ 2005-05-01; S.STI |
86655FE020 |
US $12.32 |
||
|
86655N
|
86655N
86655FE230
Hose assembly-inter cooler
2004-01-01 ~ 2005-05-01; S.STI |
86655FE230 |
— | ||
|
86655O
|
86655O
86655FE221 HOSE ASSY DCTIC2004-01-01 ~ 2005-05-01; S.STI |
86655FE221 |
US $28.46 |
||
|
86686
|
86686
86617AA040 CLIP-WASHER HOSE2004-01-01 ~ 2005-05-01; S.STI |
86617AA040 |
from US $0.41 |
||
|
86688
|
86688
686223030
GROMMETWS WASH
2004-01-01 ~ 2005-05-01; S.STI; ND |
686223030 |
— | ||
| replacement | |||||
|
86688
|
86688
86623KG010 PACKING MOTOR2004-01-01 ~ 2005-05-01; S.STI; ND |
86623KG010 |
from US $0.96 |
||
|
Q586021
|
Q586021
904586021
SCREW TAP BOLT M6
2004-01-01 ~ 2005-05-01; S.STI |
904586021 |
— | ||
|
Q586021
|
Q586021
904586021
SCREW TAP BOLT M6
2004-01-01 ~ 2005-05-01; S.STI |
904586021 |
— | ||
