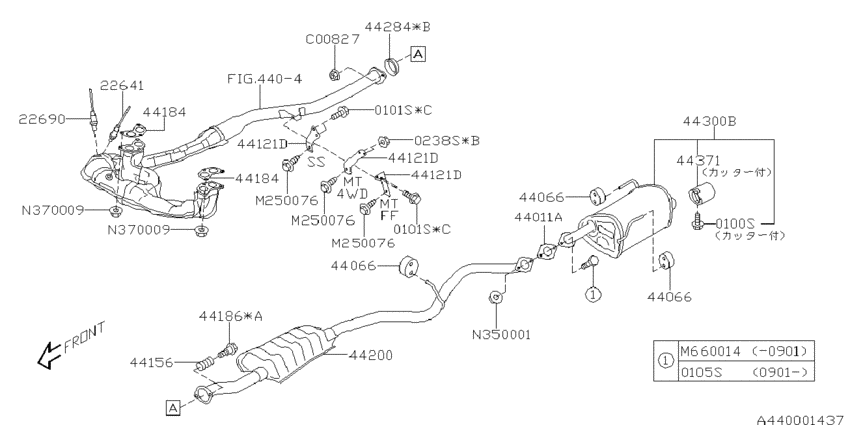

Exhaust (ｴｷｿﾞｰｽﾄ & ﾏﾌﾗｰ Bﾈﾝｶｲ-; S.154; 2008-07-01~) Diagram Subaru IMPREZA
- Year
- 2008 - 2011
- Sales region
- Japan
- Engine
- 154
- drive
- 4W
- transmission
- 5MT
- grade
- 15I
- body
- S
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
0100S
|
0100S
010006127 FLANGE BOLT2008-07-01 ~ ; 154 +203 +20X |
010006127 |
from US $0.26 |
||
|
0101S
|
0101S
010106160 FLANGE BOLT-PILOT2008-07-01 ~ ; 154 +203 +20X |
010106160 |
US $0.28 |
||
|
0101S
|
0101S
010106200 FLANGE BOLT2008-07-01 ~ ; 154 +203 +20X |
010106200 |
from US $0.46 |
||
|
0101S
|
0101S
010108200 FLANGE BOLTPLT2008-07-01 ~ ; 154 +203 +20X |
010108200 |
from US $0.42 |
||
|
0101S
|
0101S
010110250 FLANGE BOLTPLT2008-07-01 ~ ; 154 +203 +20X |
010110250 |
from US $0.48 |
||
|
0105S
|
0105S
010510307 FLANGE BOLT2009-01-01 ~ ; 154 +203 +20X |
010510307 |
from US $0.81 |
||
|
0238S
|
0238S
023806000 FLANGE NUT2008-07-01 ~ ; 154 +203 +20X |
023806000 |
from US $0.28 |
||
| replacement | |||||
|
0238S
|
0238S
023806006 FLANGE NUT2008-07-01 ~ ; 154 +203 +20X |
023806006 |
US $0.28 |
||
|
0238S
|
0238S
023808000 FLANGE NUT2008-07-01 ~ ; 154 +203 +20X |
023808000 |
US $0.42 |
||
|
22641
|
22641
22641AA480 SENSOR ASSEMBLY-AIR/FUEL RATIO2008-07-01 ~ ; 154; ND |
22641AA480 |
from US $256.89 |
||
|
22690
|
22690
22690AA891 SENSOR ASSEMBLY-OXYGEN2008-07-01 ~ ; 154 |
22690AA891 |
from US $149.92 |
||
|
44011A
|
44011A
44011AE010 GASKET2008-07-01 ~ ; 154 +203 |
44011AE010 |
from US $4.88 |
||
|
44066
|
44066
44066AE021 CUSHION EXH2008-07-01 ~ ; S.(154+203) +20X |
44066AE021 |
from US $4.77 |
||
|
44121D
|
44121D
44021AA090 BRKT HGR 4WDMT FT2008-07-01 ~ ; 4W.5MT.154 +5MT.20X |
44021AA090 |
US $13.74 |
||
|
44156
|
44156
44044AA010 SPRING2008-07-01 ~ ; 154 +203 +20X |
44044AA010 |
from US $1.96 |
||
|
44184
|
44184
44022AA020
GASKET F
2008-07-01 ~ ; 154 +203 |
44022AA020 |
— | ||
| replacement | |||||
|
44184
|
44184
44616AA290 GASKETEXHAUST2008-07-01 ~ ; 154 +203 |
44616AA290 |
from US $4.38 |
||
|
44186
|
44186
44059AA010 BOLT2008-07-01 ~ ; 154 +203 +20X |
44059AA010 |
from US $1.55 |
||
|
44200
|
44200
44200FG060 EXH PIPE ASSY R2008-07-01 ~ ; S.154 |
44200FG060 |
from US $416.03 |
||
|
44284
|
44284
44011AE030
GASKET FR
2008-07-01 ~ ; 154 |
44011AE030 |
— | ||
| replacement | |||||
|
44284
|
44284
44011AE031 GASKET FR2008-07-01 ~ ; 154 |
44011AE031 |
from US $8.66 |
||
|
44300B
|
44300B
44300FG170 MUFFLER ASSY LH2008-07-01 ~ ; S.154 +S.20I.203 |
44300FG170 |
US $327.10 |
||
|
44300B
|
44300B
44300FG230 MUFFLER ASSY LH2008-07-01 ~ ; *S.154 |
44300FG230 |
from US $345.65 |
||
|
44371
|
44371
44370FG000 TAIL PIPE CTR AY2008-07-01 ~ ; *S.154 |
44370FG000 |
US $59.47 |
||
|
C00827
|
C00827
802008270 NUT8X752008-07-01 ~ ; 154 +203 +20X |
802008270 |
from US $1.02 |
||
|
M250076
|
M250076
901250076 BOLT WASHER M102008-07-01 ~ ; 154 +203 +20X |
901250076 |
from US $0.44 |
||
|
M660014
|
M660014
901660014 BOLT2008-07-01 ~ 2009-01-01; 154 +203 +20X |
901660014 |
from US $0.54 |
||
|
N350001
|
N350001
902350001 SELF LOCK NUT102008-07-01 ~ ; 154 +203 +20X |
902350001 |
from US $0.31 |
||
|
N370009
|
N370009
902370009
ﾌﾗﾝｼﾞ ﾅﾂﾄ
2008-07-01 ~ ; 154 +203 +20X |
902370009 |
— | ||
| replacement | |||||
|
N370009
|
N370009
902370010 FLANGE NUT10X92008-07-01 ~ ; 154 +203 +20X |
902370010 |
from US $1.05 |
||
