Component List IMPREZA
Mt, auxiliary gear (ﾊｲ&ﾛ-ｷﾞﾔ; F4WD.HX.MT.A/S; 1992-05-01~1994-09-01)

Difficulties in parts search?

Parts list

Difficulties in parts search?

	Description	OEM Part #	Price
32617	32617 32617AA020 HUBSYNCROHILO 1992-05-01 ~ 1993-08-01; MT.A/S	32617AA020	US $65.14
32618	32618 32618AA000 INSSHFHIGHLOW 1992-05-01 ~ 1993-08-01; MT.A/S	32618AA000	US $1.13
32619	32619 32619AA020 ｽﾘｰﾌﾞ,ｶﾂﾌﾟﾘﾝｸﾞﾊｲｱﾝﾄﾞﾛｰ 1992-05-01 ~ 1993-08-01; MT.A/S	32619AA020	US $65.14
32620	32620 32620AA021 RINGBAULKHL 1992-05-01 ~ 1993-08-01; MT.A/S	32620AA021	US $28.04
32620	32620 32620AA022 RINGBAULKHL 1993-06-01 ~ 1993-08-01; MT.A/S	32620AA022	US $21.10
32621	32621 32621AA020 SPRSYNCROHILO 1992-05-01 ~ 1993-08-01; MT.A/S	32621AA020	US $0.99
35202	35202 35202AA050 ｼﾔﾌﾄ,ｲﾝﾌﾟﾂﾄﾊｲｱﾝﾄﾞﾛｰ 1992-05-01 ~ 1993-08-01; MT.A/S	35202AA050	US $257.71
35203	35203 35203AA000 SPCRINP GEARLOW 1992-05-01 ~ 1993-08-01; MT.A/S	35203AA000	US $14.16
35204	35204 35204AA000 COTTERINPUT SFT 1992-05-01 ~ 1993-08-01; MT.A/S; T=2.43	35204AA000	US $5.24
35204	35204 35204AA010 COTTERINPUT SFT 1992-05-01 ~ 1993-08-01; MT.A/S; T=2.51	35204AA010	US $5.24
35204	35204 35204AA020 COTTERINPUT SFT 1992-05-01 ~ 1993-08-01; MT.A/S; T=2.59	35204AA020	US $5.24
35205	35205 35205AA000 RETINPUT SFT 1992-05-01 ~ 1993-08-01; MT.A/S	35205AA000	—
35206	35206 35206AA060 ｷﾞﾔ,ｲﾝﾌﾟﾂﾄﾛｰ 1992-05-01 ~ 1993-08-01; MT.A/S	35206AA060	US $136.79
35208	35208 35208AA041 HLDRINPUT SFT 1992-05-01 ~ 1993-08-01; MT.A/S	35208AA041	US $109.88
35209	35209 35209AA000 SFTCNTRHIGHLOW 1992-05-01 ~ 1993-08-01; MT.A/S	35209AA000	US $56.07
35210	35210 35210AA010 WASHCNTRHILO 1992-05-01 ~ 1993-08-01; MT.A/S	35210AA010	US $9.06
35211	35211 35211AA011 GUIDEOIL 1992-05-01 ~ 1993-08-01; MT.A/S	35211AA011	—
35212	35212 35212AA000 SHIMINPUT SFT 1992-05-01 ~ 1993-08-01; MT.A/S; 0-2ﾏｲｾﾝﾀｸ; T=0.5	35212AA000	—
35215	35215 35215AA020 GEARCNTR 1992-05-01 ~ 1993-08-01; MT.A/S	35215AA020	US $141.03
35217	35217 35217AA000 COLRCNTR GEAR 1992-05-01 ~ 1993-06-01; MT.A/S	35217AA000	US $5.24
35217	35217 35217AA010 ｶﾗｰ,ｶｳﾝﾀｷﾞﾔ 1993-07-01 ~ 1993-08-01; MT.A/S	35217AA010	US $5.24
A20871	A20871 800208710 BOLT 1992-05-01 ~ 1993-08-01; MT.A/S	800208710	US $0.57
F01901	F01901 805019010 SNAPRINGOTR 19 1992-05-01 ~ 1993-08-01; MT.A/S; T=1.72	805019010	US $1.84
F025051	F025051 805025051 ｽﾅﾂﾌﾟﾘﾝｸﾞ,ｱｳﾀ 1992-05-01 ~ 1993-08-01; MT.A/S; T=2.42	805025051	US $3.82
F025052	F025052 805025052 ｽﾅﾂﾌﾟﾘﾝｸﾞ,ｱｳﾀ 1992-05-01 ~ 1993-08-01; MT.A/S; T=2.47	805025052	US $3.82
F025053	F025053 805025053 SNAPRINGOTR 25 1992-05-01 ~ 1993-08-01; MT.A/S; T=2.52	805025053	US $3.82
F025054	F025054 805025054 SNAPRINGOTR 25 1992-05-01 ~ 1993-08-01; MT.A/S; T=2.57	805025054	US $3.82
F025055	F025055 805025055 SNAPRINGOTR 25 1992-05-01 ~ 1993-08-01; MT.A/S; T=2.62	805025055	US $3.82
F025056	F025056 805025056 SNAPRINGOTR 25 1992-05-01 ~ 1993-08-01; MT.A/S; T=2.67	805025056	US $3.82
F025057	F025057 805025057 SNAPRINGOTR 25 1992-05-01 ~ 1993-08-01; MT.A/S; T=2.72	805025057	US $3.82
F025058	F025058 805025058 SNAPRINGOTR 25 1992-05-01 ~ 1993-08-01; MT.A/S; T=2.37	805025058	US $3.82
F162011	F162011 805162011 SNAPRINGINR 62 1992-05-01 ~ 1993-08-01; MT.A/S; T=1.75	805162011	US $9.06
F162012	F162012 805162012 SNAPRINGINR 62 1992-05-01 ~ 1993-08-01; MT.A/S; T=1.83	805162012	US $9.06
F162013	F162013 805162013 SNAPRINGINR 62 1992-05-01 ~ 1993-08-01; MT.A/S; T=1.91	805162013	US $9.06
G00301	G00301 806003010 BALL39688 1992-05-01 ~ 1993-08-01; MT.A/S	806003010	US $0.14
G22526	G22526 806225260 BALL BRG 1993-08-01 ~ 1993-08-01; MT.A/S	806225260	from US $13.74
G42004	G42004 806420040 CYLINDRICAL RLR BRG 1992-05-01 ~ 1993-08-01; MT.A/S	806420040	from US $7.12
G42203	G42203 806422030 NDL BRG22X28X23 1992-05-01 ~ 1993-08-01; MT.A/S	806422030	US $14.87
G42508	G42508 806425080 NDLE BRG25X31X24 1992-05-01 ~ 1993-08-01; MT.A/S	806425080	from US $7.42
G72509	G72509 806725090 OIL SEAL (25x44x10) 1992-05-01 ~ 1993-08-01; MT.A/S	806725090	from US $2.98
G92303	G92303 806923030 RING235X16 1992-05-01 ~ 1993-08-01; MT.A/S	806923030	from US $0.59
G96101	G96101 806961010 Seal O-ring 1992-05-01 ~ 1993-08-01; MT.A/S	806961010	—
031319000	031319000 031319000 CLIP	031319000	from US $0.48
031525000	031525000 031525000 SNAP RINGOUT	031525000	US $0.57
052604061	052604061 052604061 KNOCK PIN	052604061	US $0.14
060263050	060263050 060263050 RADIAL BALL BEARING	060263050	—
	replacement
060263050	060263050 806225260 BALL BRG	806225260	from US $13.74

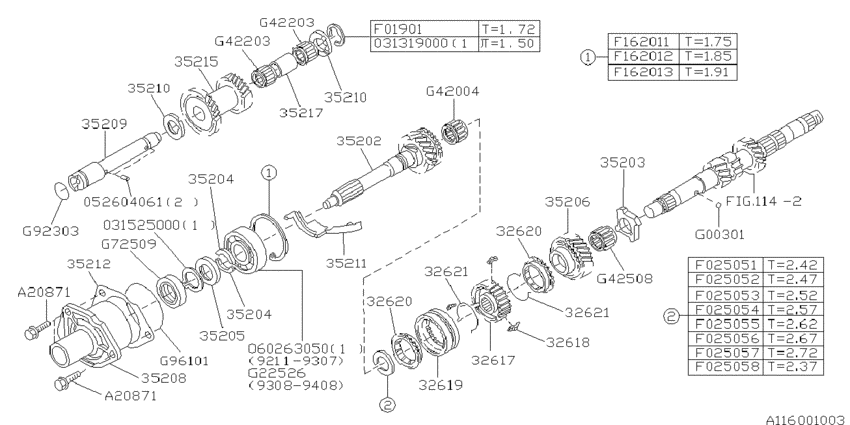

Mt, auxiliary gear (ﾊｲ&ﾛ-ｷﾞﾔ; F4WD.HX.MT.A/S; 1992-05-01~1994-09-01) Diagram Subaru IMPREZA Japan 7082377-552997

Mt, auxiliary gear (ﾊｲ&ﾛ-ｷﾞﾔ; F4WD.HX.MT.A/S; 1992-05-01~1994-09-01) Diagram Subaru IMPREZA Japan 7082377-552997
