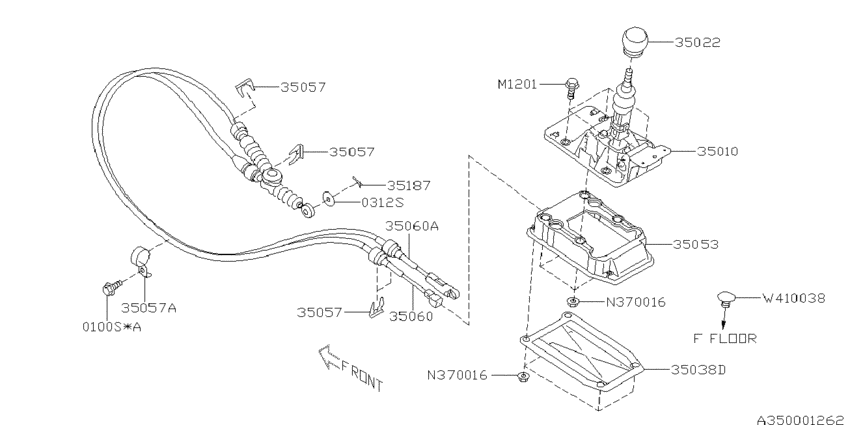

Manual gear shift system (SHIFT LEVER '09MY-; 6MT.20Z; 2008-09-01~) Diagram Subaru IMPREZA
- Year
- 2008 - 2011
- Sales region
- Europe
- Engine
- 20Z
- drive
- 4W
- transmission
- 6MT
- grade
- 20TD
- body
- W
- Destinat
- RH
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
0100S
|
0100S
010008160 FLANGE BOLT-PILOT2008-04-01 ~ ; 5MT +6MT.20Z +SS |
010008160 |
from US $0.26 |
||
|
0100S
|
0100S
010008200 FLANGE BOLTPLT2008-04-01 ~ ; 5MT +6MT.20Z +SS |
010008200 |
US $1.56 |
||
|
0312S
|
0312S
031208006 WASHER2008-04-01 ~ ; 5MT +6MT.20Z +SS |
031208006 |
US $0.14 |
||
|
35010
|
35010
35010SC020
Gear shift lever assembly
2008-04-01 ~ ; 6MT.20Z.RH |
35010SC020 |
— | ||
|
35022
|
35022
35022AG042
Knob, Gear shift lever
2008-04-01 ~ ; 6MT.20Z |
35022AG042 |
— | ||
| replacement | |||||
|
35022
|
35022
35022VA020 KNOB LEATHER2008-04-01 ~ ; 6MT.20Z |
35022VA020 |
US $147.26 |
||
|
35038D
|
35038D
35038SC000 PLATE CABLE ASSY2008-04-01 ~ ; 6MT.20Z |
35038SC000 |
US $11.89 |
||
|
35053
|
35053
35053SC000
COVER CABLE ASSY
2008-04-01 ~ ; 6MT.20Z |
35053SC000 |
— | ||
|
35057
|
35057
35057TC000 CLAMP2008-04-01 ~ ; 6MT.20Z |
35057TC000 |
US $1.27 |
||
|
35057
|
35057
35057TC000 CLAMP2008-04-01 ~ ; 6MT.20Z |
35057TC000 |
US $1.27 |
||
|
35057
|
35057
35057TC000 CLAMP2008-04-01 ~ ; 6MT.20Z |
35057TC000 |
US $1.27 |
||
|
35057A
|
35057A
35057SC000 CLAMP CABLE2008-04-01 ~ ; 6MT.20Z |
35057SC000 |
US $7.79 |
||
|
35060
|
35060
35060SC040
Cable assembly-shift
2008-04-01 ~ ; 6MT.20Z |
35060SC040 |
— | ||
|
35060A
|
35060A
35060SC050 CABLE ASSY SELECT2008-04-01 ~ ; 6MT.20Z |
35060SC050 |
US $91.90 |
||
|
35187
|
35187
35119AA010 SNAP PIN2008-04-01 ~ ; W.4W.5MT.154 +W.(20R+20RS).5MT.204 +6MT.20Z |
35119AA010 |
from US $1.92 |
||
|
M1201
|
M1201
901120100 BOLT ASSY 8X252008-04-01 ~ ; 6MT.20Z |
901120100 |
US $0.85 |
||
|
N370016
|
N370016
902370016 FLANG NUT2008-04-01 ~ ; 6MT.20Z |
902370016 |
US $0.99 |
||
|
N370016
|
N370016
902370016 FLANG NUT2008-04-01 ~ ; 6MT.20Z |
902370016 |
US $0.99 |
||
|
W410038
|
W410038
909410038 PLUG M82008-04-01 ~ ; S.5MT.154 +W.2W.5MT.154 +S.5MT.204 +(20RK+20RKS).5MT.204 +5MT.255 +6MT.20Z |
909410038 |
US $0.71 |
||
