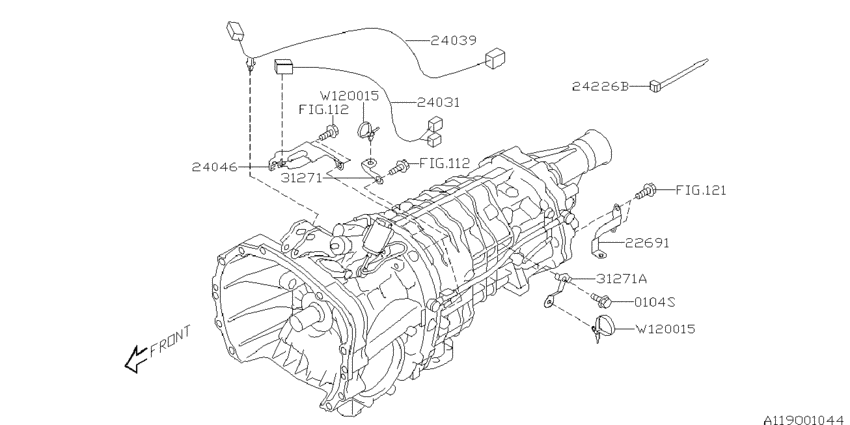

Mt, transmission harness (6MT; 2007-06-01~) Diagram Subaru IMPREZA
- Year
- 2007 - 2011
- Sales region
- Europe
- Engine
- 257
- drive
- 4W
- transmission
- 6MT
- grade
- STI
- body
- W
- Destinat
- LH
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
0104S
|
0104S
010408140
FLANGE BOLT
2007-06-01 ~ 2008-10-01; 6MT |
010408140 |
— | ||
| replacement | |||||
|
0104S
|
0104S
901000266 BOLT FLG M8X142007-06-01 ~ 2008-10-01; 6MT |
901000266 |
from US $0.46 |
||
|
22691
|
22691
22691AA710 BRKTOXYGEN SEN2007-06-01 ~ 2008-10-01; 6MT |
22691AA710 |
US $16 |
||
|
24031
|
24031
24031AA480 HARNTRANS2007-06-01 ~ 2008-10-01; 6MT |
24031AA480 |
from US $23.96 |
||
|
24039
|
24039
24039AA231 HARNESS-SENSOR2007-06-01 ~ 2008-10-01; 6MT |
24039AA231 |
from US $31.93 |
||
|
24046
|
24046
24046AA151 STAYTRANS HARN2007-06-01 ~ 2008-10-01; 6MT |
24046AA151 |
US $6.23 |
||
|
24226B
|
24226B
24226KA030 ｸﾘﾂﾌﾟ,ﾊﾞﾝﾄﾞ B2007-06-01 ~ 2008-10-01; 6MT |
24226KA030 |
US $1.13 |
||
|
31271
|
31271
24046AA200 STAYTRANS HARN2007-06-01 ~ 2008-10-01; 6MT |
24046AA200 |
US $6.09 |
||
|
31271A
|
31271A
31271AA011 STAYTRANS HARN2007-06-01 ~ 2008-10-01; 6MT |
31271AA011 |
US $1.70 |
||
|
W120015
|
W120015
909120015 CLIP902007-06-01 ~ 2008-10-01; 6MT |
909120015 |
US $0.99 |
||
|
W120015
|
W120015
909120015 CLIP902007-06-01 ~ 2008-10-01; 6MT |
909120015 |
US $0.99 |
||
