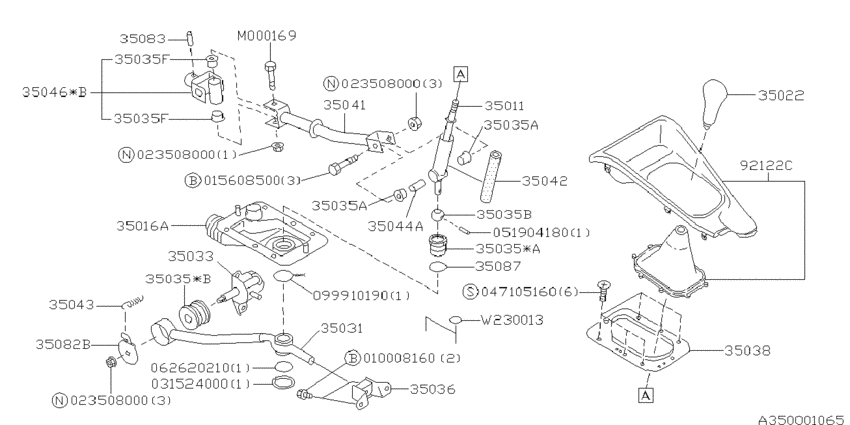

Manual gear shift system (F4W.MT; 1995-12-01~) Diagram Subaru LEGACY
- Year
- 1996 - 1998
- Sales region
- U.S.A.
- Engine
- EJ25D
- drive
- F4WD
- transmission
- MT
- grade
- GT
- body
- S
- Suspension
- N/S
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
35011
|
35011
35011AC050 LEVER COMPL1995-12-01 ~ 1997-07-01; (S+SW).MT; GEAR SHIFT |
35011AC050 |
US $55.65 |
||
|
35016A
|
35016A
35016AC020
BOOT GR SHIFT SR
1995-12-01 ~ 1997-07-01; (S+SW).MT |
35016AC020 |
— | ||
| replacement | |||||
|
35016A
|
35016A
35016AC022 BOOT GR SHIFT SR1995-12-01 ~ 1997-07-01; (S+SW).MT |
35016AC022 |
US $47.72 |
||
|
35022
|
35022
35022AC030 KNOB-GEAR SHIFT1995-12-01 ~ 1997-07-01; GT.MT; LEATHER GEAR SHIFT |
35022AC030 |
US $119.65 |
||
|
35031
|
35031
35031AC030 STAY COMPL1995-12-01 ~ 1997-07-01; MT |
35031AC030 |
US $47.15 |
||
|
35033
|
35033
35033AA022 BRKT COMPL1995-12-01 ~ 1997-07-01; MT |
35033AA022 |
US $15.72 |
||
|
35035
|
35035
35035AC020 BUSH B1995-12-01 ~ 1997-07-01; MT; NO.2 |
35035AC020 |
from US $4.74 |
||
|
35035
|
35035
35035AC020 BUSH B1995-12-01 ~ 1997-07-01; MT; NO.2 |
35035AC020 |
from US $4.74 |
||
|
35035A
|
35035A
35035AC000 BUSH1995-12-01 ~ 1997-07-01; MT; GEAR SHIFT |
35035AC000 |
from US $1.20 |
||
|
35035A
|
35035A
35035AC000 BUSH1995-12-01 ~ 1997-07-01; MT; GEAR SHIFT |
35035AC000 |
from US $1.20 |
||
|
35035B
|
35035B
35035AC010 BUSH A1995-12-01 ~ 1997-07-01; MT |
35035AC010 |
from US $3.72 |
||
|
35036
|
35036
35036AA010 CUSHION RUBBER1995-12-01 ~ 1997-07-01; (S+SW).MT |
35036AA010 |
from US $19.54 |
||
|
35038
|
35038
35038FA000 PLATE BOOT1995-12-01 ~ 1997-07-01; MT |
35038FA000 |
US $16.57 |
||
|
35041
|
35041
35041AC110 ROD COMPL1995-12-01 ~ 1997-07-01; MT |
35041AC110 |
US $36.11 |
||
|
35042
|
35042
35043AC000 INSULATOR1995-12-01 ~ 1997-07-01; MT.EJ25D |
35043AC000 |
US $4.96 |
||
|
35043
|
35043
33022GA081 SPRING1995-12-01 ~ 1997-07-01; MT |
33022GA081 |
US $2.55 |
||
|
35044A
|
35044A
35045AC010 SPACER1995-12-01 ~ 1997-07-01; MT |
35045AC010 |
US $5.52 |
||
|
35046
|
35046
35047AC030 JOINT COMPL FT1995-12-01 ~ 1997-07-01; MT; NO.2 |
35047AC030 |
US $63.86 |
||
|
35083
|
35083
633046020 SPRING PIN UNGS1995-12-01 ~ 1997-07-01; MT |
633046020 |
from US $0.65 |
||
|
35087
|
35087
35056AC000 RING1995-12-01 ~ 1997-07-01; MT |
35056AC000 |
US $0.71 |
||
|
M000169
|
M000169
901000169 BOLT1995-12-01 ~ 1997-07-01; MT |
901000169 |
from US $1.42 |
||
|
W230013
|
W230013
909230013
ｸﾞﾛﾒﾂﾄ ｼｰﾄ
1995-12-01 ~ 1997-07-01; MT; D=30 |
909230013 |
— | ||
| replacement | |||||
|
W230013
|
W230013
909230046 GROMMET SHEET D301995-12-01 ~ 1997-07-01; MT; D=30 |
909230046 |
US $0.71 |
||
|
010008160
|
010008160
010008160 FLANGE BOLT-PILOT |
010008160 |
from US $0.20 |
||
|
015608500
|
015608500
015608500 BOLT |
015608500 |
US $0.57 |
||
|
023508000
|
023508000
023508000 SELF LOCK NUT |
023508000 |
US $1.13 |
||
|
023508000
|
023508000
023508000 SELF LOCK NUT |
023508000 |
US $1.13 |
||
|
023508000
|
023508000
023508000 SELF LOCK NUT |
023508000 |
US $1.13 |
||
|
031524000
|
031524000
031524000 SNAPRINGOUT |
031524000 |
from US $0.81 |
||
|
047105160
|
047105160
047105160 FT TAPPING SCREW |
047105160 |
US $0.28 |
||
|
051904180
|
051904180
051904180 SPRING PIN |
051904180 |
US $0.28 |
||
|
062620210
|
062620210
062620210 RING |
062620210 |
from US $0.50 |
||
|
099910190
|
099910190
099910190 LOCK WIRE |
099910190 |
US $0.28 |
||
