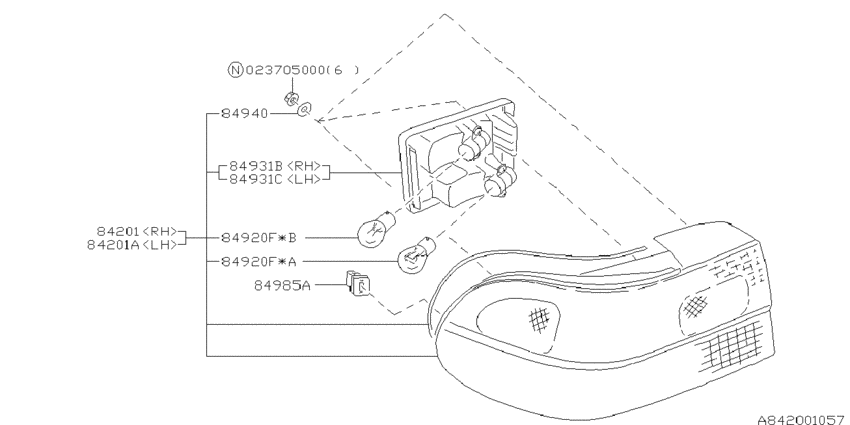

Lamp (rear) (REAR COMBINATION LAMP; S; 1993-10-01~) Diagram Subaru LEGACY
- Year
- 1995 - 1997
- Sales region
- U.S.A.
- Engine
- EJ25D
- drive
- F4WD
- transmission
- AT
- grade
- LSI
- body
- S
- Suspension
- N/S
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
84201
|
84201
84201AC020
Lamp assembly-rear combination right
1995-12-01 ~ 1997-07-01; S |
84201AC020 |
— | ||
|
84201A
|
84201A
84201AC030
Lamp assembly-rear combination left
1995-12-01 ~ 1997-07-01; S |
84201AC030 |
— | ||
|
84920F
|
84920F
684102510 BULB12V38W1995-12-01 ~ 1997-07-01; S; LICENSE LAMP; 12V-3.8W |
684102510 |
US $1.84 |
||
|
84920F
|
84920F
784920020 BULBA12V27W1995-12-01 ~ 1997-07-01; S; TURN LAMP; 12V-27W |
784920020 |
US $4.67 |
||
|
84920F
|
84920F
784920030 BULBA12V278W1995-12-01 ~ 1997-07-01; S; TAIL&STOP LAMP; 12V-27/8W |
784920030 |
US $4.67 |
||
|
84920F
|
84920F
684102510 BULB12V38W1995-12-01 ~ 1997-07-01; S; LICENSE LAMP; 12V-3.8W |
684102510 |
US $1.84 |
||
|
84920F
|
84920F
784920020 BULBA12V27W1995-12-01 ~ 1997-07-01; S; TURN LAMP; 12V-27W |
784920020 |
US $4.67 |
||
|
84920F
|
84920F
784920030 BULBA12V278W1995-12-01 ~ 1997-07-01; S; TAIL&STOP LAMP; 12V-27/8W |
784920030 |
US $4.67 |
||
|
84931B
|
84931B
84931AC000
Socket complete-rear combination lamp rh
1995-12-01 ~ 1997-07-01; S |
84931AC000 |
— | ||
|
84931C
|
84931C
84931AC010
Socket complete-rear combination lamp lh
1995-12-01 ~ 1997-07-01; S |
84931AC010 |
— | ||
|
84940
|
84940
84940GA460 PACKING1995-12-01 ~ 1997-07-01; S |
84940GA460 |
US $0.42 |
||
|
84985A
|
84985A
84965AC000 GROMMETRH 1995-12-01 ~ 1997-07-01; S; RH |
84965AC000 |
US $2.27 |
||
|
84985A
|
84985A
84965AC010 GROMMETLH 1995-12-01 ~ 1997-07-01; S; LH |
84965AC010 |
US $2.12 |
||
|
023705000
|
023705000
023705000
FLANGE NUT
|
023705000 |
— | ||
| replacement | |||||
|
023705000
|
023705000
902370050 ﾌﾗﾝｼﾞ ﾅﾂﾄ M5 |
902370050 |
US $0.28 |
||
