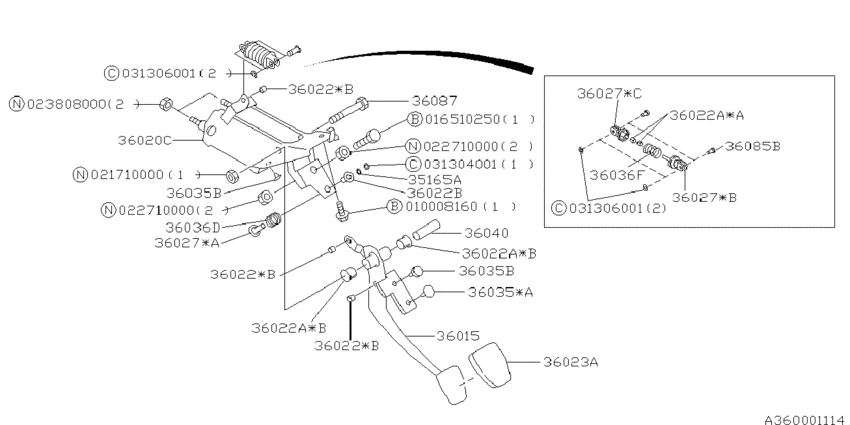

Pedal system (mt) (ｸﾗﾂﾁ ﾍﾟﾀﾞﾙ ﾕｱﾂ; MT.(EJ20H+EJ20R+EJ25D); 1997-06-01~) Diagram Subaru LEGACY
- Year
- 1996 - 2011
- Sales region
- Japan
- Engine
- EJ20R
- drive
- F4WD
- transmission
- MT
- grade
- GTB
- body
- W
- Suspension
- N/S
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
35165A
|
35165A
36054FC000
RING
1997-06-01 ~ 1998-11-01; MT.(EJ20H+EJ20R+EJ25D) |
36054FC000 |
— | ||
|
36015
|
36015
36015FC020
ﾍﾟﾀﾞﾙ ｺﾝﾌﾟﾘｰﾄ,ｸﾗﾂﾁ
1997-06-01 ~ 1998-11-01; MT.(EJ20H+EJ20R) |
36015FC020 |
— | ||
|
36020C
|
36020C
36020FC030 ﾌﾞﾗｹﾂﾄ ｺﾝﾌﾟﾘｰﾄ,ｸﾗﾂﾁ ﾍﾟﾀﾞﾙ1997-06-01 ~ 1998-11-01; MT.(EJ20H+EJ20R+EJ25D) |
36020FC030 |
US $60.60 |
||
|
36022
|
36022
36023AA000
BUSHING ACCEL
1997-06-01 ~ 1998-11-01; F4W.MT; NO.1 |
36023AA000 |
— | ||
|
36022
|
36022
36023FC000 BUSHING A1997-06-01 ~ 1998-11-01; MT.(EJ20H+EJ20R+EJ25D); NO.2 |
36023FC000 |
US $1.56 |
||
|
36022A
|
36022A
36023AA030 ﾌﾞｼﾕ,ﾍﾟﾀﾞﾙ A1997-06-01 ~ 1998-11-01; MT.(EJ20H+EJ20R+EJ25D); NO.1 |
36023AA030 |
from US $1.33 |
||
|
36022A
|
36022A
736013000 BUSHING PEDAL1997-06-01 ~ 1998-11-01; F4W.MT; NO.2 |
736013000 |
from US $1.27 |
||
|
36022B
|
36022B
36023FC030 ﾌﾞｼﾕ,ﾍﾟﾀﾞﾙ B1997-06-01 ~ 1998-11-01; MT.(EJ20H+EJ20R+EJ25D) |
36023FC030 |
US $1.70 |
||
|
36023A
|
36023A
36015GA111 Pad-clutch and brake pedal1997-06-01 ~ 1998-11-01; F4W.MT |
36015GA111 |
from US $1.33 |
||
|
36027
|
36027
36033FC020 RODS1997-06-01 ~ 1998-02-01; MT.(EJ20H+EJ20R+EJ25D); NO.3 |
36033FC020 |
US $20.39 |
||
|
36027
|
36027
36033FC030 ASST ROD A1997-06-01 ~ 1998-02-01; MT.(EJ20H+EJ20R+EJ25D); NO.1 |
36033FC030 |
US $8.78 |
||
|
36027
|
36027
36033FC040 ASST ROD B1997-06-01 ~ 1998-02-01; MT.(EJ20H+EJ20R+EJ25D); NO.2 |
36033FC040 |
US $8.78 |
||
|
36027
|
36027
36034AE000
Rod-Assist
1998-03-01 ~ 1998-11-01; MT.(EJ20H+EJ20R+EJ25D); NO.1 |
36034AE000 |
— | ||
| replacement | |||||
|
36027
|
36027
36034AG000 Rod-Assist1998-03-01 ~ 1998-11-01; MT.(EJ20H+EJ20R+EJ25D); NO.1 |
36034AG000 |
from US $4.48 |
||
|
36027
|
36027
36034AE010 ASST ROD B1998-03-01 ~ 1998-11-01; MT.(EJ20H+EJ20R+EJ25D); NO.2 |
36034AE010 |
US $7.22 |
||
|
36035
|
36035
36036FC010
ｽﾄﾂﾊﾟ,ﾍﾟﾀﾞﾙ A
1997-06-01 ~ 1998-11-01; MT.(EJ20H+EJ20R+EJ25D); NO.1 |
36036FC010 |
— | ||
| replacement | |||||
|
36035
|
36035
36036FC011 ｽﾄﾂﾊﾟ,ﾍﾟﾀﾞﾙ A1997-06-01 ~ 1998-11-01; MT.(EJ20H+EJ20R+EJ25D); NO.1 |
36036FC011 |
US $1.70 |
||
|
36035
|
36035
636004050
ｽﾄﾂﾊﾟ,ﾍﾟﾀﾞﾙ A
1997-06-01 ~ 1998-11-01; F4W.MT |
636004050 |
— | ||
| replacement | |||||
|
36035
|
36035
36041CA010 ｽﾄﾂﾊﾟ,ﾍﾟﾀﾞﾙ A1997-06-01 ~ 1998-11-01; F4W.MT |
36041CA010 |
from US $0.28 |
||
|
36035B
|
36035B
36036AC010
Stopper-pedal, C
1997-06-01 ~ 1998-11-01; F4W.MT |
36036AC010 |
— | ||
|
36036D
|
36036D
36037FC020 SPRINGS1997-06-01 ~ 1998-11-01; MT.(EJ20H+EJ20R) |
36037FC020 |
US $2.83 |
||
|
36036F
|
36036F
36037FC010 ｽﾌﾟﾘﾝｸﾞ ｱｼｽﾄ,ｸﾗﾂﾁ A1997-06-01 ~ 1998-11-01; MT.(EJ20H+EJ20R) |
36037FC010 |
US $3.40 |
||
|
36040
|
36040
36041AA000 SPACER PEDAL1997-06-01 ~ 1998-11-01; F4W.MT |
36041AA000 |
US $6.80 |
||
|
36085B
|
36085B
36025FC020
Pin
1997-06-01 ~ 1998-11-01; MT.(EJ20H+EJ20R+EJ25D) |
36025FC020 |
— | ||
| replacement | |||||
|
36085B
|
36085B
905200017 PIN1997-06-01 ~ 1998-11-01; MT.(EJ20H+EJ20R+EJ25D) |
905200017 |
from US $1.15 |
||
|
36087
|
36087
36053AC000 BOLT1997-06-01 ~ 1998-11-01; F4W.MT |
36053AC000 |
from US $1.63 |
||
|
010008160
|
010008160
010008160 FLANGE BOLT-PILOT |
010008160 |
from US $0.20 |
||
|
016510250
|
016510250
016510250 BOLT |
016510250 |
US $0.42 |
||
|
021710000
|
021710000
021710000 NUT |
021710000 |
US $0.28 |
||
|
022710000
|
022710000
022710000
NUT
|
022710000 |
— | ||
| replacement | |||||
|
022710000
|
022710000
022810000 NUT |
022810000 |
from US $0.42 |
||
|
023808000
|
023808000
023808000 FLANGE NUT |
023808000 |
US $0.42 |
||
|
031304001
|
031304001
031304001 CLIP |
031304001 |
US $0.57 |
||
|
031306001
|
031306001
031306001 CLIP |
031306001 |
US $0.28 |
||
