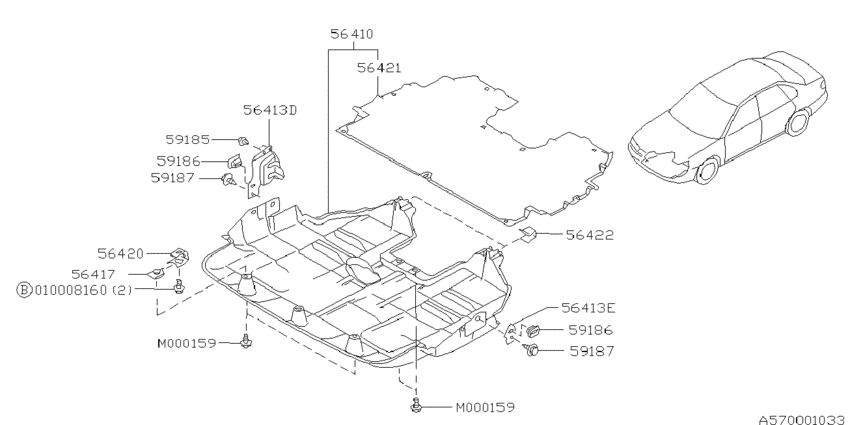

Under guard (W.OBK; 1996-03-01~) Diagram Subaru LEGACY
- Year
- 1996 - 2011
- Sales region
- Europe
- Engine
- EJ20E
- drive
- F4WD
- transmission
- AT
- grade
- LX
- body
- W
- Suspension
- N/S
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
56410
|
56410
56410AC001 UND COVER F COMPL1997-02-01 ~ 1998-11-01; S.F4W.GL +W.F4W.(LX+GL); EC E5 E9 |
56410AC001 |
US $198.24 |
||
|
56410
|
56410
56410AC040 ｱﾝﾀﾞ ｶﾊﾞｰ,ﾌﾛﾝﾄ1997-04-01 ~ 1998-11-01; S.25 +W.(25+OBK) |
56410AC040 |
US $188.33 |
||
|
56413D
|
56413D
56420AC020 ｶﾊﾞｰ,ﾎｲｰﾙ ｴﾌﾟﾛﾝ ﾗｲﾄ1997-04-01 ~ 1998-11-01; W.OBK |
56420AC020 |
US $3.26 |
||
|
56413E
|
56413E
56420AC030 ｶﾊﾞｰ,ﾎｲｰﾙ ｴﾌﾟﾛﾝ ﾚﾌﾄ1997-04-01 ~ 1998-11-01; W.OBK |
56420AC030 |
US $3.26 |
||
|
56417
|
56417
56420AC040 NUT PLATE1997-04-01 ~ 1998-11-01; W.OBK |
56420AC040 |
US $1.84 |
||
|
56420
|
56420
56420AC000 BRKT UNDER COVER1997-04-01 ~ 1998-11-01; W.OBK |
56420AC000 |
US $3.68 |
||
|
56421
|
56421
56421AC000
Insulator-under cover,front
1997-02-01 ~ 1998-11-01; S.F4W.GL +W.F4W.(LX+GL); EC E5 E9 |
56421AC000 |
— | ||
|
56421
|
56421
56421AC010
ｲﾝｼﾕﾚｰﾀ,ｱﾝﾀﾞ ｶﾊﾞｰ ﾌﾛﾝﾄ
1997-04-01 ~ 1998-11-01; S.25 +W.(25+OBK) |
56421AC010 |
— | ||
|
56422
|
56422
56422AC020 CLIP UND COVER1997-04-01 ~ 1998-11-01; S.25 +W.(25+OBK) |
56422AC020 |
from US $1.59 |
||
|
59185
|
59185
59130AA000 SCREW RIVET1997-04-01 ~ 1998-11-01; W.OBK |
59130AA000 |
from US $0.28 |
||
|
59186
|
59186
59131FA000 SCREW GROMMET1997-04-01 ~ 1998-11-01; W.OBK |
59131FA000 |
US $0.42 |
||
|
59186
|
59186
59131FA000 SCREW GROMMET1997-04-01 ~ 1998-11-01; W.OBK |
59131FA000 |
US $0.42 |
||
|
59187
|
59187
59132AA010 TAPPING SCREW1997-04-01 ~ 1998-11-01; W.OBK |
59132AA010 |
from US $0.61 |
||
|
59187
|
59187
59132AA010 TAPPING SCREW1997-04-01 ~ 1998-11-01; W.OBK |
59132AA010 |
from US $0.61 |
||
|
M000159
|
M000159
901000159
ﾌﾗﾝｼﾞ ﾎﾞﾙﾄ
1997-02-01 ~ 1998-11-01; S.F4W.(GL+25) +W.F4W; EC E5 E9 |
901000159 |
— | ||
| replacement | |||||
|
M000159
|
M000159
901000365 BOLT FLG 8X181997-02-01 ~ 1998-11-01; S.F4W.(GL+25) +W.F4W; EC E5 E9 |
901000365 |
from US $0.54 |
||
|
M000159
|
M000159
901000159
ﾌﾗﾝｼﾞ ﾎﾞﾙﾄ
1997-02-01 ~ 1998-11-01; S.F4W.(GL+25) +W.F4W; EC E5 E9 |
901000159 |
— | ||
| replacement | |||||
|
M000159
|
M000159
901000365 BOLT FLG 8X181997-02-01 ~ 1998-11-01; S.F4W.(GL+25) +W.F4W; EC E5 E9 |
901000365 |
from US $0.54 |
||
|
010008160
|
010008160
010008160 FLANGE BOLT-PILOT |
010008160 |
from US $0.20 |
||
