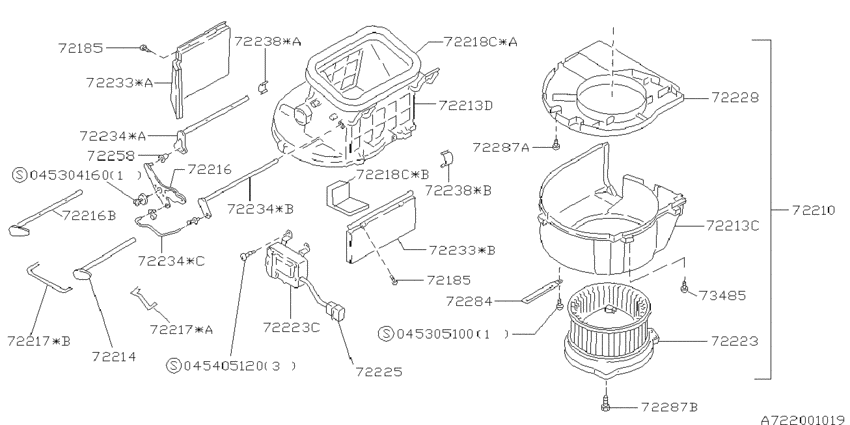

Heater blower (POST; SW.POST; 1993-10-01~) Diagram Subaru LEGACY
- Year
- 1996 - 1998
- Sales region
- U.S.A.
- Engine
- EJ22EZ
- drive
- F4WD
- transmission
- AT
- grade
- POST
- body
- SW
- Suspension
- N/S
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
72185
|
72185
72088GA080 SCREW1994-11-01 ~ 1996-06-01; SW.POST; ND/91310-03081; ND |
72088GA080 |
US $0.14 |
||
|
72185
|
72185
72088GA080 SCREW1994-11-01 ~ 1996-06-01; SW.POST; ND/91310-03081; ND |
72088GA080 |
US $0.14 |
||
|
72210
|
72210
72210AC000 BLOWER ASSY1994-11-01 ~ 1996-06-01; SW.POST; ND |
72210AC000 |
US $372.41 |
||
|
72213C
|
72213C
72054AA060 CASE1994-11-01 ~ 1996-06-01; SW.POST; ND/116251-7432; ND |
72054AA060 |
US $27.61 |
||
|
72213D
|
72213D
72054AA300 CASEUPR1994-11-01 ~ 1996-06-01; SW.POST; ND/116251-8730; ND |
72054AA300 |
US $27.61 |
||
|
72216
|
72216
72044AA020 LEVER1994-11-01 ~ 1996-06-01; SW.POST; ND/017730-5901; ND |
72044AA020 |
US $6.80 |
||
|
72218C
|
72218C
72058AA030 PACKING1994-11-01 ~ 1996-06-01; SW.POST; NO.1; ND/146689-4690 |
72058AA030 |
US $5.38 |
||
|
72218C
|
72218C
72058AA030 PACKING1994-11-01 ~ 1996-06-01; SW.POST; NO.1; ND/146689-4690 |
72058AA030 |
US $5.38 |
||
|
72223
|
72223
72023AA000 MOTOR1994-11-01 ~ 1996-06-01; SW.POST; ND/116340-1550; ND |
72023AA000 |
US $233.64 |
||
|
72223C
|
72223C
72023AA040 SERVOMOTOR1994-11-01 ~ 1996-06-01; SW.POST; ND |
72023AA040 |
US $124.32 |
||
|
72228
|
72228
72049AA180 PLATE1994-11-01 ~ 1996-06-01; SW.POST; ND/116255-3992; ND |
72049AA180 |
US $7.08 |
||
|
72233
|
72233
72042AA090 SHUTTER1994-11-01 ~ 1996-06-01; SW.POST; NO.1; ND |
72042AA090 |
US $9.06 |
||
|
72233
|
72233
72042AA100 SHUTTER1994-11-01 ~ 1996-06-01; SW.POST; NO.2; ND/116640-6280; ND |
72042AA100 |
US $9.06 |
||
|
72233
|
72233
72042AA090 SHUTTER1994-11-01 ~ 1996-06-01; SW.POST; NO.1; ND |
72042AA090 |
US $9.06 |
||
|
72233
|
72233
72042AA100 SHUTTER1994-11-01 ~ 1996-06-01; SW.POST; NO.2; ND/116640-6280; ND |
72042AA100 |
US $9.06 |
||
|
72234
|
72234
72043AA020 SHAFT1994-11-01 ~ 1996-06-01; SW.POST; NO.1; ND/116560-6091; ND |
72043AA020 |
US $4.11 |
||
|
72234
|
72234
72043AA030 SHAFT1994-11-01 ~ 1996-06-01; SW.POST; NO.2; ND/116560-6181; ND |
72043AA030 |
US $2.97 |
||
|
72234
|
72234
72043AA040 SHAFT1994-11-01 ~ 1996-06-01; SW.POST; NO.3; ND/116661-5771; ND |
72043AA040 |
US $1.84 |
||
|
72234
|
72234
72043AA020 SHAFT1994-11-01 ~ 1996-06-01; SW.POST; NO.1; ND/116560-6091; ND |
72043AA020 |
US $4.11 |
||
|
72234
|
72234
72043AA030 SHAFT1994-11-01 ~ 1996-06-01; SW.POST; NO.2; ND/116560-6181; ND |
72043AA030 |
US $2.97 |
||
|
72234
|
72234
72043AA040 SHAFT1994-11-01 ~ 1996-06-01; SW.POST; NO.3; ND/116661-5771; ND |
72043AA040 |
US $1.84 |
||
|
72234
|
72234
72043AA020 SHAFT1994-11-01 ~ 1996-06-01; SW.POST; NO.1; ND/116560-6091; ND |
72043AA020 |
US $4.11 |
||
|
72234
|
72234
72043AA030 SHAFT1994-11-01 ~ 1996-06-01; SW.POST; NO.2; ND/116560-6181; ND |
72043AA030 |
US $2.97 |
||
|
72234
|
72234
72043AA040 SHAFT1994-11-01 ~ 1996-06-01; SW.POST; NO.3; ND/116661-5771; ND |
72043AA040 |
US $1.84 |
||
|
72238
|
72238
772047130
ｽﾌﾟﾘﾝｸﾞ,ﾎｰﾙﾄﾞ ﾌﾞﾛﾜ
1994-11-01 ~ 1996-06-01; SW.POST; NO.2; ND/116632-0120; ND |
772047130 |
— | ||
| replacement | |||||
|
72238
|
72238
72238AG000 SPRING1994-11-01 ~ 1996-06-01; SW.POST; NO.2; ND/116632-0120; ND |
72238AG000 |
US $1.42 |
||
|
72238
|
72238
772047150 ｽﾌﾟﾘﾝｸﾞ,ﾎｰﾙﾄﾞ ﾌﾞﾛﾜ1994-11-01 ~ 1996-06-01; SW.POST; NO.1; ND/116632-0140; ND |
772047150 |
US $1.70 |
||
|
72238
|
72238
772047130
ｽﾌﾟﾘﾝｸﾞ,ﾎｰﾙﾄﾞ ﾌﾞﾛﾜ
1994-11-01 ~ 1996-06-01; SW.POST; NO.2; ND/116632-0120; ND |
772047130 |
— | ||
| replacement | |||||
|
72238
|
72238
72238AG000 SPRING1994-11-01 ~ 1996-06-01; SW.POST; NO.2; ND/116632-0120; ND |
72238AG000 |
US $1.42 |
||
|
72238
|
72238
772047150 ｽﾌﾟﾘﾝｸﾞ,ﾎｰﾙﾄﾞ ﾌﾞﾛﾜ1994-11-01 ~ 1996-06-01; SW.POST; NO.1; ND/116632-0140; ND |
772047150 |
US $1.70 |
||
|
72258
|
72258
72062AA030 BUSH1994-11-01 ~ 1996-06-01; SW.POST; ND/146625-2630 |
72062AA030 |
US $2.27 |
||
|
72284
|
72284
72057AA020 CLAMP1994-11-01 ~ 1996-06-01; SW.POST; ND/146691-2790 |
72057AA020 |
US $1.70 |
||
|
72287A
|
72287A
72094AA100 SCREW1994-11-01 ~ 1996-06-01; SW.POST; ND/90910-04121; ND |
72094AA100 |
US $0.14 |
||
|
72287B
|
72287B
72094AA050 TAPPING SCREW1994-11-01 ~ 1996-06-01; SW.POST; ND/949001-2990; ND |
72094AA050 |
US $0.42 |
||
|
045304160
|
045304160
045304160 TAPPING SCREW |
045304160 |
from US $0.07 |
||
|
045305100
|
045305100
045305100 TAPPING SCREW |
045305100 |
US $0.14 |
||
|
045405120
|
045405120
045405120 TAPPING SCREW |
045405120 |
US $0.14 |
||
