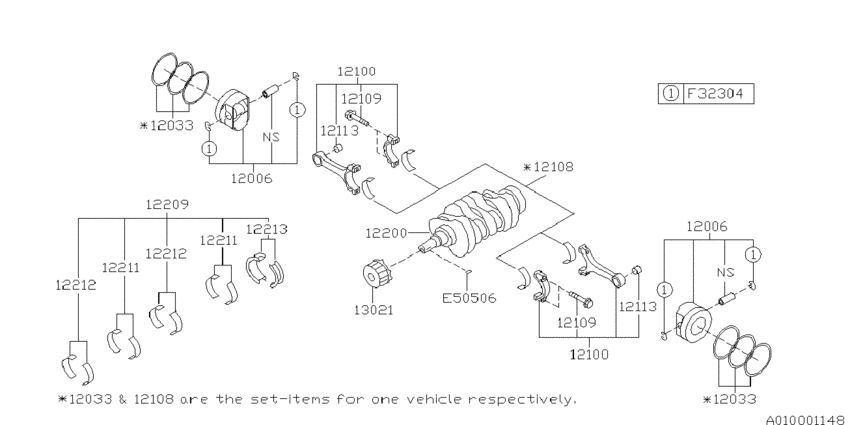

Piston & crankshaft (255; 2003-11-01~) Diagram Subaru LEGACY
- Year
- 2003 - 2007
- Sales region
- U.S.A.
- Engine
- 255
- drive
- 4W
- transmission
- 5AT
- grade
- 25GT
- body
- S
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
12006
|
12006
12006AC390 Piston Setstd A2003-11-01 ~ 2005-05-01; (S+W).25GT.255 +25GTLTD.255; STD GRADE A |
12006AC390 |
from US $72.63 |
||
|
12006
|
12006
12006AC400 Piston Setstd B2003-11-01 ~ 2005-05-01; (S+W).25GT.255 +25GTLTD.255; STD GRADE B |
12006AC400 |
US $88.78 |
||
|
12006
|
12006
12006AC410 Piston Setos0252003-11-01 ~ 2005-05-01; (S+W).25GT.255 +25GTLTD.255; OS 0.25 |
12006AC410 |
from US $72.87 |
||
|
12006
|
12006
12006AC420 Piston Setos0502003-11-01 ~ 2005-05-01; (S+W).25GT.255 +25GTLTD.255; OS 0.50 |
12006AC420 |
from US $72.30 |
||
|
12006
|
12006
12006AC390 Piston Setstd A2003-11-01 ~ 2005-05-01; (S+W).25GT.255 +25GTLTD.255; STD GRADE A |
12006AC390 |
from US $72.63 |
||
|
12006
|
12006
12006AC400 Piston Setstd B2003-11-01 ~ 2005-05-01; (S+W).25GT.255 +25GTLTD.255; STD GRADE B |
12006AC400 |
US $88.78 |
||
|
12006
|
12006
12006AC410 Piston Setos0252003-11-01 ~ 2005-05-01; (S+W).25GT.255 +25GTLTD.255; OS 0.25 |
12006AC410 |
from US $72.87 |
||
|
12006
|
12006
12006AC420 Piston Setos0502003-11-01 ~ 2005-05-01; (S+W).25GT.255 +25GTLTD.255; OS 0.50 |
12006AC420 |
from US $72.30 |
||
|
12033
|
12033
12033AB340 Ring Setpiston2003-11-01 ~ 2005-05-01; 253 +(S+W).25GT.255 +25GTLTD.255; STD |
12033AB340 |
from US $127.34 |
||
|
12033
|
12033
12033AB350 Ring Setpiston2003-11-01 ~ 2005-05-01; 253 +(S+W).25GT.255 +25GTLTD.255; OS 0.25 |
12033AB350 |
from US $122.60 |
||
|
12033
|
12033
12033AB360 Ring Setpiston2003-11-01 ~ 2005-05-01; 253 +(S+W).25GT.255 +25GTLTD.255; OS 0.50 |
12033AB360 |
from US $143.58 |
||
|
12033
|
12033
12033AB340 Ring Setpiston2003-11-01 ~ 2005-05-01; 253 +(S+W).25GT.255 +25GTLTD.255; STD |
12033AB340 |
from US $127.34 |
||
|
12033
|
12033
12033AB350 Ring Setpiston2003-11-01 ~ 2005-05-01; 253 +(S+W).25GT.255 +25GTLTD.255; OS 0.25 |
12033AB350 |
from US $122.60 |
||
|
12033
|
12033
12033AB360 Ring Setpiston2003-11-01 ~ 2005-05-01; 253 +(S+W).25GT.255 +25GTLTD.255; OS 0.50 |
12033AB360 |
from US $143.58 |
||
|
12100
|
12100
12100AA180 ROD ASSYCONN2003-11-01 ~ 2005-05-01; (S+W).25GT.255 +25GTLTD.255 |
12100AA180 |
US $91.05 |
||
|
12100
|
12100
12100AA180 ROD ASSYCONN2003-11-01 ~ 2005-05-01; (S+W).25GT.255 +25GTLTD.255 |
12100AA180 |
US $91.05 |
||
|
12108
|
12108
12108AA730 Brg Setconn Rod2003-11-01 ~ 2005-05-01; (S+W).25GT.255 +25GTLTD.255; STD |
12108AA730 |
from US $177.45 |
||
|
12108
|
12108
12108AA780 Brg Setconn Rod2003-11-01 ~ 2005-05-01; (S+W).25GT.255 +25GTLTD.255; US 0.03 |
12108AA780 |
US $202.49 |
||
|
12108
|
12108
12108AA790 BRG SETCONN ROD2003-11-01 ~ 2005-05-01; (S+W).25GT.255 +25GTLTD.255; US 0.05 |
12108AA790 |
US $202.49 |
||
|
12108
|
12108
12108AA800 Bearing-Connecting Rod2003-11-01 ~ 2005-05-01; (S+W).25GT.255 +25GTLTD.255; US 0.25 |
12108AA800 |
US $202.49 |
||
|
12109
|
12109
12109AA062 BOLTCONN ROD2003-11-01 ~ 2005-05-01; (S+W).25GT.255 +25GTLTD.255 +30D |
12109AA062 |
from US $1.22 |
||
|
12109
|
12109
12109AA062 BOLTCONN ROD2003-11-01 ~ 2005-05-01; (S+W).25GT.255 +25GTLTD.255 +30D |
12109AA062 |
from US $1.22 |
||
|
12113
|
12113
12113AA091 BUSHCONN ROD2003-11-01 ~ 2005-05-01; (S+W).25GT.255 +25GTLTD.255 |
12113AA091 |
US $6.66 |
||
|
12113
|
12113
12113AA091 BUSHCONN ROD2003-11-01 ~ 2005-05-01; (S+W).25GT.255 +25GTLTD.255 |
12113AA091 |
US $6.66 |
||
|
12200
|
12200
12200AA260 CRANKSHAFT COMPL2003-11-01 ~ 2004-05-01; (S+W).25GT.255 +25GTLTD.255 |
12200AA260 |
US $733.49 |
||
|
12209
|
12209
12209AA360 BEARING SET-CRANKSHAFT (STD)2003-11-01 ~ 2005-05-01; 253 +(S+W).25GT.255 +25GTLTD.255; STD |
12209AA360 |
from US $129.43 |
||
|
12209
|
12209
12209AA370 Brg Setcrankshaft2003-11-01 ~ 2005-05-01; 253 +(S+W).25GT.255 +25GTLTD.255; US 0.03 |
12209AA370 |
from US $144.65 |
||
|
12209
|
12209
12209AA380 Brg Setcrankshaft2003-11-01 ~ 2005-05-01; 253 +(S+W).25GT.255 +25GTLTD.255; US 0.05 |
12209AA380 |
from US $144.65 |
||
|
12209
|
12209
12209AA390 Brg Setcrankshaft2003-11-01 ~ 2005-05-01; 253 +(S+W).25GT.255 +25GTLTD.255; US 0.25 |
12209AA390 |
from US $143.47 |
||
|
12211
|
12211
12211AA240 Brg Setmain2003-11-01 ~ 2005-05-01; 253 +(S+W).25GT.255 +25GTLTD.255; STD |
12211AA240 |
from US $13.76 |
||
|
12211
|
12211
12211AA250 Brg Setmain2003-11-01 ~ 2005-05-01; 253 +(S+W).25GT.255 +25GTLTD.255; US 0.03 |
12211AA250 |
from US $13.76 |
||
|
12211
|
12211
12211AA260 BRG SETMAIN2003-11-01 ~ 2005-05-01; 253 +(S+W).25GT.255 +25GTLTD.255; US 0.05 |
12211AA260 |
from US $10.53 |
||
|
12211
|
12211
12211AA270 Brg Setmain2003-11-01 ~ 2005-05-01; 253 +(S+W).25GT.255 +25GTLTD.255; US 0.25 |
12211AA270 |
from US $13.76 |
||
|
12211
|
12211
12211AA240 Brg Setmain2003-11-01 ~ 2005-05-01; 253 +(S+W).25GT.255 +25GTLTD.255; STD |
12211AA240 |
from US $13.76 |
||
|
12211
|
12211
12211AA250 Brg Setmain2003-11-01 ~ 2005-05-01; 253 +(S+W).25GT.255 +25GTLTD.255; US 0.03 |
12211AA250 |
from US $13.76 |
||
|
12211
|
12211
12211AA260 BRG SETMAIN2003-11-01 ~ 2005-05-01; 253 +(S+W).25GT.255 +25GTLTD.255; US 0.05 |
12211AA260 |
from US $10.53 |
||
|
12211
|
12211
12211AA270 Brg Setmain2003-11-01 ~ 2005-05-01; 253 +(S+W).25GT.255 +25GTLTD.255; US 0.25 |
12211AA270 |
from US $13.76 |
||
|
12212
|
12212
12212AA280 Brg Setmain No22003-11-01 ~ 2005-05-01; 253 +(S+W).25GT.255 +25GTLTD.255; STD |
12212AA280 |
from US $19.50 |
||
|
12212
|
12212
12212AA290 ﾍﾞｱﾘﾝｸﾞ ｾﾂﾄ,ﾒｰﾝ NO.22003-11-01 ~ 2005-05-01; 253 +(S+W).25GT.255 +25GTLTD.255; US 0.03 |
12212AA290 |
US $33.70 |
||
|
12212
|
12212
12212AA300 Brg Setmain No22003-11-01 ~ 2005-05-01; 253 +(S+W).25GT.255 +25GTLTD.255; US 0.05 |
12212AA300 |
from US $14.71 |
||
|
12212
|
12212
12212AA310 Brg Setmain2003-11-01 ~ 2005-05-01; 253 +(S+W).25GT.255 +25GTLTD.255; US 0.25 |
12212AA310 |
from US $14.54 |
||
|
12212
|
12212
12212AA280 Brg Setmain No22003-11-01 ~ 2005-05-01; 253 +(S+W).25GT.255 +25GTLTD.255; STD |
12212AA280 |
from US $19.50 |
||
|
12212
|
12212
12212AA290 ﾍﾞｱﾘﾝｸﾞ ｾﾂﾄ,ﾒｰﾝ NO.22003-11-01 ~ 2005-05-01; 253 +(S+W).25GT.255 +25GTLTD.255; US 0.03 |
12212AA290 |
US $33.70 |
||
|
12212
|
12212
12212AA300 Brg Setmain No22003-11-01 ~ 2005-05-01; 253 +(S+W).25GT.255 +25GTLTD.255; US 0.05 |
12212AA300 |
from US $14.71 |
||
|
12212
|
12212
12212AA310 Brg Setmain2003-11-01 ~ 2005-05-01; 253 +(S+W).25GT.255 +25GTLTD.255; US 0.25 |
12212AA310 |
from US $14.54 |
||
|
12213
|
12213
12213AA380 BRG SETMAIN CTR2003-11-01 ~ 2005-05-01; 253 +(S+W).25GT.255 +25GTLTD.255; STD |
12213AA380 |
from US $64.14 |
||
|
12213
|
12213
12213AA390 BRG SETMAIN CTR2003-11-01 ~ 2005-05-01; 253 +(S+W).25GT.255 +25GTLTD.255; US 0.03 |
12213AA390 |
from US $64.55 |
||
|
12213
|
12213
12213AA400 BRG SETMAIN CTR2003-11-01 ~ 2005-05-01; 253 +(S+W).25GT.255 +25GTLTD.255; US 0.05 |
12213AA400 |
from US $48.64 |
||
|
12213
|
12213
12213AA410 BRG SETMAIN CTR2003-11-01 ~ 2005-05-01; 253 +(S+W).25GT.255 +25GTLTD.255; US 0.25 |
12213AA410 |
from US $64.55 |
||
|
13021
|
13021
13021AA141 SPROCKETCRANKSFT2003-11-01 ~ 2005-05-01; (S+W).25GT.255 +25GTLTD.255 |
13021AA141 |
from US $10.36 |
||
|
E50506
|
E50506
804505060 WDF KEY2003-11-01 ~ 2005-05-01; 253 +(S+W).25GT.255 +25GTLTD.255 +30D; 5X6.5X16 |
804505060 |
from US $0.74 |
||
|
F32304
|
F32304
805323040 CIRCLIPINR 232003-11-01 ~ 2005-05-01; 253 +(S+W).25GT.255 +25GTLTD.255 |
805323040 |
from US $0.26 |
